Self Regulated Heating Trace for Pipes and Tanks Keep Warm

 Self-regulating Electric Heating Cable

Functions:

1.Automatically adjusts heat output in response to increasing or decreasing pipe temperature
2. Can be cut to length with no wastage
3.Will not overheat or burnout, even when overlapped
4.Full range of controls and accessories
5.Approved for use in non-hazardous, hazardous and corrosive environments
6.Ideal for fitting to instrument lines and small diameter pipes
7.Available for 110V,220V,380V
8.Possible to consume less electricity because it applied PTC characteristic
9.Easy to install and maintenance

How the Self-regulating Electric Heating Cables Work?

Self Regulating Heating Cables provide the most versatility in heat trace designs and applications. Constructed of a semiconductive heater matrix extruded between parallel bus wires, a self- regulating cable adjusts its output to independently respond to ambient temperatures all along its length.  As temperatures increase, the heater’s resistance increases which lower the output wattage. Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. So it is no need thermostat in some applications.it will never overheat or burnout even when wrapped by itself (overlapped).Also can be cut to any length.

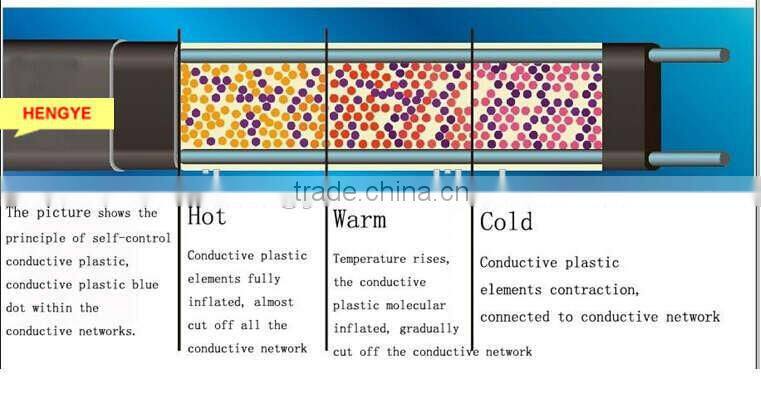

Inner Diagram

Technical Parameters:

Maximum Temperature: 85°C(185f)

Maximum Permissible 85°C(185f)

Minimum Installtion Temperature -40°C

Power Supply 110-120VAC,220-277VAC

Temperature Classification up to 31W/m T6(85°C),40W/m and/or 277V T4 (135°C)

Maximum Resistance of Protective Braiding 18.2 Ohm/km

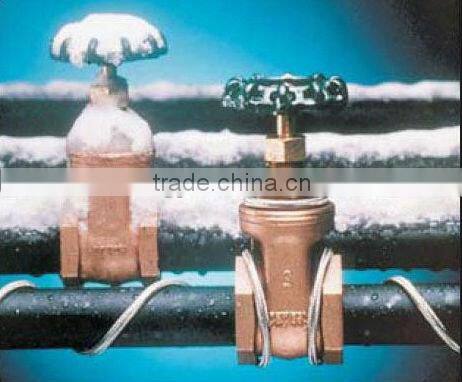

Installation Photos

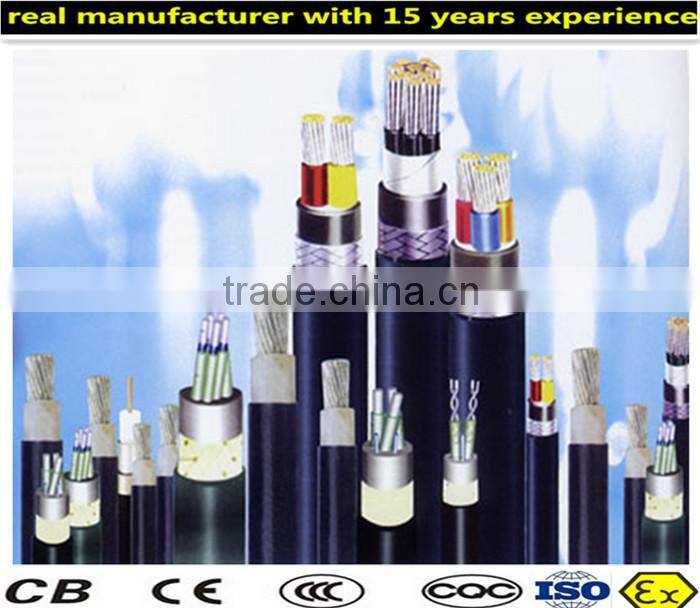

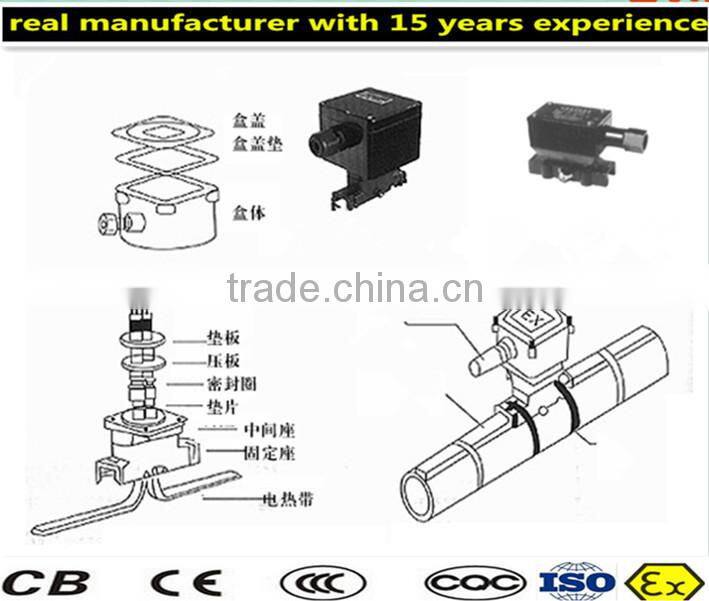

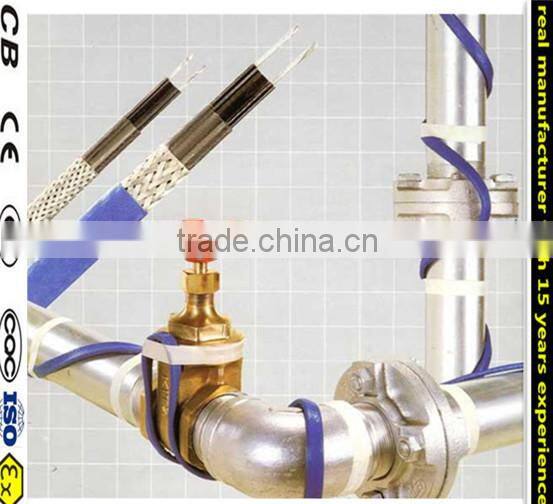

Product Photos

Wuxi Hengye Electrical Heater History
Established in 2001, Wuxi Hengye Electrical Heater Equipment focus on manufacturing the exposion-proof electric equipments and elements.

Relying on our excellent quality, We have got a lot of certificates, such as 3C , CE, ISO9001, EX, ROHS, 14000 Environment certification,18000 occupational health and safety system certification.

We have nearly 40 patents which honored us the High-tech enterprise of Jiangsu province.
