Horizontal Aluminium Sliding Door Profile Made in China

FOB Price

US$ 2.5 - 3.5 / Kilogram

300 Kilograms(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Grade	6000 Series
Temper	T3-T8	Application	Other, Door & Window, wardrobe, sliding door, closet
Shape	Other, H - Profile	Alloy Or Not	Is Alloy
Model Number	XY-PPG18-001	Brand Name	XINYIN ALUMINUM

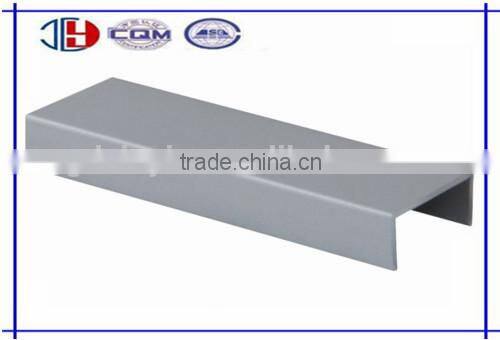

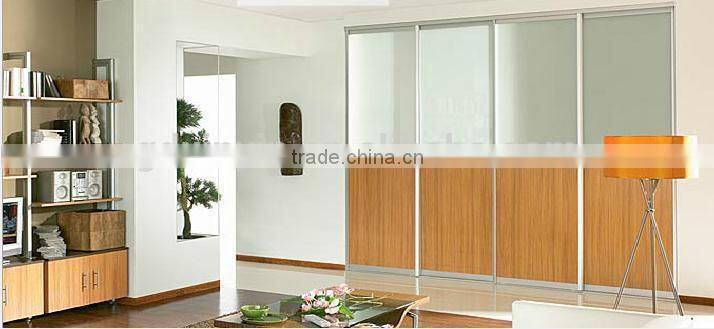

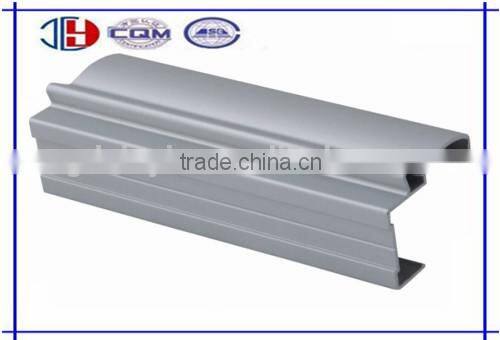

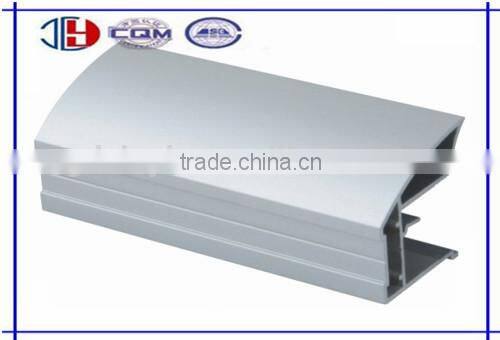

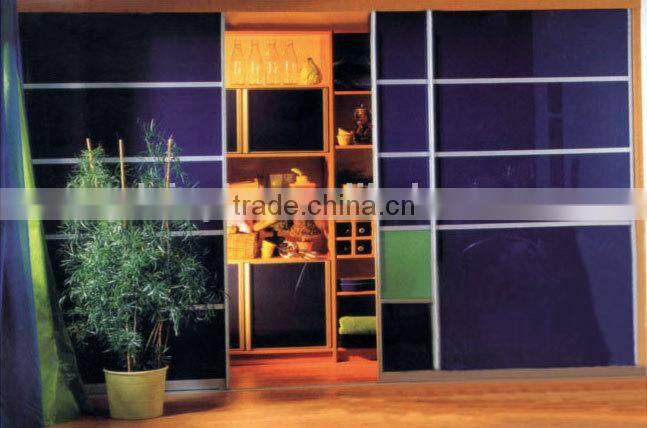

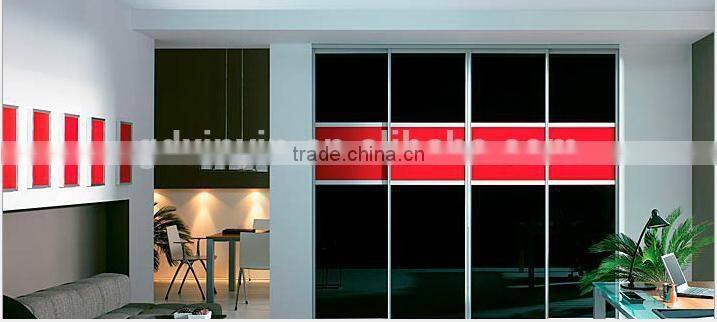

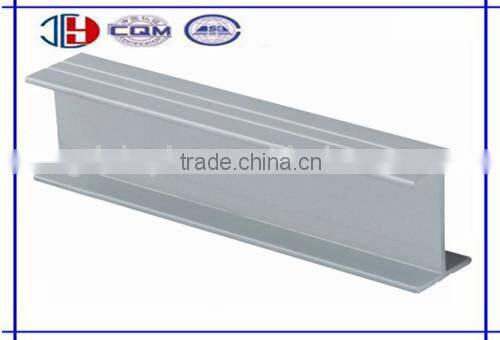

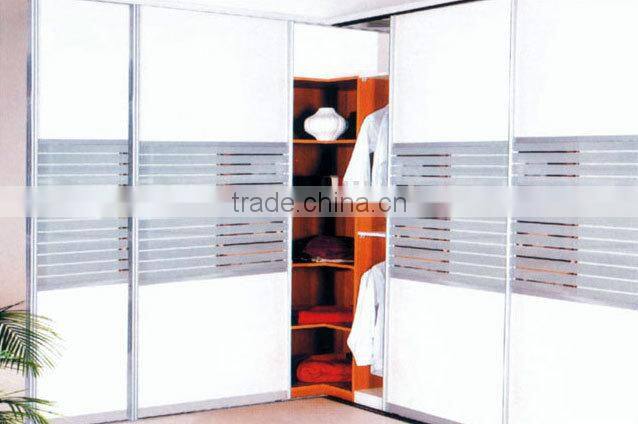

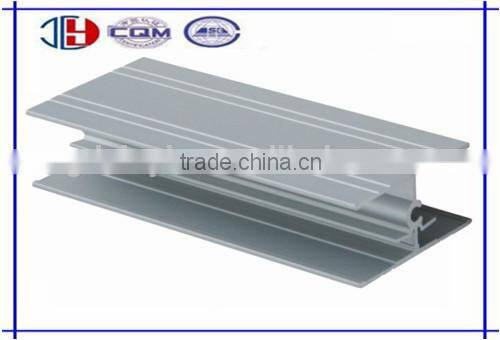

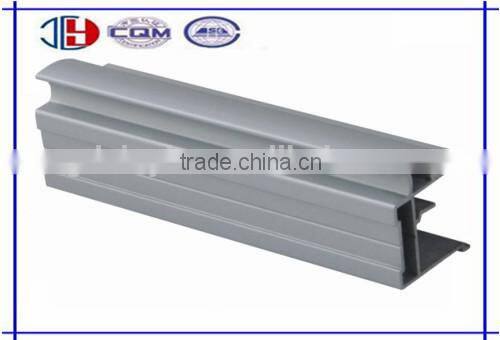

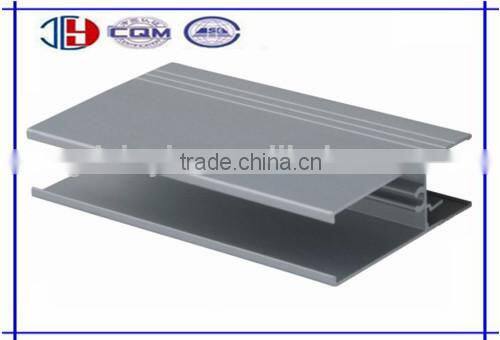

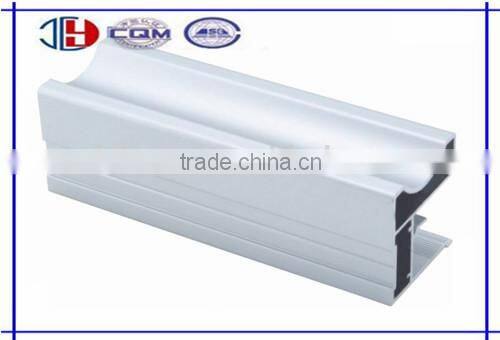

Horizontal aluminium sliding door profile made in China

Factory Information:

Factory Establishment:	Established in 2008 year
Sister Factory:	XINHE ALUMINUM
Annual Production Capacity:	Over 100,000 tons
Product Quality Grade:	high-precision level of GB5237 standard
Certification:	ISO9001:2008

Product Information:

Colors:	silver, champagne, gold, bronze, white, black, olive, green, blue, red, grey, iron grey, etc.
Surface treatment:	mill finish, sandblasting, anodizing, powder coating (spraying), electrophoresis, anodized polishing, mechanical polishing, brushing, plastic insulation, spraying wood grain, electrophoresis wood grain, PVDF coating, etc.
Length:	Any length as per customer's request, anodized maximum length is 6.7m
Thickness:	0.9mm (+/-0.1mm) or customized
Maximum Extrusion Size:	300mm x 185mm
Price:	2500USD-3500USD/TON
Packaging:	protective film, pearl cotton / fleece, shrink film, poly bag, kraft paper, or as per customer's request
Payment Term:	By T/T, 30% deposit payment before production, 70% balance payment before delivery.
Delivery Time:	20 to 30 days after receiving 30% deposit payment

Production Equipment:

Machine Name	Quantity	Country of Origin
environmentally friendly renewable fuel reflection casting furnaces and hot top type horizontal casting production equipment with high thermal efficiency	8	England
extrusion production lines	46	Taiwan and Japan
powder coating production lines	3	Switzerland
anodized color electrophoretic coating production lines	4	Japan
advanced sandblasting machines	8	China
advanced brushing machines and mechanical polishing machines	a dozen	China
large scale advanced anodized polishing production lines	2	China
crystal-phoresis production line	1	China
fluorocarbon coating production line	1	China
metal heat transfer printing wood grain production lines	10	Italy
thermal insulation plastic inserting machines	2	China
thermal insulation plastic infusion machine	1	China

General Chemical Composition of Alloy:

Mechanical Properties of Sections under Room Temperature:

(Not less than) (≥) Tensile strength test Hardness test

Alloy	State	Tensile strength Mpa	Non-proportional stretching stress	Stretching rate %	Sample thickness mm	HV	HW
6061	T4	180	110	16	- -	- -	- -
6061	T6	265	245	8	- -	- -	- -
6063	T5	160	110	8	0.8	58	8
6063	T6	205	180	8	- -	-	-
6063A	T5	200	160	5	0.8	65	10
6063A	T5	190	150	5	0.8	65	10
6063A	T6	230	190	5	- -	- -	- -
6063A	T6	220	180	4	- -	- -	- -

Anodic Oxidation of Aluminium Profile Finishing:

Class of thickness	Minimum average film thickness / μm	Minimum local film thickness / μm
AA10	≥ 10	≥ 8
AA15	≥ 15	≥ 12
AA20	≥ 20	≥ 16
AA25	- -	≥ 25

Note: Generally, our anodized aluminium profiles are produced as per grade AA10, or according to client's special request.

The comparison table of Powder Coating (Spraying) of quality level between European Qualicoat standard and Xinyin standard:

Item	Test	Qualicoat Standard	Xinyin Standard
Gloss	ISO2813 GB/T9754	L-G: +5, M-G: +7, H-G: +10	L-G: +5, M- G: +7, H-G: +10
Thickness of coating	ISO2360 GB/T4957	Average of five points is not less than 60μm.	Average of five points is not less than 60μm.
Adhesion	ISO2409 GB/T9286	up to grade 0	up to grade 0
Erichsen cupping test	ISO1520 GB/T9573	5 mm	6 mm, no crack
Impact test	ASTMD2794 GB/T1732	2.5 NM	5.5 NM, no crack
Hardness test	ISO2815 GB/T6739	at least up to 80	not less than H
Resistance to cracking on bending	ISO1519 GB/T6742	5 mm	5.5 mm, no crack
Mortar resistance test	ASTMC-207 GB/T1594	The mortar must be easy to be removed without leaving any residues.	No removal, no visible change!
Acid test	AAMA 2603	Corrosion from lineation within 0.5mm	No air bubble, goffer or removal, etc.!
Salt spray resistance test	ISO9227 GB/T10125	1000 hrs	1000 hrs; Corrosion from lineation within 2mm
Resistance to boiling water test	AAMA 2603	1 hrs	1 hrs; No any defect, such as air bubble, goffer, water spot or removal, etc.
Artificial accelerated aging test	DIN553231 Suntest GB/T1865-97	1000 hrs; The loss of gloss must be not more than 50%.	Good!
Moisture resistance test	DIN50017 GB1740	1000 hrs	Good!
Solvent resistance	AAMA 2603	- -	No any defect, such as air bubble, goffer, water spot or removal, etc.
Color difference test	- -	- -	E*ab ≤ 1.5

Thermal Insulation Aluminium Profile:

Vertical shearing characteristic value N/mm; Horizontal pull characteristic value N/mm

Test item	Complex mode	Room temp.	Low temp.	High temp.	Room temp.	Low temp.	High temp.	Thermal insulation deformation average value
Vertical shearing test	Stripe	≥ 24	≥ 24	≥ 24	≥ 24	- -	- -	- -
Horizontal pull test	Injection	≥ 24	≥ 24	≥ 24	≥ 24	≥ 24	≥ 24	- -
High temp. lasting burthen test	Stripe	- -	- -	- -	- -	≥ 24	≥ 24	≤ 0.6
Hot recurrence test	Injection	≥ 24	- -	- -	- -	- -	- -	≤ 0.6
