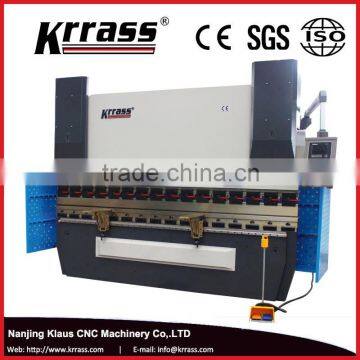

Delem cnc DA52S plate bending machine for steel bending

Delem cnc DA52S plate bending machine for steel bending

1. Standard Equipment:

• Delem DA52S CNC control System
• Powered Depth Y1-axis&Y2-axis&X-axis&V-axis&Back gauge X-axis (X-axis 0.01mm/Y1/Y2-axis 0.01mm)
• Servo motor control block
• HIWIN Ball screws & Polished rod with 0,01mm accuracy
• Plate Support Arms
• Germany Bosch-Rexroth Hydraulic
• Germany EMB Tubing connector
• Germany Siemens Main Motor
• Tele mecanique/Schneider Electrics
• Hydraulic &Electrical overload protection
• Top and Bottom Tooling(86°,R0.6mm)
• Safety Standards(2006/42/EC):

2. Safety Equipment:

1.EN 12622:2009 + A1:2013          2.EN ISO 12100:2010      3.EN 60204-1:2006+A1:2009

• Front finger Protection(Safety light curtain)
• South Korea Kacon Foot Switch(Level 4 of safety)
• Back metal safe fence with CE standards
• Safety relay with Monitor the pedal switch and safety protection

3. Delem DA52S   CNC Control system:

• The compact DA-52s is a complete CNC solution for conventional as well as synchronised press brakes.

• The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.

• Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.
• The unique ‘hotkey’ navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.

• Angle programming of the Y-axis, crowning function and pressure control are standard on board.
  USB interfacing enables the use of memory sticks as a fast product and tool backup medium.

DA-52S features

• Quick, one page programming
• Hotkey navigation
• 7” VGA colour TFT
• Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
• Crowning control
• Tool/material/product library
• USB, peripheral interfacing
• Advanced Y-axis control algorithms for closed loop as well as open loop valves
