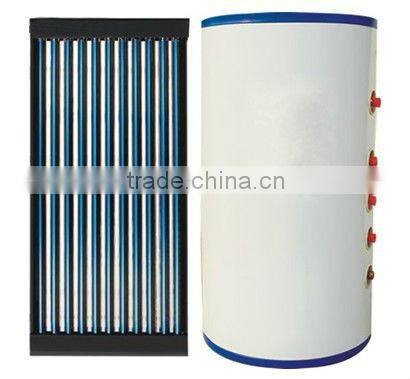

Split Pressure Solar Water Heater Solar Keymark CE

FOB Price

US$ 590 - 1,600 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

energy economizer

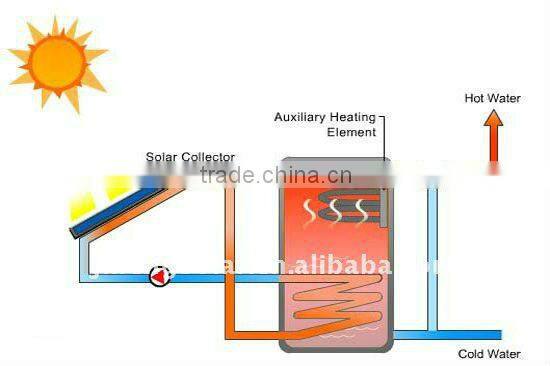

working priciple

when the temperature of the heat collector reaches the set value, the controller shall start the circulation pump automatically.

the circulation pump makes heat-conducting liquid circulate automatically.

The heat-conducting liquid transfers heat to water by the heat exchanger in the water tank.

In case the temperature of the circulation pump does not reach the set value, the circulation pump shall be stop working automatically.

In case the temperature of the water tank does not reach Tmax, then start the electrical heater.

Feature:

Equiping with electric heater setting, safty valve and magnesium bar.

Closed-loop system with pressure bearing of 0.6Mpa.

Intelligent controller automatically control whole sytem working.
carrying out installation of separation according to fabricating yard.

Mould:	JNBP	Capacity	100L/150L/200L/250L/300L/400L/500L
Inner tank:	1.2-2.0mmstainless steel (SUS304/2B)	Accessories:	Electric heater, safty valve, magnisium bar
Outer tank:	0.5mm color steel	Quality Certificate:	ISO9001:2000, CE
Headbox& frame:	2..0mm alluminium alloy	Warranty:	5 years for water tank
Insulation layer:	polyurethane foaming	MOQ:	1 set
Max. pressure	0.6MPa	Hail resistance	25mm
Working Pressure:	within 15 days for full container	Payment:	T/T or L/C
