KRRASS Beautiful Cnc 3000mm Aluminum Composite Panel Grooving Machine

Advantages: conventional machine is clamps hold the sheet metal moving over the working table, so the sheet surface is very easy to be scratched. Now this machine’s biggest advantage is sheet metal fixed, has no relative motion. the work piece is protected perfectly, especially for use in mirror stainless steel plates on decoration, and so that the machine has a high processing speed.

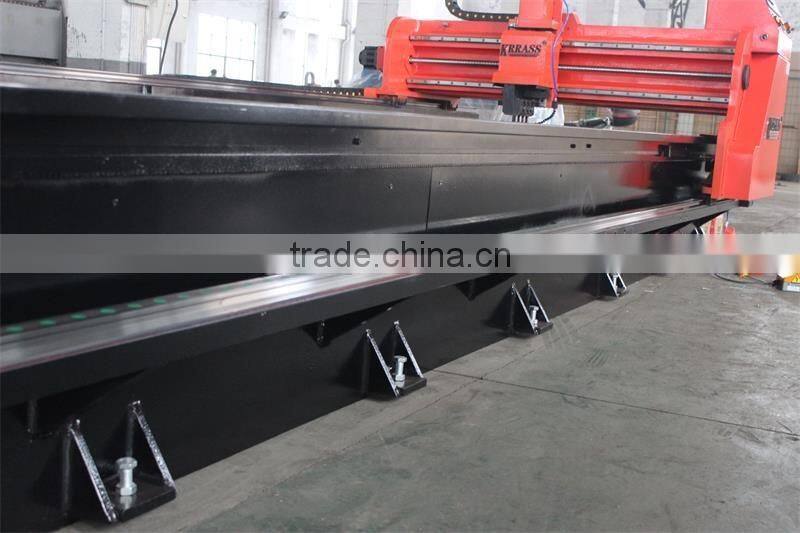

Frame structure with the overall table, mobile gantry beam also welded frame structure, the implementation of the overall welding, tempering after welding the whole, all to ensure the overall good rigidity, have to ensure that the future use is not deformed.

work: Overall table frame fixed and mobile gantry beam for cutting slotting, grooving speed frequency control, smooth and efficient cutting process, the cutting surface quality is good.

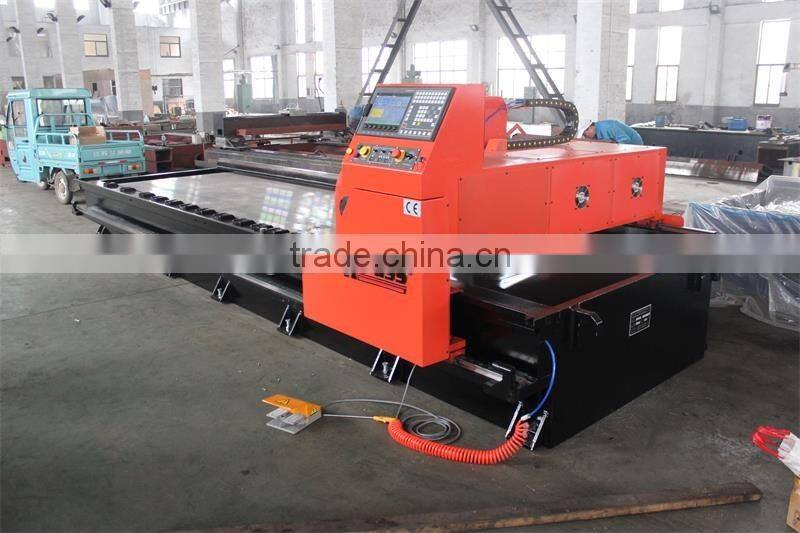

numerical control systems, slot machine adopts PLC + touch screen CNC system

A color touch screen controller adopts special software, Chinese / English operation menu, simple and straightforward. Manual, automatic two working modes to choose from, fully meet the various processing requirements. Man-machine dialogue interface, easy to learn and operate, convenient processing size input, process real-time display, error alarm will automatically

Alone the working table, there is hydraulic clamps. According to different material or thickness, clamping force can be adjusted.

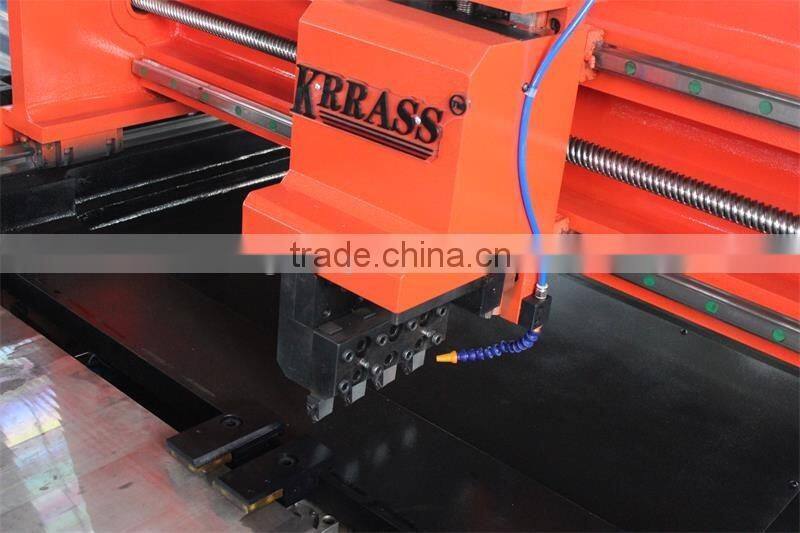

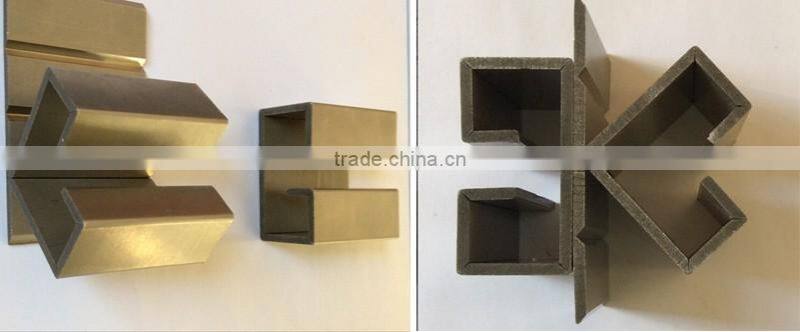

the machine uses three alloy knife while processing methods, thus cutting is more evenly, work piece deformation will be reduced, tool life will be longer, production costs cost will be lower.

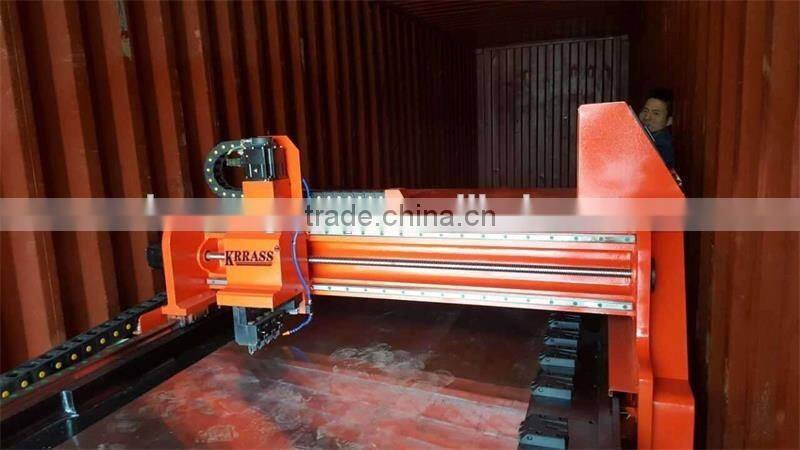

HYRAULIC VGROOVING MACHINE:

manker sure high strengthandhighrigiditywithoutdeformation

WORKING MODE:

The whole table frame is immobilized, just gantry blade adapter movew to slot with ariable frequency speed,effective slotting process,and high-quality surface.

CNC CONTROL SYSTEM:PLS&TOUCHING SCREEN:

Colorful touch screen,special sofrware, convenient processing dimension input,processing instantly displaying and error automatic alarming.

TRANSMISSION PARTS:

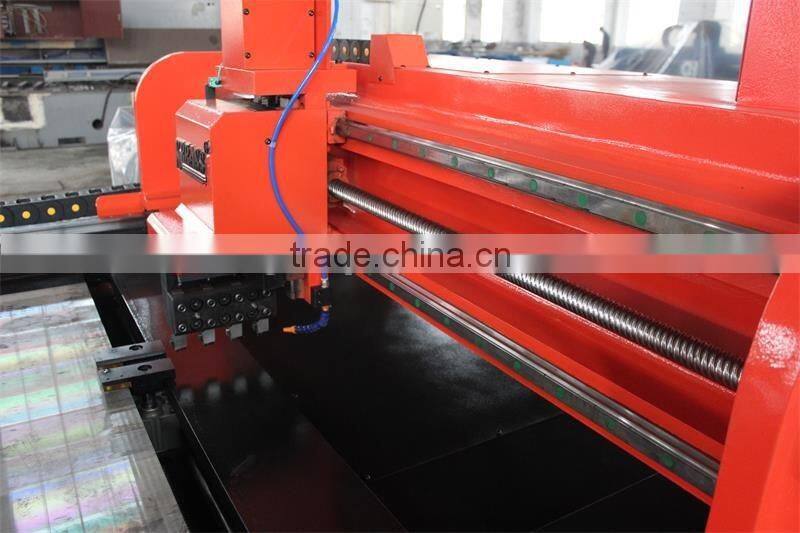

X,Y1,Y2and Z4 axis control,high positing accuracy,Y1 and Y2 synvhronized by
PLC.X axle driven by inverter and HIWIN brand ball screw,low noise and high accuracy.

CLAMPING DEVICE:

With adjustable hydraulic system,Side clamping unit and top following pressing device make sure enough pressure to hold various thickness sheet.

HIGH EFFICIENCE:

(1)Three alloy blades simultaneous process at the same time ,which makes even cutting rate,less workpiece deformation,longer blades service life,and lower producting cosr.
(2)Adjustable working speed.
(3)Square blade can be used four times with conventent and prompt replacing.

Model

KRS-3212

KRS-4012

KRS-6012

Machining Capacity

Plate

Material

STS304&Q345

Length

3200mm

4000mm

6000mm

Width

1220mm

Thickness

0.6mm-4mm

Minimum edge

8mm

CNC Specifics

Control Type

Axis CNC control(X Y1 Y2 Z)

Display

10 inches high definition color LCD

Memory Capacity

20group,112piece per group(available to add SD card)

Working System

Ball screw/Linear guide rail/Gear rack

Machining Sped

X Axis Forward-Cutting

50m/min(Servo ,available to adjust grooving speed)

X Axis Backward

60m/min

Knife rest(Y1axis)and Y2 Axis

20m/min

Z-Axis UP-Down

20m/min

Machining Precision

Y1 Precision

0.01mm

Y1Stoke

1250mm

Y1precision

0.01mm

Z stoke

50mm

Driving Mode

X-Axis

4.5KW SEW Converter Motor

X-Axis

0.85KW YaskawaServo Motor

Y1 Axis

0.85KW YaskawaServo Motor

Y2 Axis

0.85KW YaskawaServo Motor

clamping device

pneumatic circuit

0.3-0.6Mpa

boundary dimension

Lenght

5200mm

6000mm

8000mm

Width

2380mm

Highth

1580mm

Weight

6800kg

7800kg

12000kg

Table Flatness

800mm
