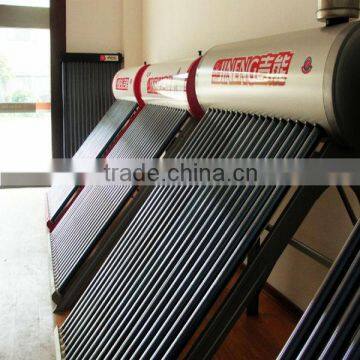

Evacuated Tube Solar Hot Water Heater

FOB Price

US$ 100 - 300 / Set

15 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Evacuated Tube, DIY Solar Hot Water Heater	Pressure	Unpressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Other, Freestanding, Flat/ground Roof
Housing Material	Plastic	Capacity	180, 100-300L
Place of Origin	Zhejiang, China	Brand Name	JINENG
Model Number	JNNP

Evacuated Tube Solar Hot Water Heater

1. How It Works?

How a Non Pressure DIY Solar Hot Water Heater Works?

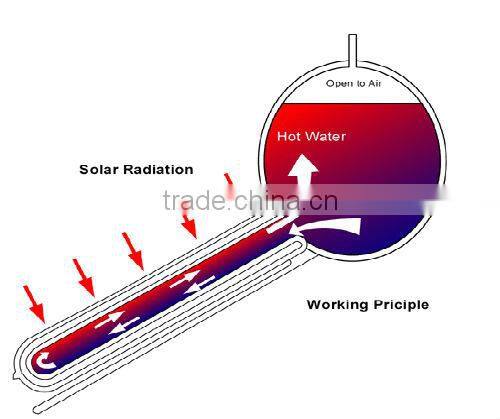

Here is the working principle chart help us understand how it works:

One of the most favorite type on the international market;
Scientifically and specially designed, easy to install and operate;
Feed water automatically and ensure the outer water as stable temperature, it will always provide you hot water.

2. What’s the Technical Info?

Here is the technical information of a non pressurized DIY solar hot water heater:

Inner tank:	SUS 304-2B/0.4mm
Outer tank:	Galvanized steel/0.4mm
Insulation Layer:	High density polyurethane foam 50mm
Vacuum tube:	58*1800mm AL-N-AL coating
Bracket:	Galvanized steel 1.5mm
Max working pressure:	0 Bar
Capacity:	100-300 Liters

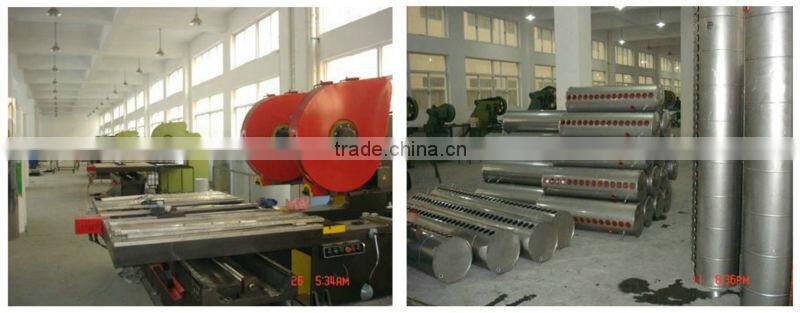

3. How We Produce It?

We adapt all-automatic machines to ensure the product quality and work efficiency, here is part of our working process:

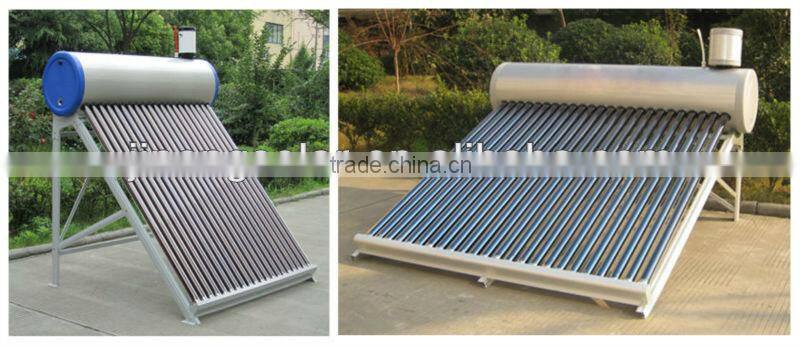

4. How We Test It?

After the DIY solar hot water heater was made, we install the sample and check carefully to ensure our customer get the qualified product.

5. What Else?

1. We offer customers 5 years for whole solar systems;

2. Carton design for customers is free offered on container order;

3. Any questions regarding our products, we are always at your service.

4. 1% extra vacuum tubes will be sent free.
