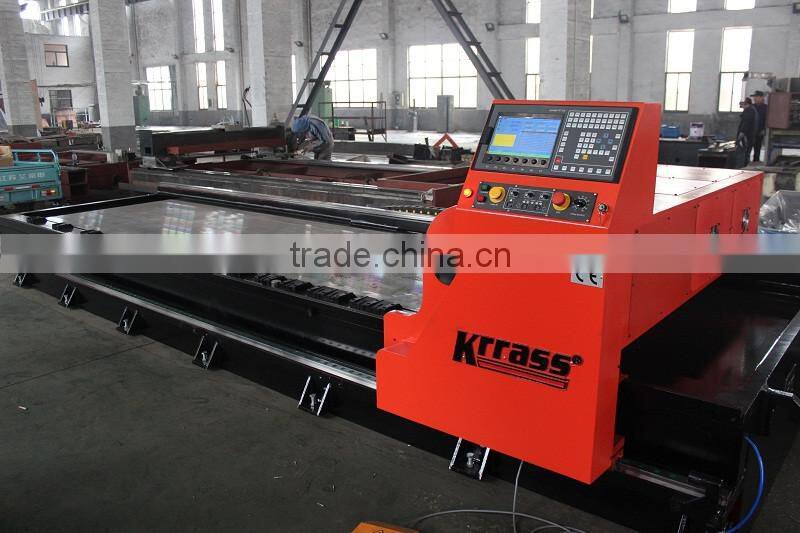

Factory Outlet V-groove Cutting Machine With CE

Advantages: conventional machine is clamps hold the sheet metal moving over the working table, so the sheet surface is very easy to be scratched.

Now this machine’s biggest advantage is sheet metal fixed, has no relative motion. the work piece is protected perfectly, especially for use in mirror stainless steel plates on decoration, and so that the machine has a high processing speed.

• Hydraulic v grooving machine

Frame structure with the overall table, mobile gantry beam also welded frame structure, the implementation of the overall welding, tempering after welding the whole, all to ensure the overall good rigidity, have to ensure that the future use is not deformed.

• Work:

Overall table frame fixed and mobile gantry beam for cutting slotting, grooving speed frequency control, smooth and efficient cutting process, the cutting surface quality is good.

• Numerical control systems, slot machine adopts PLC + touch screen CNC system

 A color touch screen controller adopts special software, Chinese / English operation menu, simple and straightforward. Manual, automatic two working modes to choose from, fully meet the various processing requirements. Man-machine dialogue interface, easy to learn and operate, convenient processing size input, process real-time display, error alarm will automatically

• Transmission parts

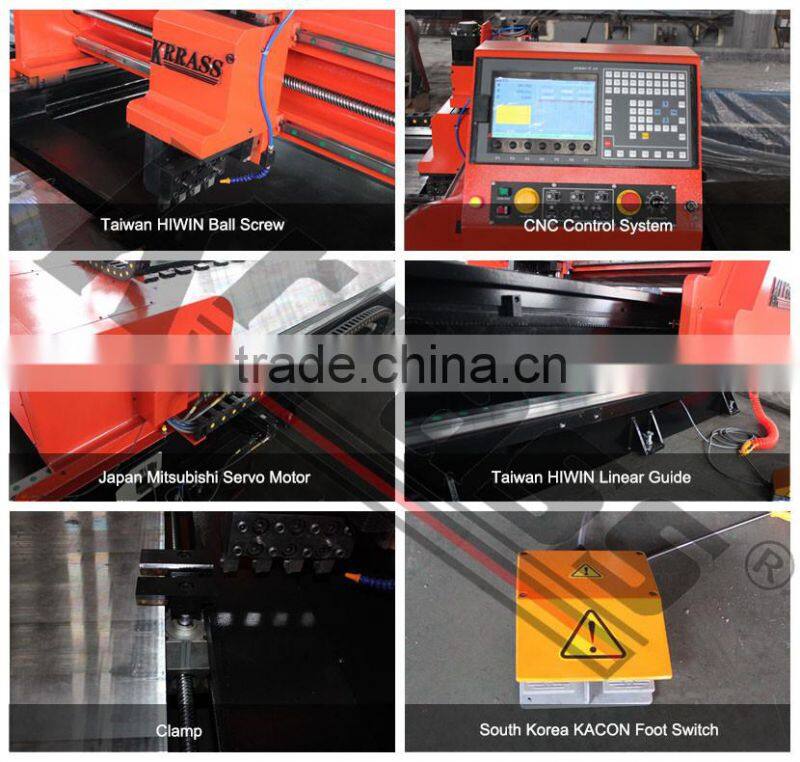

Machine is 4 axes control, the X-axis, Y1 axis, Y2 axis, Z axis. high positioning accuracy, where Y1, Y2 through the PLC synchronization system, guaranteed to always synchronized. X-axis is with inverter controlled AC gear motor. HIWIN brand high precision ball screw, helical rack and pinion driven sound small and precision.

• Press apparatus

Alone the working table, there is hydraulic clamps. According to different material or thickness, clamping force can be adjusted.

• Efficient:

1), the machine uses three alloy knife while processing methods, thus cutting is more evenly, work piece deformation will be reduced, tool life will be longer, production costs cost will be lower.

2), according to different processing job, speed can be selected.

3), with use of square alloy blades, four cutting edges can be used, replacement convenient, greatly reducing tool change time, both to ensure the accuracy

Watch Video on Youtube

https://youtu.be/Wz64XwjAcAA

Sheet is fixed on worktable by clamps,so no sctatch on sheet surface and high processing speed

1. HYRAULIC V GROOVING MACHINE
manker sure high strength and high rigidity without deformation.

2. WORKING MODE
The whole table frame is immobilized, just gantry blade adapter movew to slot with ariable frequency speed,effective slotting process,and high-quality surface.

3. CNC CONTROL SYSTEM:PLS&TOUCHING SCREEN
Colorful touch screen,special sofrware, convenient processing dimension input,processing instantly displaying and error automatic alarming.

4. TRANSMISSION PARTS
X,Y1,Y2and Z4 axis control,high positing accuracy,Y1 and Y2 synvhronized by
PLC.X axle driven by inverter and HIWIN brand ball screw,low noise and high accuracy.

5. CLAMPING DEVICE
With adjustable hydraulic system,Side clamping unit and top following pressing device make sure enough pressure to hold various thickness sheet.

6. HIGH EFFICIENCE
(1)Three alloy blades simultaneous process at the same time ,which makes even cutting rate,less workpiece deformation,longer blades service life,and lower producting cosr.
(2)Adjustable working speed.
(3)Square blade can be used four times with conventent and prompt replacing

 Watch The Details on Youtube

https://youtu.be/Wz64XwjAcAA
