Home > Products > Outdoor led displays > Waterproof Led P5 Outdoor Dsiplay for Advertisement for Wall Outdoor Advertising

Waterproof Led P5 Outdoor Dsiplay for Advertisement for Wall Outdoor Advertising

FOB Price

US$ 200 - 850 / Square Meter

1 Square Meter(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	JC
Model Number	JC-FSI-PH5MM(rental)	Usage	Outdoor
Tube Chip Color	Full Color	Display Function	Video
Pixels	Other, Waterproof led P5 outdoor dsiplay for advertisement	Screen Dimension	576mmx576mm

Product Description

Waterproof led P5 outdoor dsiplay for advertisement for wall outdoor advertising

Company Information

Shenzhen Jingcan Opto-Tec Co.,Ltd, which is professional indoor and outdoor full color LED screen manufacturer. You also can check more products on .

Our Services

1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs

Specification

Description	Technical parameter
LED Module	Module size	160*160mm
	Pixel pitch	5mm
	Pixel density	40,000 dots/m2
	Pixel configuration	1R1G1B
	Led specification	SMD2727
	Pixel resolution	W:32dots*H:32dots
Power System	Working voltage	DC9-36V
	Average power consumption	400W/m2
	Max. Power consumption	≤800W/m2
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	1/8 scan
	Drive type	Constant Current driver IC
	Refresh frequency	≥300Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness white balance	More than 6500 cd/m2
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥10,000hours
	Life span	≥100,000hours
	Flatness	Tolerance of interpixel ≤0.3mm
	Flatness	Tolerance of modules clearance≤0.6mm
	Power switch	Automatic switch
	Display mode	960*320
	Communication distance	Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM
Software	Linsn LED Control System and LEDStudio

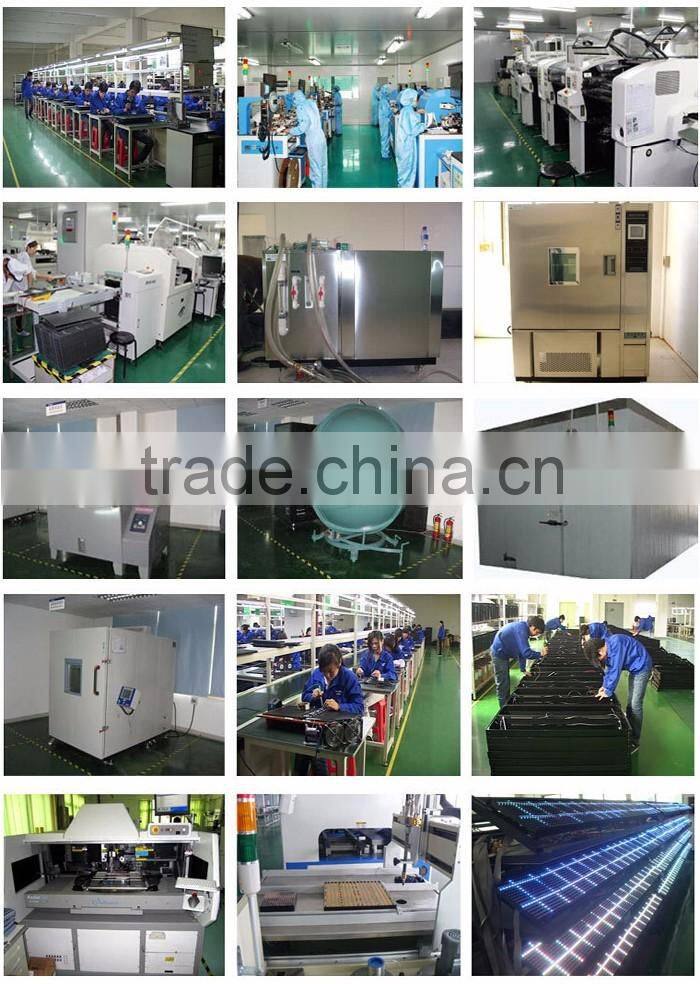

Production Flow

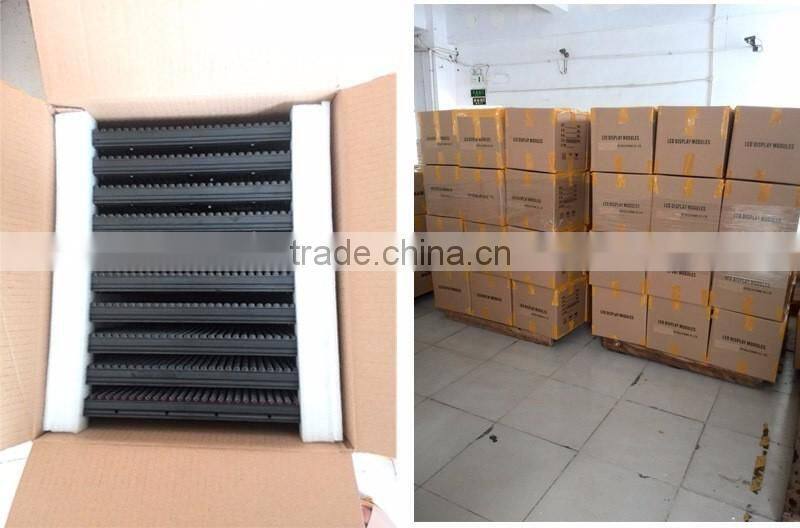

Packaging & Shipping

Usually, there are three tyeps of package design.

Firstly, we pack the LED display in the paper carton.

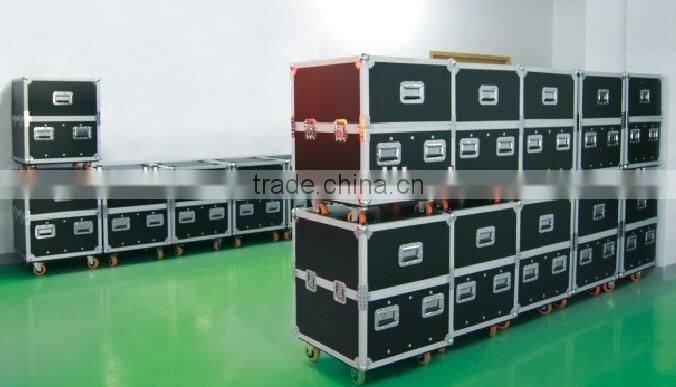

Secondly, we will pack the LED display in the flight case if customer request for frequent movement.

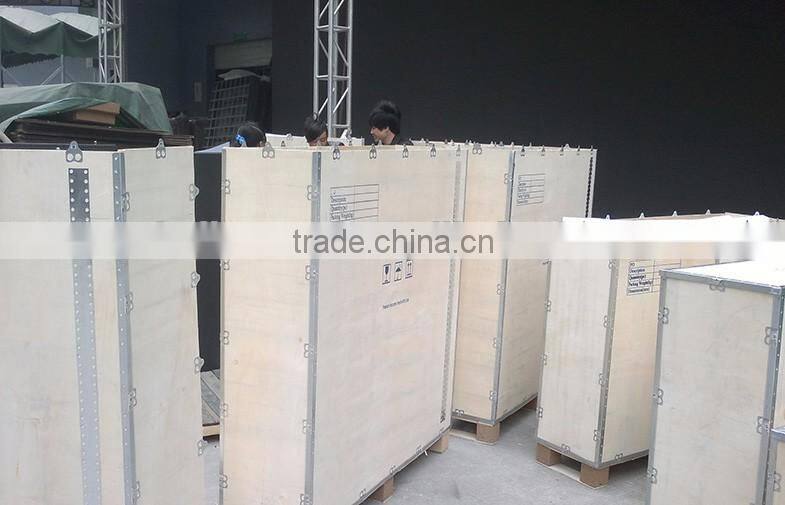

Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.

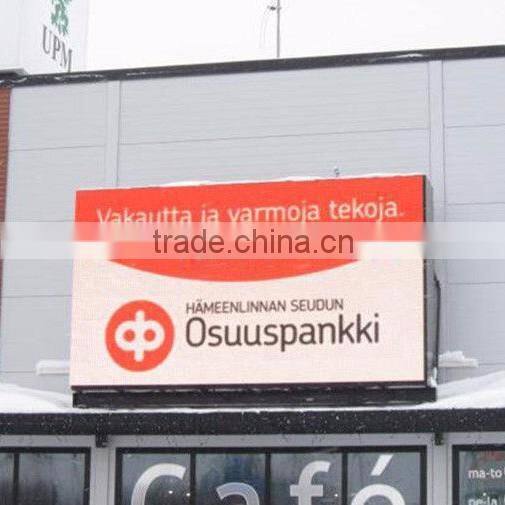

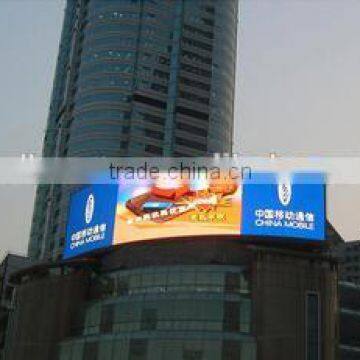

Product Picture

FAQ

1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.

3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days

4.How about the warranty ?
We have two years warranty.
