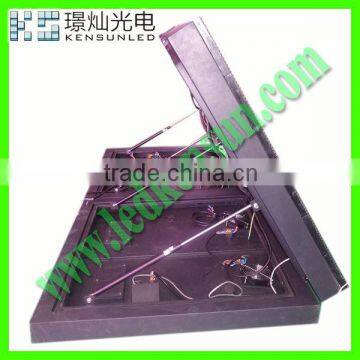

PH14mm outdoor full color front opening led display

FOB Price

US$ 800 - 1,000 / Piece

1 Piece(Min. Order)

Port sz
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	JC
Model Number	JC-display-P14	Usage	Outdoor
Tube Chip Color	Full Color	Display Function	Other, Video, Video Display
Pixels	10mm	Screen Dimension	PH14mm outdoor full color front opening led display

Product Description

Specifications

PH14mm outdoor full color front opening led display
1.Pixel Configuration:1R, 1G, 1B
2.Pixel Pitch:14mm
3.CE,ROHS

PH14mm outdoor full color front opening led display

1. Advanced digital view frenquency treatment technology
2. Scan by distributed & design with modularization
3. Static drive by constant-current, brighteness adjust willingly
4. Super high brighteness & soled color pixel
5. Vivid menu, no dithering and double image, stop distortion
6. Web control or long-distance control

The details as below:
1) Pixel Pitch: 14 mm
2) LED Dots per square meter: 5102
3) Pixel Composition: 2R1G1B
4) Pixel Type: Real or Virtual
5) Cabinet size: 896*672 mm or customer's required.
6) Brightness: More than 5500CD/m2
7) Weight per Cabinet: 38 kg
8) Cabinet Material: Iron
9) View Angle: Horizontal 110 / Vertical 50
10) Driving Method: 1/2
11) Driving IC: MBI5024
12) Refresh Frequency: More than 300Hz/S
13) Power Consumption (W/m2): Max 1200 Average: More than 450
14) Control system: Synchronized with PC Controlled.
15) Life time: More than 100, 000 hours
16) Working temperature: -30° C--+50° C

Packing: Flight Box.

Item	Technical Specification
Pixel	Pixel pitch: 14mm
	Pixel configuration: 1R1G1B
	Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd
	Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
	Module resolution: 8×16 pixels
Module	Module size: 112mmx224mm
Module	Cabinet size: 896mm×896mm×150mm
Cabinet	Cabinet resolution: 6400 pixels
	Cabinet material: Steel
	Gross weight: 65kg
	Module quantity: 24 pcs= 4(w) x 6(h)
	Power consumption : Max.:1000W/m² Everage: 300W/m²
Screen parameter	Drive method: static scanning
	Brightness: 7500cd/m²
	IC driver: MBI 5026
	Density: 310000 pixel/m²
	Whole display flatness: ≤ 1mm juncture
	Best view distance: ≥ 10m
	Viewing angle: Horizontal: 120° Vertical: 60°
	Humidity(RH): ≤ 90~95%
	Working temperature: from -30°C~ +60°C
	Working voltage: AC220V/110V±10%
	Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn)
	Frame rate: ≥ 540Hz
	Protection grade: IP67
	MTBF: More than 10000hrs
	Life time: 100,000 hrs
Control system	Control system: Linsn
	Signal interface: DVI
	Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
	Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000)
