Home > Products > B1 truss system > Truss Beam Gantry Crane

Truss Beam Gantry Crane

FOB Price

US$ 35 - 65 / Meter

1 Meter(Min. Order)

Port Guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	chaoda
Model Number	CTS-479

Product Description

Specifications

portable stage aluminum quick truss
performance exhibition trussgood welding technology
fast to install and dismental

truss beam gantry crane for party

Specification

Size(mm)	Main Tube(mm)	Horizontal tube(mm)	Brace Tube(mm)	Loading Capacity(kg)	Span(m)
300*300	50*3	25*2	20*2	440	12
350*350	50*3	25*2	20*2	450	15
400*400	50*3	25*2	25*2	470	16
450*450	50*3	30*2	25*2	500	17
500*500	50*3	50*2	25*2	600	20
520*760	50*3	50*2	25*2	1000	22
600*760	50*3	50*2	25*2	1500	26

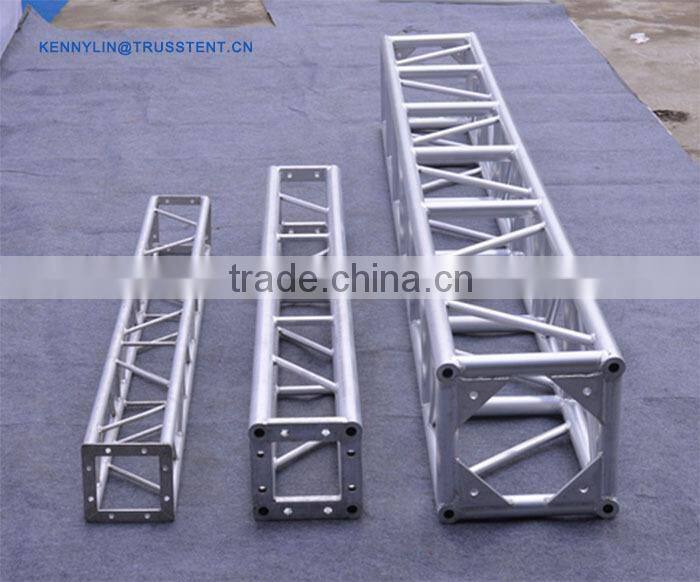

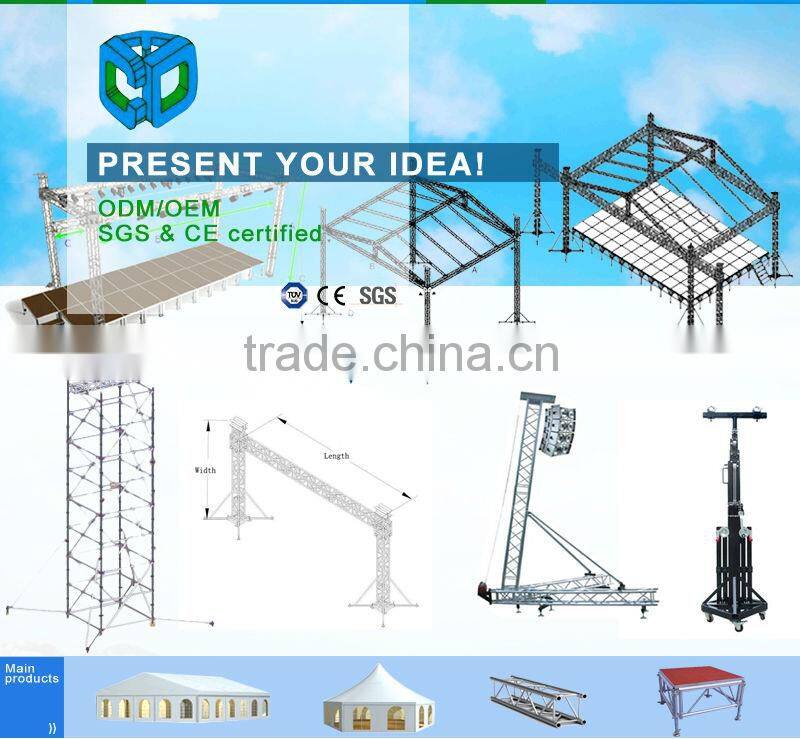

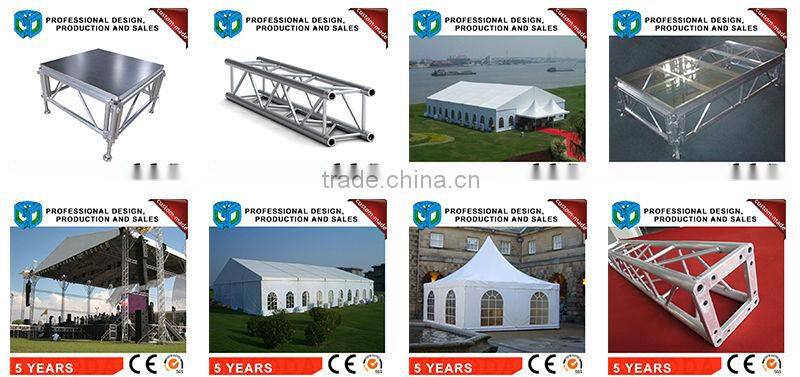

Product display

FEATURE of lighting truss beam

Model No. : ST30

Size: 300MM*300MM (including tube length)

Main Tube: 50*3MM

Sub-main Tube: 25*2MM

Brace Tube: 25*2MM

Material: Aluminum 6061-t6

Material analysis

Material	Aluminum 6061/T6,6082/T6
Length available	1m,2m,3m,4m

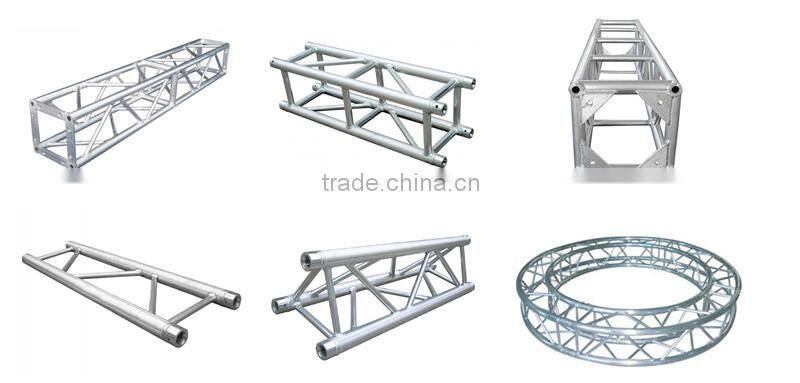

Shape	Ladder,Triangle,Square,Circle Truss
Color	Silvery and black or customized
Type	Spigot and screw
Certification	TUV,CE,SGS
Characteristics	Durable,Light Weight with high loading capacity.Raw material is aprecipitation hardening aluminum alloy, Containing magnesium and silicon as its major alloying elements. It has good mechanical properites, exhibits good weldability. It also has good effect of Proof Stress, corrosion resistance, antioxidation.
application	LED truss to hang LED screen / Iinear speakers or decorate truss
	Background truss: to hang up lights and LED, screen for truss frame
	Truss system: to hold events( for light, LED, speaker, audio, and so on)
	Layder truess: hanging speakers

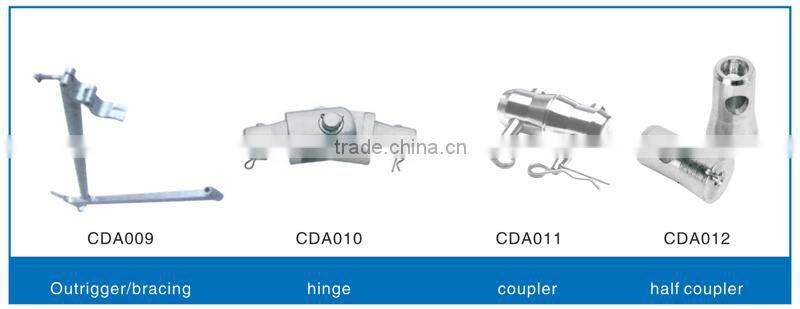

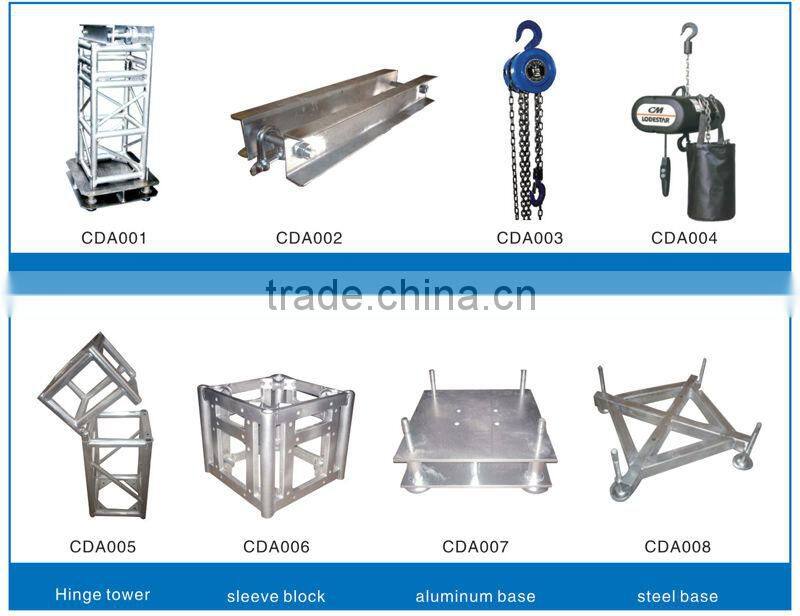

Product details

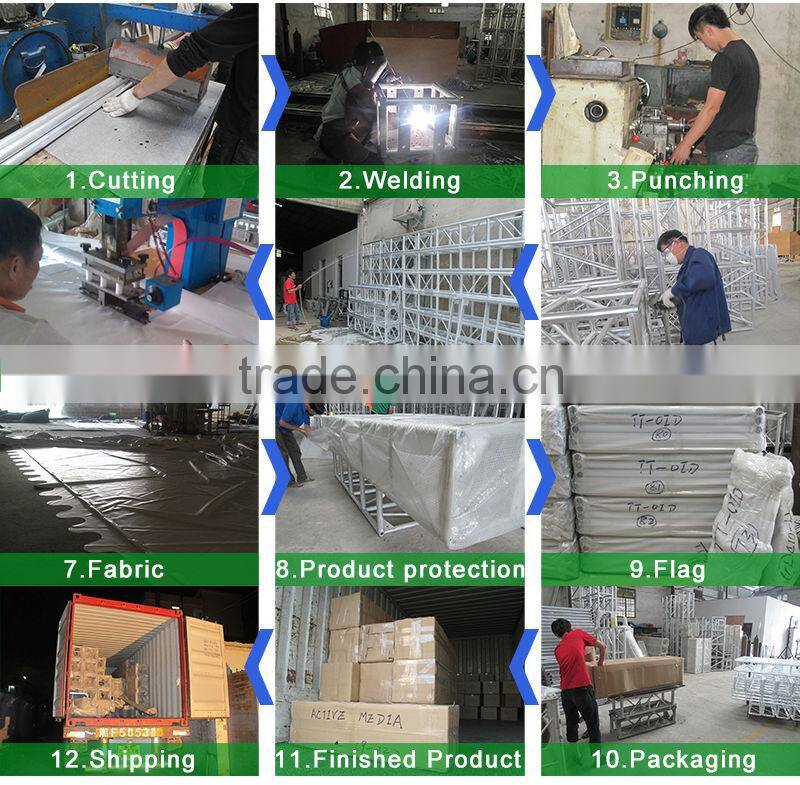

Production flow

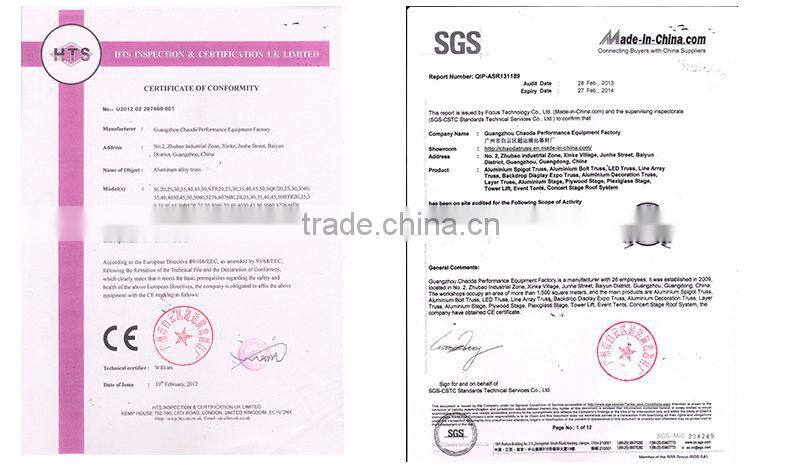

Certification

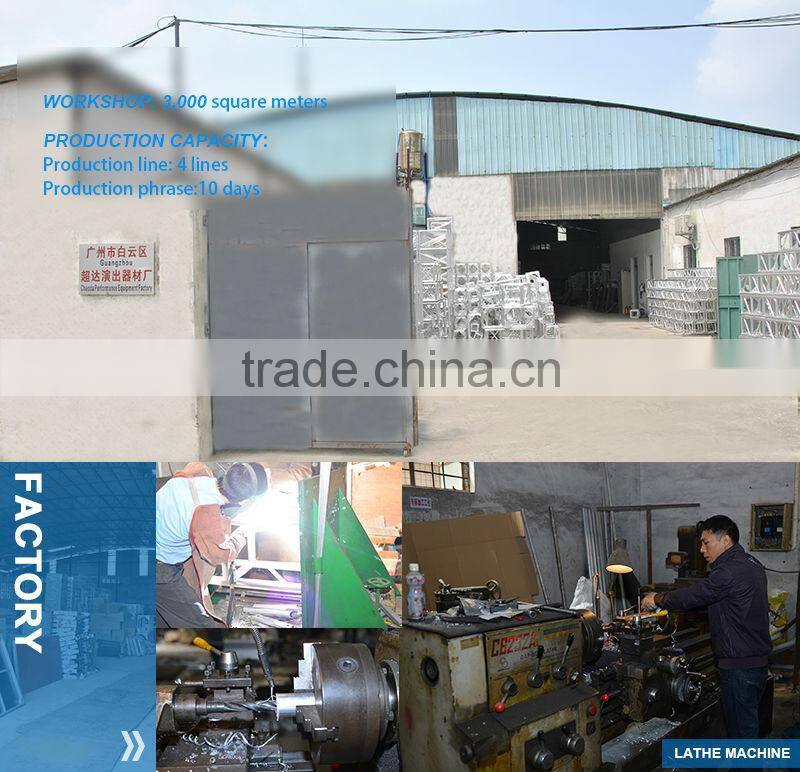

Factory information

Export market

Transaction flow

Payment & Shipping terms

Q&A

1. Are you a factory?

We are a factory.

2. Where is your factory?

Our factory is located in No.2 Xinke Industrial Zone,Baiyun District, Guangzhou, China.

3. How can I visit there?

You can take subway to Jiahe Wanggang, and then it will take half an hour to come to our factory. We will receive you, and warmly welcome you to visit us!

4. What does your factory do regarding quality control?

Quality is priority, we always attach great importance to quality control from beginning to the end, Also, our factory has gained CE and SGS cetifications.

Contact us

If you have any questions, pls feel free to contact:

Email:kennylin @trusstent.cn

Factory: Guangzhou Chaoda Performance Equipment Factory

Add: No.2, Zhubao Industrial Zone, Xinke, Junhe Street , Baiyun District, Guangzhou ,China
