Wood plastic building template making machine/plastic extruder

Wood plastic building template making  machine/plastic extruder

Specifications

Wood plastic building template making  machine/plastic extruder

1.SJSZ80/156

2.600kgs/h

3.low price and hight quality

4.CE&ISO 9001 certified

5.After-sales available to service machinery overseas

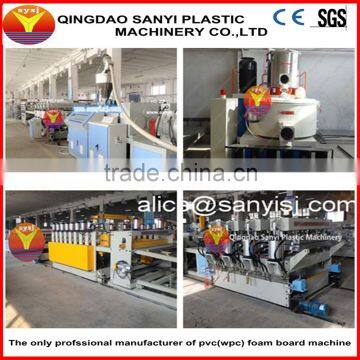

 SJSZ80/156 Conical twin screw Extruder:

The power of the pvc foam board machine is 75KW,(speed can be adjusted by inverter),output is about 400kg/hour,(specification 1220*2400mm or 915mm*1830mm,Thickness is about 3-30mm).The motor of the pvc foam board machine is SIEMENS,Inverter is ABB or SIEMENS,Tmperature controller is OMRON,and Contactor is SCHNEIDER or SIEMENS,others of the production line are China famous brand Chint.

The mould:

The lastest twelfth generation mould(The mould is designed by ourselves,and produced by the famous manufacturer in China).

Calibration unit:

calibration plate:1500mm*500mm,5pairs calibrator blocks,the shaping plate is thickened,widening,aggravating,chase hole,multi-channel,spacing can be adjusted ,this technology has costed our company 8 years to improve it gradually,it is the other manufacturers can not imitate.

Cooling roller system and cut blade trimming machine:

Length:6000mm

trimming knife:3sets

Haul off machine:

10pairs rubber rollers(controlled by inverter) and electric trimming machine,Two motor,one motor can control 4 pairs rollers,another motor control another 4 pairs rollers.if thickness is 5mm,just work one motor is ok,Can save more electricity powder for you in long time.

New Stacker:

can save more manpower cost for you.

Mould(T-Die)

The advantages of  the machine:

The  Wood plastic PVC cabinet door making machine you also can call it pvc foam board machine,pvc crust/celuka/skinning foam board machine,Construction formwork board extruding line,pvc furniture foam board making machine,Pvc free foam board machine.

1.ABB Frequency Converter, SIEMENS Contactor, OMRON  Japan, Motor Power:75KW.

2.Motor is authentic Siemens motor,not like Siemens Beide.(From outside it is big difference).

3.Screw and screw barrel:we bought from other company,But it makes it according to my company requirement and with my company LOGO.

4.The mould of the extrusion machine is designed by our company,and the technology is the latest in China.

5.Calibration mould:Thickness is 100mm.and the distance between each pair mould can be adjusted according to the application of board.

6.Material formulation:we can input 100%recycled material.

7.Our certificates :CE,ISO9001,SGS,TUV

8.We have set up the strategic partner relationship with SIEMENS.

The characteristics of PVC(WPC) foam board
First,This is a completely waterproof material, because it is plastic, it is widely used in the place of the outside balcony, Plank Road, a swimming pool, lake, beach, ship deck and so on.

Second, this is a completely anti-termite, anti-moth-eaten material, because it does not contain fibrin.

Third, this is a material with a good performance of flame retardant. We have done experiments. This excellent fire retardant property of foam boards foam is much better then wood and wood-plastic materials.

Fourth, it is one that does not decay, is radiation-free and non-toxic and in line with national testing standards. It is maintenance-free, and the maintenance of pollution can be avoided.

Fifth, the bending resistance of this material and a surface hardness are higher than that of wood, wood materials. The grip nails is stronger than the wood-plastic which is flat with wood.

Sixth, price levels of the pvc  material in the current market has the promotion conditions, it is definitely cheap and fine.

Seventh,This foam board is environmental,and it can be used for many times,and it also can  be recovery of reproduction.

Application of plastic sheet

Architecture decoration industry:such as building formwork board,outdoors board,indoors decoration board,residential house,office,separation of public building,commercial decoration frame,board used in dust-free room.

Household decoration:bathroom cabinet board,furniture board,home decoration board,various household shelves.

Advertisment industry:screen printing,computer engraving,ad.board,exhibition plate,logo plate.

Transport industry and industrial application also can use it.

 1.furniture board

 2.kitchen cabinet

3.building formwork board

4.office board

Qingdao Sanyi Plastic Machinery Co., Ltd., located in Qingdao, China, is a professional manufacturer of PVC Celuka Foam Board production line. With more than 10 years' research and development, Qingdao Sanyi now are proud of these production lines: PVC/WPC (Wood Plastic Composit) crust foam board extrusion line, PVC crust foam board extrusion line, PVC wood plastic foam board extrusion line, PVC building board extrusion line and PVC free foam board extrusion line.

Exhibition

our certification:

contact info:

  Tne only professional pvc wpc foam board erxrution line in China
