EPS Lost Foam Casting Pre-expander
- Shanghai or Ningbo
 - T/T Credit Card

You May Like
Product Details
| Condition | New | Product Type | Other, lost foam casting pre-expander | |
| Place of Origin | Zhejiang, China | Brand Name | Hongpeng | |
| Model Number | JS-JF-500 | Voltage | 380V | |
| Power(W) | 4.12kw | Dimension(L*W*H) | 500*800mm | |
| Weight | 600kg | Certification | CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
EPS Lost Foam Casting Pre-expanderPLC and touch screen
with first and second expasion
Special designed chain system
EPS Lost Foam Casting Pre-expander
Advantage:
-1 year quality guarantee, spare part for free
- 2 engineers go to install EPS production line
I. EPS lost foam production line mainly includes 3 parts:
1. EPS pre-expander: it’s used to make EPS raw material to foamed beads
2. EPS shape molding machine: it’s used to make foamed beads to kinds of lost foam shaped products.
3. Mould:it’s hang in the shape molding machine to make different products.

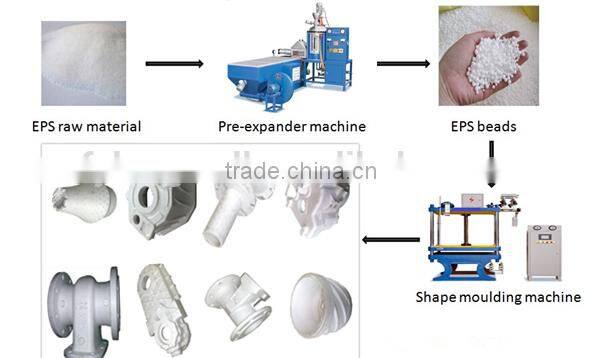

Working flow

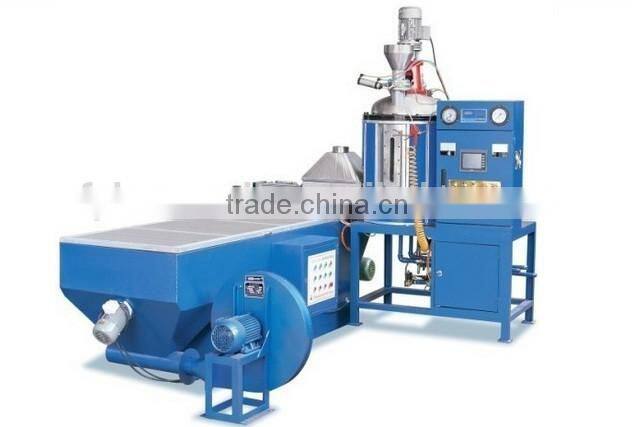

A.EPS pre-expander machine
It turns eps raw material (expanded polystyrene) to big and light foam beads through steam heating. With PLC and touch screen to realize full automatic production for feeding, heating and ejecting foam beads.
Technical data of EPS Lost Foam Casting Pre-expander
Specifications  | JS-JF-500  | JS-JF-600  | |
Cylinder Dimension  | 500×800mm  | 600×800mm  | |
Steam  | Intake  | DN25  | DN25  |
Working pressure  | 4- 8kg/cm2  | 4-8kg/cm2  | |
Compressed Air
  | Intake  | DN25  | DN25  |
Working pressure  | 4-8kg/cm2  | 4-8kg/cm2  | |
Foam Density  | 15-50g/L  | 15-50g/L  | |
Production Efficiency  | 30kg/h  | 60kg/h  | |
Consumption Of Steam  | 50kg/h  | 70kg/h  | |
Installed Power  | 4.12Kw  | 5.97Kw  | |
Weight  | 600kg  | 800kg  | |

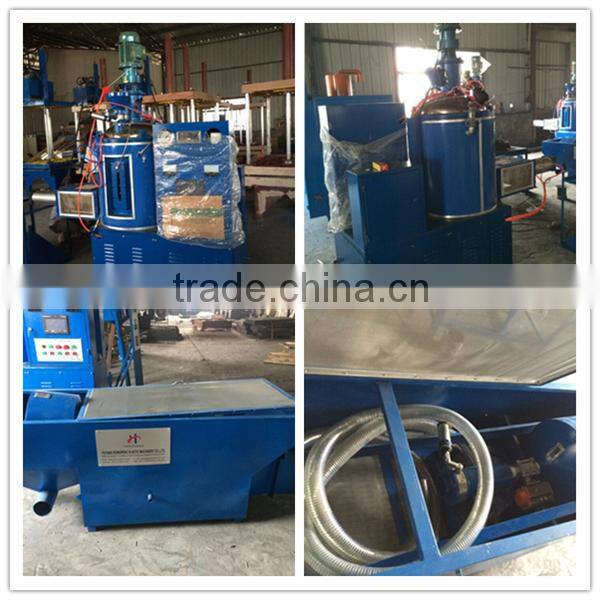

Details of EPS Lost Foam Casting Pre-expander

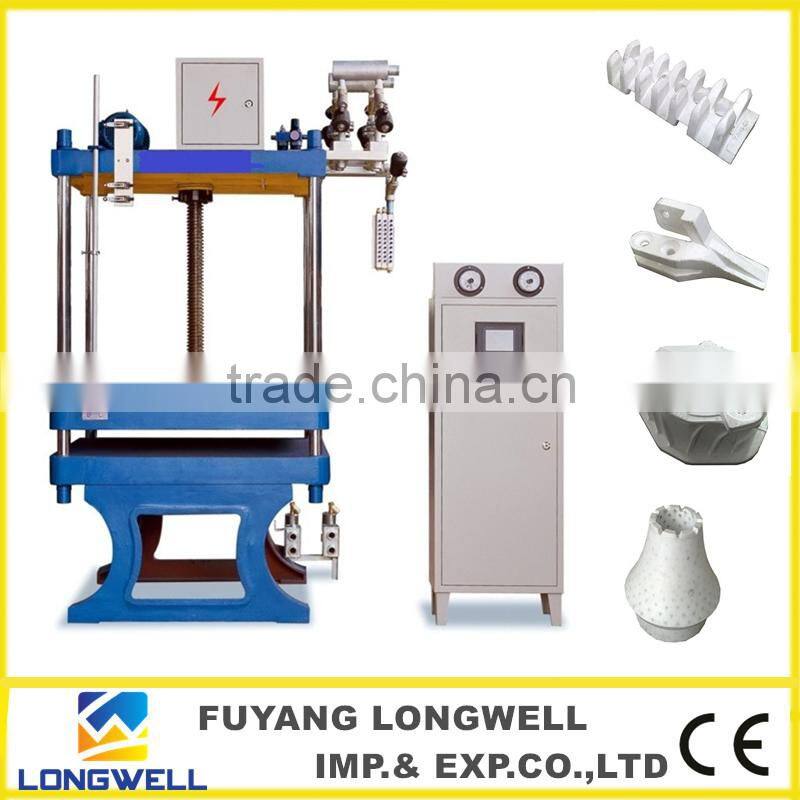

B. EPS shape molding machine
The machine applies PLC and touch screen with advanced molding technique can produce various shapes of EPS products, The machine applies to various kinds of working environment and is flexible
and simple for operation to achieve maximum utilization of space,time and capital.
Technical data
Specifications  | Worktable Size (mm)  | Maximum Stroke (mm)  | Lifting Speed (m/min)  | Motor Power (Kw)  |
JS-BC-0907  | 900×700  | 600  | 1.35  | 1.5  |
JS-BC-0908  | 900×800  | 720  | 1.35  | 1.5  |
JS-BC-1009  | 1000×930  | 720  | 1.35  | 2.2  |
JS-BC-1208  | 1200×800  | 720  | 1.35  | 2.2  |
JS-BC-1210  | 1200×1000  | 720  | 1.35  | 2.2  |
JS-BC-1310A  | 1300×1000  | 720  | 1.35  | 2.2  |
JS-BC-1310B  | 1300×1000  | 720  | 1.5  | 3  |
JS-BC-1412  | 1400×1200  | 720  | 1.5  | 3  |
JS-BC-1510  | 1500×1000  | 720  | 1.5  | 3  |
JS-BC-1512  | 1500×1200  | 720  | 1.5  | 3  |
JS-BC-1514  | 1500×1400  | 720  | 1.5  | 4  |
JS-BC-1712  | 1700×1200  | 720  | 1.5  | 4  |
JS-BC-1715  | 1700×1500  | 720  | 1.5  | 4  |
JS-BC-2012  | 2000×1200  | 720  | 1.5  | 5.5  |

Application of EPS Lost Foam Casting Pre-expander

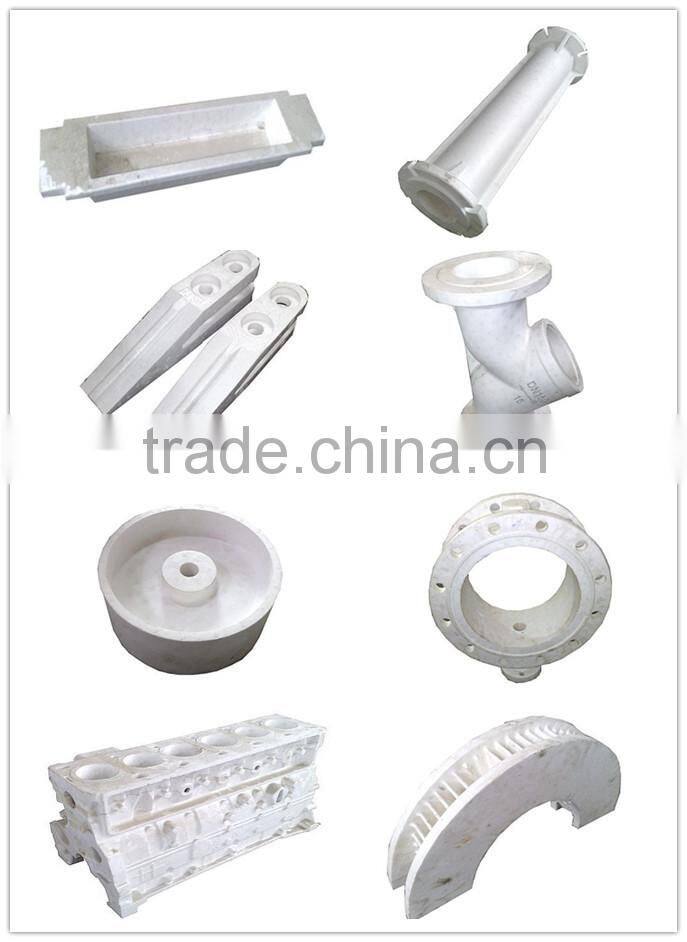

C. Moulds
Standard export packaging:
Outer package: standard export wooden cases.
Inner package: plastic paper or wrapped with stretch film and etc.
Shipment:
By sea from Shanghai or Ningbo port
By train from Ningbo station
By truck from Kashgar, Urumuqi or other checkpoint

1. Take our valued client as priority, make sure equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' needs, such as different design, different brand parts, different colors, more function and etc
3. Engineers go to clients' factory to install machines in time.
4. More spare parts given to clients for free to ensure the factory working without suddenly stop
Clients' factory
Q: Does your machine have CE certification?
A: Yes,our machine with CE certification.
Q: How about payment terms?
A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment can be negotiated.
Q: Installation and commissioning?
A: We will send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q: Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
Contact: Vicky Wu
Mobile: +8613758164390
Skype: vicky19862
Wechat: 108895932
