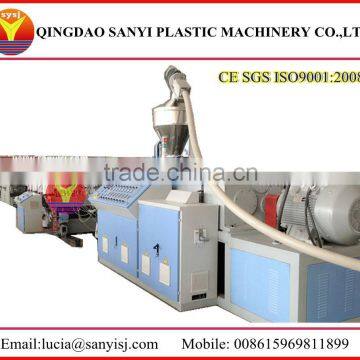

Recycling PVC Plastic Construction Formwork/ Building Template Extruder Machine
- 12 Set / Sets per Month
- Qingdao China
- T/T
You May Like
-
Recycled PVC Construction Formwork/Building Template/Concrete Formwork Manufacturing Line
-
CE & ISO9001 Certified PVC Construction Formwork/Building Template/Concrete Formwork Manufacturing Line
-
PVC Construction Shuttering/Building Formwork/Concrete Formwork Extruder Machine
-
Plastic Extruder PVC Construction Formwork Panel Machine
-
PVC Concrete Formwork Making Machine
-
Plastic Extruder PVC Formwork Panel Production Line
Product Details
Condition | New | Application | Sheet | |
Plastic Processed | PVC | Screw Design | Double-screw | |
Automatic Grade | Automatic | Place of Origin | Shandong, China | |
Brand Name | SANYI | Model Number | SJSZ80/173 | |
Voltage | 380-440V | Power(W) | 120kw | |
Dimension(L*W*H) | 25mm*3mm*3mm | Weight | 30t | |
Certification | CE, TUV, SGS, ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Recycling PVC Plastic Construction Formwork/ Building Template Extruder Machine
Devoted to the R&D and Manufacture of PVC Foam Board Machine for more than 8 years, SANYI has upgraded its plastic extruder machine to 13th generation. Well-equipped extruder machine and mature technology and formula system, PVC plastic building template panel extruder machine creates high quality PVC Crust/Celuka/Skinning Foam Panel. Our machine adopts Celuka foam technology, These processes result in a "skinning" or outer layer of foam board and it achieves excellent surface hardness, rigidity and toughness and more scratch-resistance. This kind of PVC building template panel can be nearly 100% recycled and reused for 20-30 times. Besides, PVC construction formwork foam board can be worked like wood with the tools for wood. It's suitable for sawing, cutting, nailing, screwing, planning and sticking. It's the perfect substitute for wood.
Equipment structure
| Component | Specification |
1 | The 13th Generation Extruder | 90kw (speed adjusted by SIEMENS inverter) 80/173 conical double screw OMRON Temperature controller Output is about 600kg/h. Automatic feeder |
2 | The 13th Generation Mould | (3mm-30mm) x1220mmx2400mm |
3 | Calibration Unit | Calibration plate: 1500mm× 500mm 5couples |
4 | Cooling roller system | Length: 6000mm Trimming knife: 3sets |
5 | Haul off machine | 10pairs rubber rollers (controlled by inverter) and electric trimming machine |
6 | End Cutter | controlled by inverter |
7 | Stacker |
|
General Specification
1 | Brand Name | SANYI |
2 | Certificates | CE, ISO9001, SGS, TUV |
3 | Plastic Processed | PVC and WPC |
4 | Screw Design | Conical double screw |
5 | Model | SJSZ80/173 |
6 | Dimension (L*W*H) | 25m*3m*3m |
7 | Capacity | 600kg/h |
8 | Specification of Finished Board | 1220*2440*(3-30) mm |
9 | Density of Finished Board | 0.37-0.85 adjustable |
10 | Voltage | 380-440V |
11 | Main Motor Power | 90kw |
12 | Required Transformer Capacity | 250KVA |
13 | After-sales Service | Engineers available to serve overseas |
14 | Application of Foam Board | Furniture board, building template, decoration board, advertisement board, wall panels, roof, car and boat board etc. |
15 | Packing Details | Wood package and PE film covered 2 containers |
16 | Delivery Dates | 30days after 30% down payment |
Electrical Parts
1) Main motor frequency controller: SIMENS or ABB
2) Temperature controller: OMRON
3) AC controller: SCHNEIDER or SIMENS
4) Thermal overload relay: SCHNEIDER
5) Switch: SCHNEIDER
The Advantages of PVC construction formwork compared with tradtional formwork
Packing Details: Wood package and PE film covered 2 containers.
Delivery Details: 30days after 30% downpayment by T/T
1. Pre-sale service:
To provide market research information and consultation
To provide all kinds of convenience and market service.
To help customers make project planning and systematic analysis
To maximize customer's satisfaction
To achieve the mutual benefits of our customers and our company
2. After-sale service:
To install products and test products for customers
To provide the formulas and technologies of relevant products and the information of chemical materials manufactories
To provide technical direction according to customers' requirements
To provide technical training for clients' employees
To be responsible for maintenance service, door-to-door service under necessary circumstance.
Qingdao Sanyi Plastic Machinery Co., Ltd locates in Qingdao City. Our company has advanced technology and experiences in plastic machinery fields from 2006.We can transform the newest science research into real product with fastest speedy to supply the most competitive equipment for our customers. We can provide you our best after-sales service and abide by the principle of "Quality first, Credit uppermost”. Qingdao sanyi plastic machinery co.,ltd is a professional manufacturer of PVC foam board extrusion line with good quality and competitive price. Also, we have CE and ISO9001:2008,SGS and TUV certificates. We have enjoyed a good reputation in both China and the world. Our company has advanced to the latest generation and greatly improved the performance and output of the machine. The development of PVC foam board extrusion line witness our company's growth and strength.
We share 30% of domestic market and export our machines to the world.
