New Material Plastic Formwork Extruder Machine, Recyclable PVC Construction Formwork Machinery

New Material Plastic Formwork Extruder Machine, Recyclable PVC Construction Formwork Machinery

Brand Name: SanYi
Certificate: CE, ISO9001, SGS, TUV
Plastic Processed: PVC and WPC
Screw Design: Conical double screw
Model Number: SJSZ80/173

Voltage: 380-440V
Main Motor Power: 90kw
Dimension (L*W*H): 25m*3m*3m
Weight: 28t
Output of plastic plate: 600kg/h
Finished Product: PVC/WPC foam board
Specification of finished board: 1220*2440*(3-30) mm or 915*1830*(3-30)mm

Density of finished board: 0.37-0.85 adjustable
Application of Foam Board: Furniture board, building template, decoration board, advertisement board, wall panels, roof, car and boat board etc.
After-sales Service Provided: Engineers available to serve overseas
Packing Details: Wood package and PE film covered 2 containers.
Delivery Details: 30 working days

PRODUCT INTRODUCTION

PVC plastic construction formwork machinery is a production line  that Qingdao Sanyi have been devoted to and concentrated on during the last 8 years! It's continuously improved and redesigned on the basis of requirements and feedbacks from our customers combined with foreign advanced technology. It shows superior performance, high reliability and practicality with its compact structure, advanced configuration and outstanding output in the production of 3-30mm thick, high-qualified PVC WPC foam board, PVC plastic construction formwork.

TECHNIQUE GUARANTEE

Our PVC WPC construction formwork machinery adopts Celuka foam technology, which can produce a kind of PVC WPC foam boards with superior quality. These processes result in a "skinning" or outer layer of foam board and harder or more scratch resistant. This kind of PVC WPC foam board can not only have much smoother surface but also have more skin hardness compared with other PVC WPC boards.

EQUIPMENT STRUCTURES

TOP ELECTRICAL CONFIGURATION

1. Main motor frequency controller: SIEMENS or ABB

2. Temperature controller: OMRON

3. AC controller: SCHNEIDER or SIEMENS

4. Thermal overload relay: SCHNEIDER

5. Switch: SCHNEIDER

As one of the few STRATEGIC PARTNERs with SIEMENS in China, we apply the best electric equipment to our PVC WPC onstruction formwork machinery, not only the production line but also the auxiliary equipments, to achieve stable, safe, and high-quality production of the board production!!!

PRODUCTION PROCESSING

Material Mixing: PVC + additives or PVC + wood powder + additives

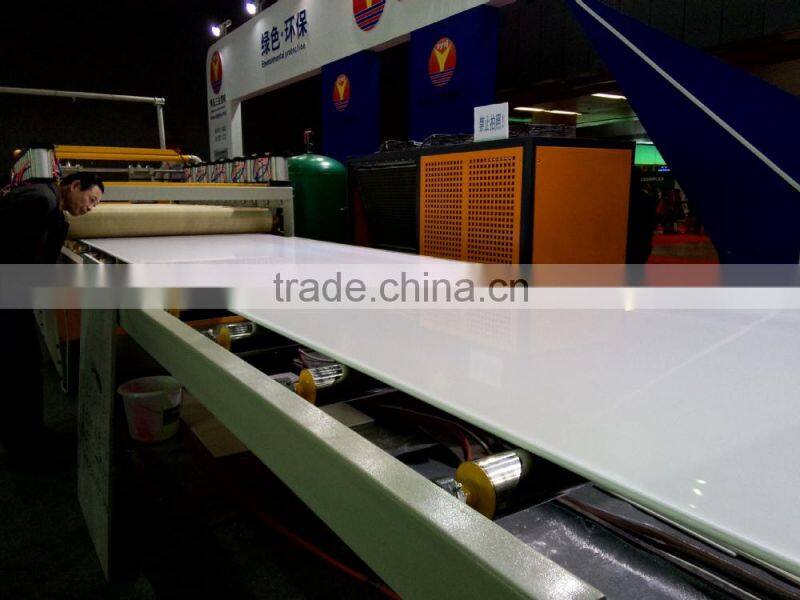

Extrusion Processing: mixed material going through the extruder, Mould, calibration unit, cooling carrying roller and trimming cutter, and delivery device.

Final Products: PVC or WPC foam board

SPECIFICATION OF FINISHED BOARD

 CHARACTERISTICS OF PVC WPC FOAM BOARD

PVC foam board has such characteristics as sound separation, sound absorption, heat separation, temperature-keeping, etc.
The material is incombustible, it is safe for use.
All series of products have property of moisture proof, mildew proof, water resistance; its vibration resistant effect is good.
All series of products have property of weathering proof, its luster may remain forever, and it is not easy to be ageing.
This product is light, storage & transport, construction are rather convenient.
This product can be worked with normal tools for wooden material.
Drilling, sawing, nail, bonding can be conducted like wooden material.
It is suitable for thermal shaping, thermal bending and fold processing.
It can be welded; it can also be bonded with other pvc material.
The surface of this product is smooth, it can be printed. (Clean the surface before printing).
