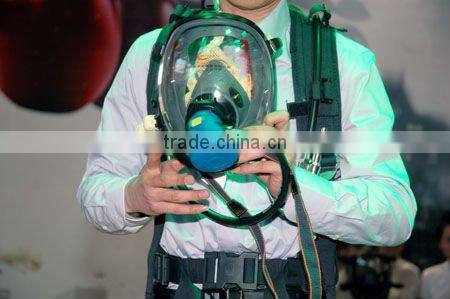

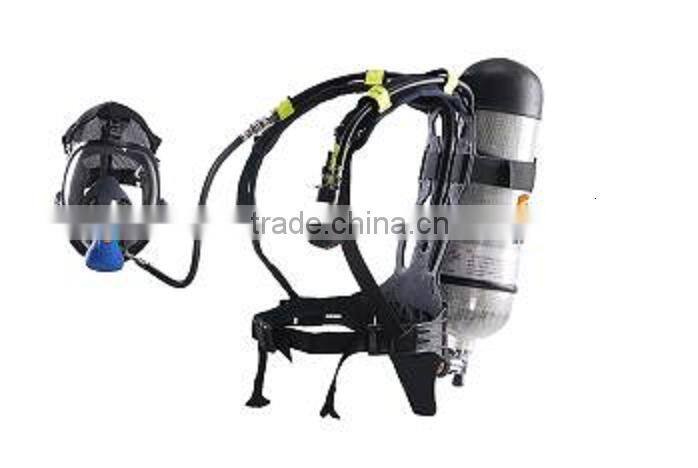

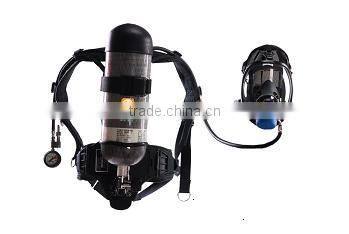

Baoya SDP1100 Carbon Fiber Cylinder Firefighting Respirator

FOB Price

Negotiable / Set

3 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	BAOYA
Model Number	SDP1100

Baoya SDP1100 Carbon Fiber Cylinder Firefighting Respirator
with rescue others Y shape manifold
Firefighter Equipment

Baoya SDP1100 Carbon Fiber Cylinder Firefighting Respirator

Features:

1. Lightest among the similar products

2. Mask: Wide spherical field of view, double anti-fog, impact resistance and high temperature resistance

3. Compatible with multiple respirator products

4. Streamline backboard can relieve the load to the waist

5. Reducer: Large output

The cylinder can be 3L/4.7L/6.8L/9L-carbon fiber composite air cylinder or 6L-steel cylinder (for ship use)

Technical parameters:

Volume of air cylinder	pressure of cylinder	Maximum air supply flow	Respiratory resistance		Alarm pressure	Weight (lightest configuration)	Service time
Volume of air cylinder	pressure of cylinder	Maximum air supply flow	Exhalation	Inhalation	Alarm pressure	Weight (lightest configuration)	Service time
3.0L	≤30MPa	≥1000L/min	≤1000Pa	≤500Pa	5.5±0.5M Pa	6.2KG	30 min
4.7L	≤30MPa	≥1000L/min	≤1000Pa	≤500Pa	5.5±0.5M Pa	7.1KG	47 min
6.0L	≤30MPa	≥1000L/min	≤1000Pa	≤500Pa	5.5±0.5M Pa	13.1KG	60 min
6.8L	≤30MPa	≥1000L/min	≤1000Pa	≤500Pa	5.5±0.5M Pa	7.5KG	68 min
9.0L	≤30MPa	≥1000L/min	≤1000Pa	≤500Pa	5.5±0.5M Pa	9.1KG	90 min

Note: The service time is calculated based on medium work intensity (respiratory capacity: 30 L/min).
