Home > Products > New Products > Rubber Conveyor Belt Vulcanizing Press Machine

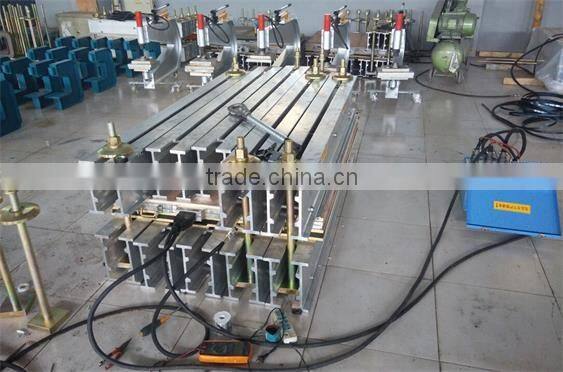

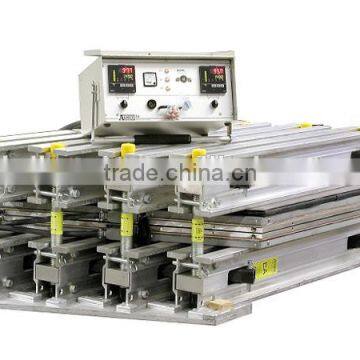

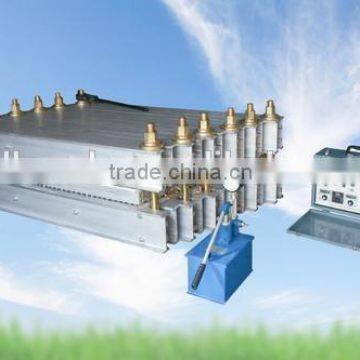

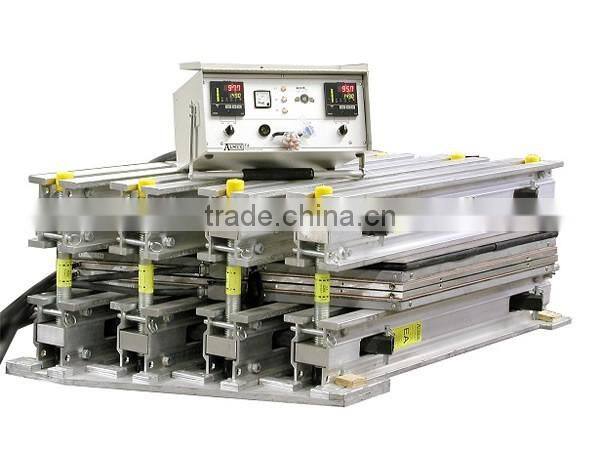

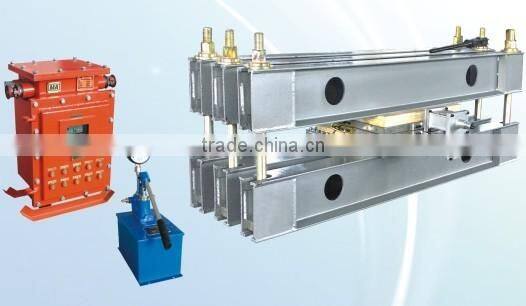

Rubber Conveyor Belt Vulcanizing Press Machine
- 50 Set / Sets per Month
- tianjin port
- Credit Card
You May Like
-
Industrial Vibrating Screen
-
6mm 9mm 12mm Black rubber mat , rubber sheet roll manufacturer
-
Excellent quality EP NN CC fabric conveyor belt with competitive price
-
China Top 10 supplier manufacture best quality Wave-shape Apron Conveyer Belt
-
Factory directly supply cheap price/best quality conveyor belt/conveyor belting
-
high quality polyester rubber conveyor belt for sand and gravel
Product Details
| Condition | New | Place of Origin | Hebei, China | |
| Brand Name | huadu | Model Number | XLB | |
| Voltage | 380V, 380V 660V 480V 440V 415V 400V or 220V; | Power(W) | 3KW/4KW | |
| Dimension(L*W*H) | 670(L)*490(W)*780(H)mm | Weight | 250kg | |
| Certification | ISO9001 | Warranty | One Year | |
| After-sales Service Provided | No overseas service provided |
wooden box
Product Description
China ISO 9001 Conveyor belt vulcanizing machine for belt splicing machine
1. Technical Parameters Beltwin electric heat rubber press vulcanizing equipment for rubber conveyor belt
- Vulcanizing temperature:
145℃ (adjustable 0~200℃)
- Temperature-rising time (from normal temp to vulcanizing temp):
≤50 mins(around 25~30 mins normally)
- Improved cooling system: using pressure pump for cooling:
only 5mins (cooling from 145 to 75 degrees)
2.When order or inquiry, pls offer below informaiton:
| 1.Heating platen length | (A=?) |
| 2.Belt max width | (B=?) |
| 3.Working pressure | 100PSI / 200PSI |
| 4.Working voltage | 380V/ 660V / 480V / 440V / 415V / 400V or 20V |
| What kind of press | normal type or 2pcs type |
Any other special requirement pls contact us.
rubber conveyor belt splicing machine for exporting
Belt width: from 650mm to 3000mm 200PSI Almex alike Uniform Pressure Bag for Conveyor Belt Press
Degree of the heating platen: 22 °/17 °/ 20 ° (rectangle and other degree is optional)
Waterbag/ air pressure Press for 100PSI, 200PSI etc.
Surface pressure for textile and steel cord belts, Up to 1.8Mpa.
- 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
- 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steel cord conveyor belting
- Customization/OEM:Different heating platen size and combination
3. Specification
1. 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting.
2. 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord conveyor belting.
4. Main componets

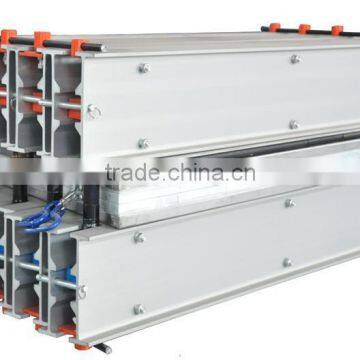

1. Aluminum Frame (Spanner Bars):
High quality aluminum, designed for any belt width or operating pressure (from EA up to E430)
4.New electric connect system (Old flat plug & socket design: plug pins broken easily)
Company Profile
Lixian Huadu Rubber Belts Co., Ltd. is a professional supplier of rubber products, located near to Beijing & Tianjin. We are near to Beijing-Guangzhou & Beijing-Kowloon railways and Beijing-Shenzhen Expressway, enjoying convenient transportation. Since inception, we have introduced advanced production equipment and testing instruments, and strived to produce high quality rubber products. Our main products are: a variety of general conveyor belts, steel cord conveyor belts, flat belts, etc. Our products are sold to more than 31 large and medium-sized cities and regions, well received by consumers. Our company insists on "Quality is Life". We won titles like "Trustworthy Unit" & "Product Quality Trustworthy Enterprise". We have has a high reputation in the industry. We warmly welcome friends to cooperate with us to create a brilliant tomorrow.
Contact Us
- Lixian Huadu Rubber Belts Co., Ltd.
- Contact namelongfei lee Chat Now
- Phone86-312-6268481
- AddressDuikanzhuang, Lixian
