Product Details
| Place of Origin | Hebei, China | Brand Name | huadu | |
| Model Number | huadu-101 |
PVC water-proof cloth, wooden box
Product Description
Specifications
Industrial Rubber Nylon belt , conveyor belt price
Mould
NN100, NN125,NN150, NN200, NN250, NN300, NN400 , NN500, NN600
Character
Nylon rubber belt, which is applicable to conveying of heavy product at high speed in middle and short distance, high strength, shock resistance, good performance, nice adhesion, excellent flexibility and long service time.
Standards
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
Types
General Nylon Belt, Fire-resistant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type,High-grade type and etc.
Specification and technical index of Nylon conveyor belt:
Fabric type  | Fabric structure  | Fabric type  | Fabric thickness  | Cover rubber thickness  | Width  | Length  | ||
warp  | weft  | Upper  | Lower  | |||||
Nylon(NN)  | Nylon(N)  | Nylon(N)  | NN-100  | 0.75  | 1.5-8  | 0-4.5  | 400-2500  | <=300  |
NN-150  | 0.80  | |||||||
NN-200  | 0.90
  | 500-2500  | ||||||
NN-250  | 1.15  | |||||||
NN-300  | 1.25  | |||||||
NN-400  | 1.45  | 800-2500  | ||||||
NN-500  | 1.55  | |||||||
We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.
Standards  | Cover Rubber  | Adhesion  | ||||
Tensile Strength  | Elongation at break  | Abrasion  | Cover to Ply  | Cover to Ply  | Ply to Ply  | |
DIN 22102  | Mpa  | %  | mm3  | N/mm  | N/mm  | N/mm  |
DIN 22102-Z  | 15  | 350  | 250  | 3.5  | 4.5  | 5  |
DIN 22102-W  | 18  | 400  | 90  | 3.5  | 4.5  | 5  |
DIN 22102-Y  | 20  | 400  | 150  | 3.5  | 4.5  | 5  |
DIN 22102-X  | 25  | 450  | 120  | 3.5  | 4.5  | 5  |
Standards  | Cover Rubber  | Adhesion  | ||||
Tensile StrengTD  | Elongation at break  | Abrasion  | Cover to Ply  | Cover to Ply  | Ply to Ply  | |
AS 1332  | Mpa  | %  | mm3  | N/mm  | N/mm  | N/mm  |
AS 1332-N17  | 17  | 400  | 200  | 4  | 4.8  | 6  |
AS 1332-M24  | 24  | 450  | 125  | 4  | 4.8  | 6  |
Standards  | Cover Rubber  | Adhesion  | ||||
Tensile StrengTD  | Elongation at break  | Abrasion  | Cover to Ply  | Cover to Ply  | Ply to Ply  | |
RMA  | Mpa  | %  | mm3  | N/mm  | N/mm  | N/mm  |
RMA-I  | 17  | 400  |
  | 3  | 4.4  | 4  |
RMA-II  | 14  | 400  |
  | 3  | 4.4  | 4  |
Standards  | Cover Rubber  | Adhesion  | ||||
Tensile StrengTD  | Elongation at break  | Abrasion  | Cover to Ply  | Cover to Ply  | Ply to Ply  | |
SANS 1173  | Mpa  | %  | mm3  | N/mm  | N/mm  | |
A  | 18  | 400  | 70  | 5  | 7  | |
C  | 20  | 400  | 150  | 5  | 7  | |
M  | 25  | 450  | 120  | 5  | 7  | |
N  | 17  | 400  | 150  | 5  | 7  | |
Feature:
1) high abrasion resistance, high tensile strength and good fatigue resistance;

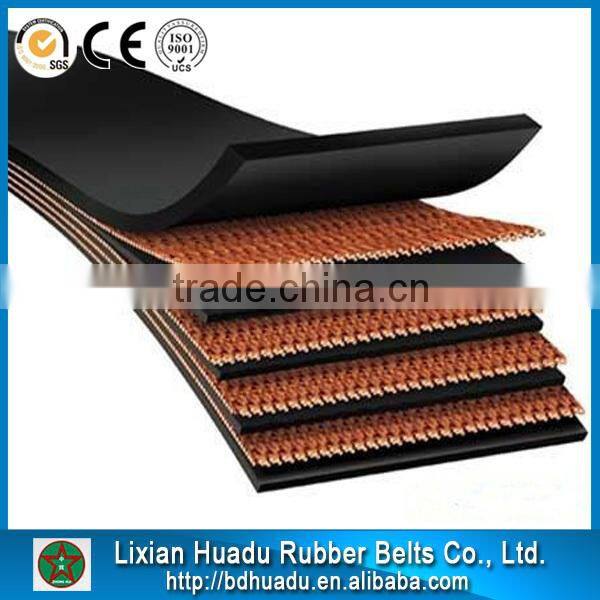

2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength, good shock resistance, good trough ability, high adhesion between plies, splendid flexibility and long working life.

Lixian Huadu Rubber Belts Co., Ltd. is a professional supplier of rubber products, located near to Beijing & Tianjin. We are near to Beijing-Guangzhou & Beijing-Kowloon railways and Beijing-Shenzhen Expressway, enjoying convenient transportation.
Since inception, we have introduced advanced production equipment and testing instruments, and strived to produce high quality rubber products. Our main products are: a variety of general conveyor belts, steel cord conveyor belts, flat belts, etc. Our products are sold to more than 31 large and medium-sized cities and regions, well received by consumers.
Our company insists on "Quality is Life". We won titles like "Trustworthy Unit" & "Product Quality Trustworthy Enterprise". We have has a high reputation in the industry. We warmly welcome friends to cooperate with us to create a brilliant tomorrow.
Our Company:
Testing:
Certification:
1.Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
2.Is the sample available?
Yes, samples are available for you to test the quality.If we have samples in warehouse,freight can be paid by your side.
3.Are the products tested before shipping?
Yes, all of our rubber belt ,conveyor belt was qualified before shipping. We test every batch every day.
4.What’s benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
For more details,please inquiry us!
Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Sidewall conveyor belt (SW)
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (OHR/ OFR)
Cold Resistance conveyor belts, (CR)
Endless belts
Conveyor roller, idler
Conveyor Pulley, frame,bracket etc
