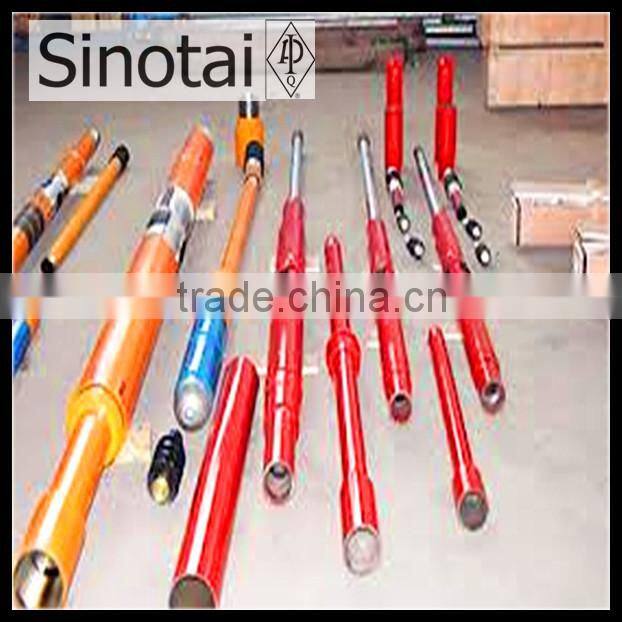

Hot Sale High Quality API DYX-AF Liner Hanger With Packer for Oilfield Made in China
- Tianjin Shanghai Qingdao
- T/T Credit Card
You May Like
-
Hot Sale High Quality API !! Liner Hanger With Packer for Oilfield Made in China
-
Casing Premium Connection Threading
-
API 5CT Casing Premium Connection Threading
-
HIGH Quality API 5CT Casing Premium Connection Threading
-
HIGH Quality API 5CT Casing Premium Connection Threading Made in China
-
Single Plug Cementing Head
Product Details
| Place of Origin | Shandong, China | Brand Name | SINOTAI | |
| Model Number | DYX-AF | Type | Drill Pipe | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Carbon Steel | Processing Type | Casting | |
| Use | Well Drilling |
standard or according to customers' requirements
Product Description
Specifications
1.Rated Load:30 T2.Sealing Capacity:25Mpa
3.Specifications:139.7*101.6/88.9
4.Body Max O.D.117mm

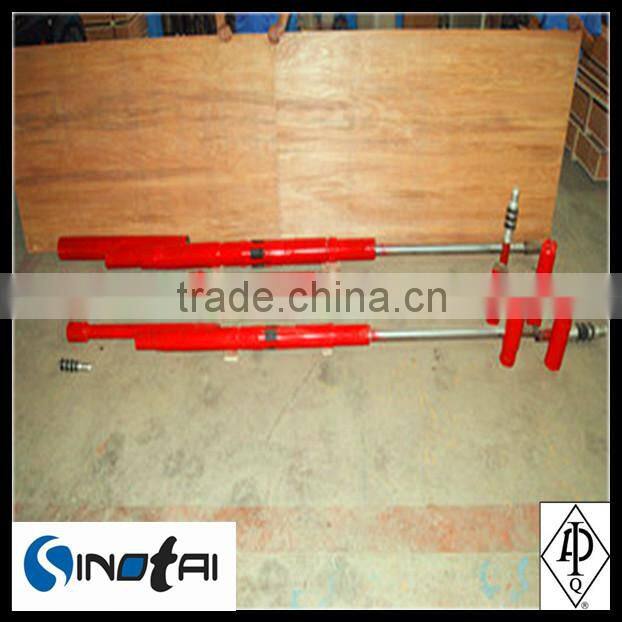

Model DYX-AF Liner Hanger with Packer
Features
1. A liner top packer is incorporated into a liner hanger.
2. The packer is set by compression.
3. Packer element has superior capacity to resist acid, alkali,
oil and high temperature.
4. The packer is capable of holding 5,000 psi differential pressure.
The liner hanger with packer could seal the annulus between liner and upper casing,and prevent the liquid and the gas from migration.After finishing cementing,set the packer,circulate the excess slurry,and don't affect the formation under the liner hanger.
Principle:
When run the liner to the designed depth,set the liner hanger,release the setting tools and finish cementing.After bumping the plug,pull the drill pipe,the claws on the setting tools expand out and act on the upper surface of the polished bore receptacle sleeve,lower down the drill pipe,shear the pins and the rubber sleeves expand to seal the annulus between upper casing and the poilished bore receptacle.
Features:
1,Design a self-locking rachet ring,set the packer easily and seal the annulus permanently.
2,Set the packer with 30-50t load.
3,Packer seal capability is 30 MPa.
4,Rubber could work well under 120°C environment.
Specifications
A:Φ244.5 X Φ177.8mm
B:Φ177.8 X Φ127mm
Property Parameters
| Specification,mm | A | B |
| Set Packer Load,t | 30 | 30 |
| Rated Load,t | 120 | |
| Sealing Capacity,MPa | 25 | 25 |
| Shearing Pressure of Cylinder Pins,MPa | 7-8 | 7-8 |
| Setting Packer,MPa | 12 | 12 |
| Body Max O.D.,mm | 215 | 152 |
| Body Min I.D.,mm | 155 | 108.6 |
| Length of the tie-back sleeve,mm | 2800 | 2800 |
| Tie-back Sleeve I.D.,mm | 187 | 133 |
| Upper Casing Thickness,mm | 10.0 11.05 11.99 | 9.19 10.36 11.51 |
