Product Details
| Place of Origin | Zhejiang, China | Brand Name | Chenf | |
| Model Number | CFV-5000 | Output Power | Other, 5000W | |
| Output Type | Single | Size | 560*320-530 | |
| Weight | 50KG | Input Voltage | 48V/96V/120V/220V/240V | |
| Output Voltage | 110/120/220/230/240 VAC | Type | DC/AC Inverters | |
| Output Frequency | 50/60 Hz±0.5Hz, 50/60 Hz±0.5Hz |
Product Description
High Frequency 5000W 48V 220V Grid Tie Solar Inverter,Micro Grid Tie Inverter,Off Grid Inverter 3 Phase,Solar Off Grid Inverter
Specifications
1) Off grid inverter
2) 70A automatic 3-stage battery charger
3) 3:1 surge ratio
4) Generator compatible
5) LCD display
6)Pure sine wave output
High Frequency 5000W 48V 220V Grid Tie Solar Inverter,Micro Grid Tie Inverter,Off Grid Inverter 3 Phase,Solar Off Grid Inverter
High Frequency 5000W 48V 220V Grid Tie Solar Inverter,Micro Grid Tie Inverter,Off Grid Inverter 3 Phase,Solar Off Grid Inverter
Product Features
- Pure sine wave output, available for sensitive load
- 4-step progressive charging, 7 battery type selector
- Fast and powerful charger with 30A and 70A
- Accept generator’s energy output
- High power factor
- Intelligent battery management system can extend battery’s life.
- LCD display
- Microprocessor control guarantees high reliability
- Protections: output short circuit, overload, low voltage
- Remote control function
High Frequency 5000W 48V 220V Grid Tie Solar Inverter,Micro Grid Tie Inverter,Off Grid Inverter 3 Phase,Solar Off Grid Inverter

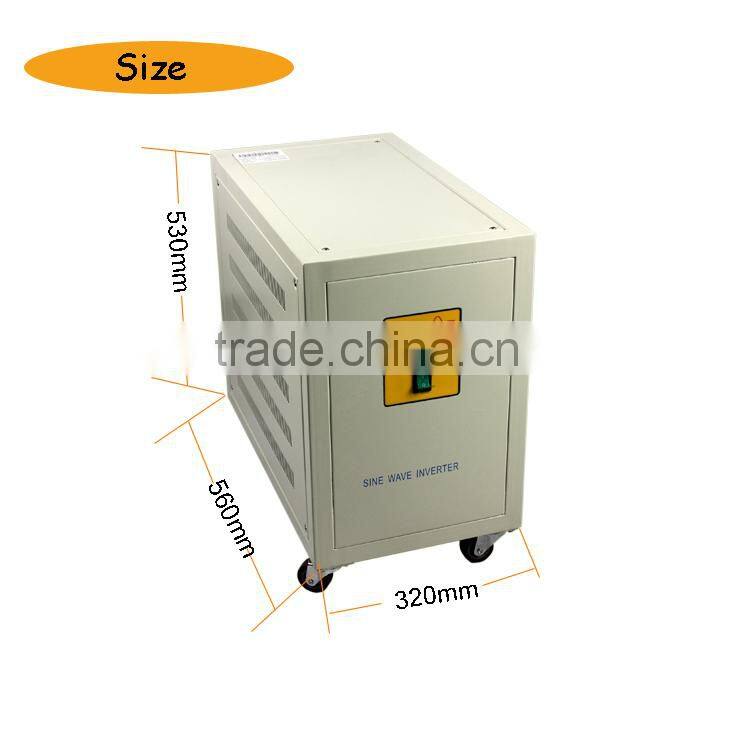

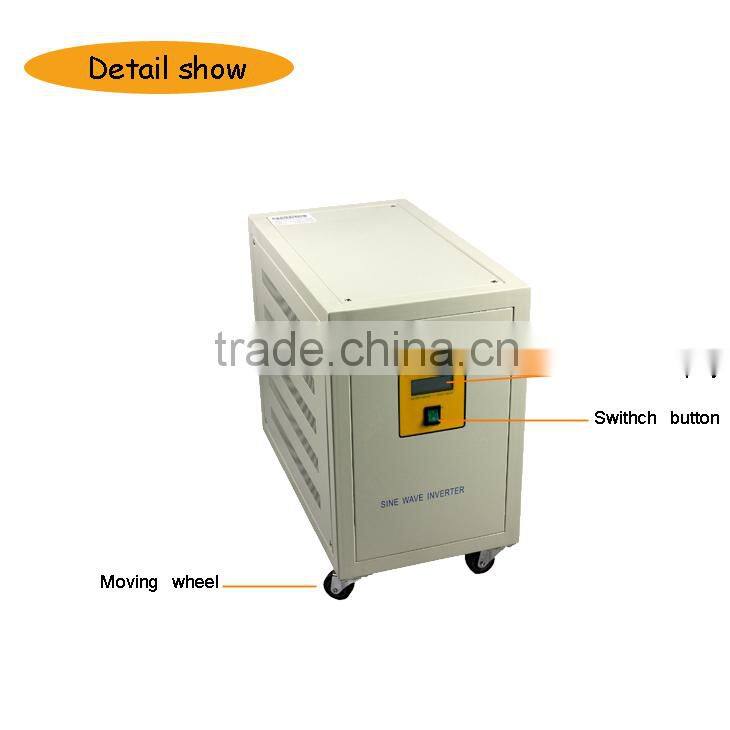

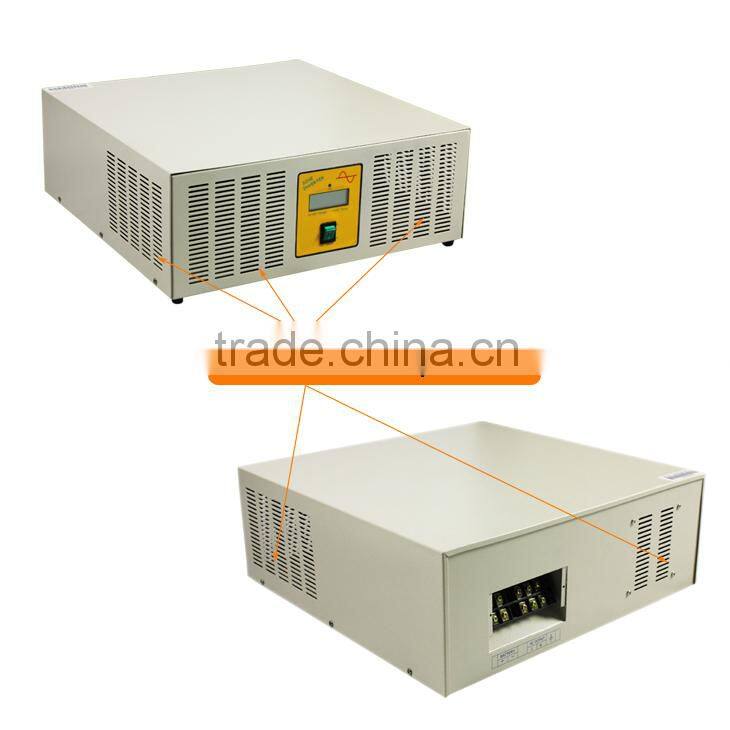

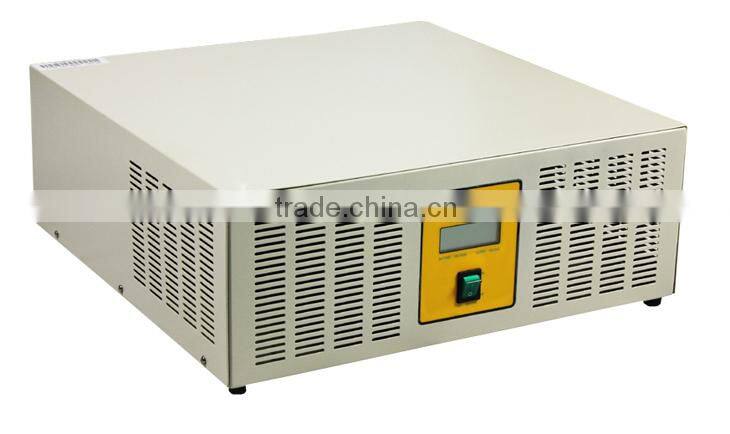

Product Image
High Frequency 5000W 48V 220V Grid Tie Solar Inverter,Micro Grid Tie Inverter,Off Grid Inverter 3 Phase,Solar Off Grid Inverter
High Frequency 5000W 48V 220V Grid Tie Solar Inverter,Micro Grid Tie Inverter,Off Grid Inverter 3 Phase,Solar Off Grid Inverter
Parameters
| Product Model | CF5000-48 | CF5000-96 | CF5000-120 | CF5000-220 | CF5000-240 |
| Rated Output Capacity | 5kVA | ||||
| Rated Battery Voltage | 48VDC | 96VDC | 120VDC | 216VDC | 240VDC |
| Over Voltage Shutoff | 68VDC | 134VDC | 170VDC | 309VDC | 340VDC |
| Over Voltage Recovery | 66VDC | 132VDC | 160VDC | 297VDC | 320VDC |
| Under Voltage Shutoff | 42VDC | 84VDC | 105VDC | 189VDC | 210VDC |
| Under Voltage Recovery | 48VDC | 96VDC | 120VDC | 216VDC | 240VDC |
| No-load Loss | 0.9A | 0.14A | 0.14A | 0.1A | 0.09A |
| Net Weight | 39KG (horizontal) 50KG (vertical) | ||||
| Dimensions (Lx W x H) | 500*500*185 (horizontal) 560*320*530 (vertical) | ||||
| Output Wave | Pure sine wave | ||||
| Display Mode | LCD | ||||
| Cooling | Fan | ||||
| Rated Output Voltage | 110/120/220/230/240 VAC | ||||
| Wave Distortion | ≤4% | ||||
| Output Frequency | 50/60 Hz±0.5Hz | ||||
| Dynamic Response | 5% | ||||
| Power Factor | ≥0.8 | ||||
| Over-load Capacity | 120% 1min,150% 10s | ||||
| Invert Efficiency | 90% Max | ||||
| Isolating Mode | Toroidal Transformer | ||||
| Noise (1m) | ≤40dB | ||||
| Insulating Strength | 1500VAC,1min | ||||
| Protection Functions | Input over voltage protection, Battery under voltage protection, | ||||
| Battery anti-reverse connection protection, Output overloadprotection, | |||||
| Output short circuit protection, Over temperature protection. | |||||
| Working Altitude | ≤4000m | ||||
| Ambient Humidity | 0~90%,Without Condensation | ||||
| In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement. | |||||
High Frequency 5000W 48V 220V Grid Tie Solar Inverter,Micro Grid Tie Inverter,Off Grid Inverter 3 Phase,Solar Off Grid Inverter
