Vulcanized Chevron Rubber Weave Fabric Conveyor Belt
- tianjin
- T/T
You May Like
-
Hebei Supplier Anti-slip/anti-skidding Fabric Reinforced Pattern Conveyor Belt
-
Slope Transportation Patterned v Conveyor Belts for Road Construction Application
-
Patterned Rubber Conveyor Belt
-
Anti-slip Chevron Patterned Conveyor Belt
-
Special Pattern Chevron Conveyor Belt
-
Patterned Conveyor Belt, V Belt
Product Details
| Place of Origin | Hebei, China | Brand Name | zhonghui | |
| Model Number | C-151014-19 |
woven bag packing
Product Description
Main Products
| 1 | CC conveyor belt | 8 | Chemical resistant conveyor belt |
| 2 | Polyester conveyor belt(ep) | 9 | Cold resistant conveyor belt |
| 3 | Nylon conveyor belt(NN) | 10 | Whole-core flame retartant conveyor belt |
| 4 | Steel cord conveyor belt | 11 | oil resistant conveyor belt |
| 5 | chevron conveyor belt | 12 | high temperature resistant conveyor belt |
| 6 | heat resistant conveyor belt | 13 | patterned conveyor belt |
| 7 | Common Flame retartant conveyor belt | 14 | sidewall conveyor belt |

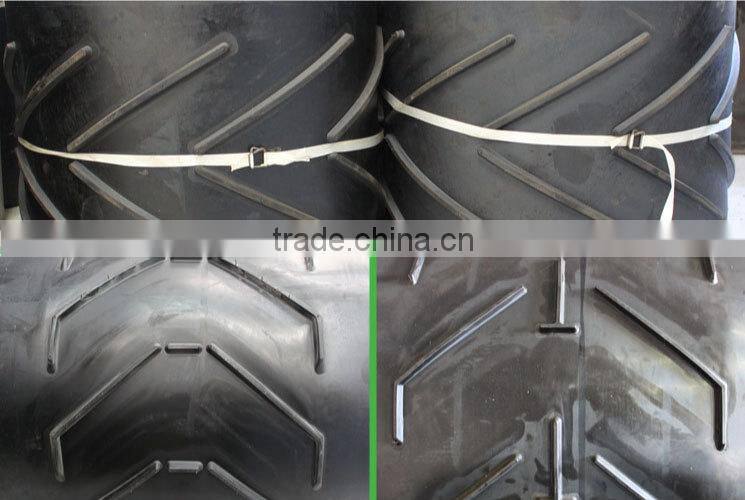

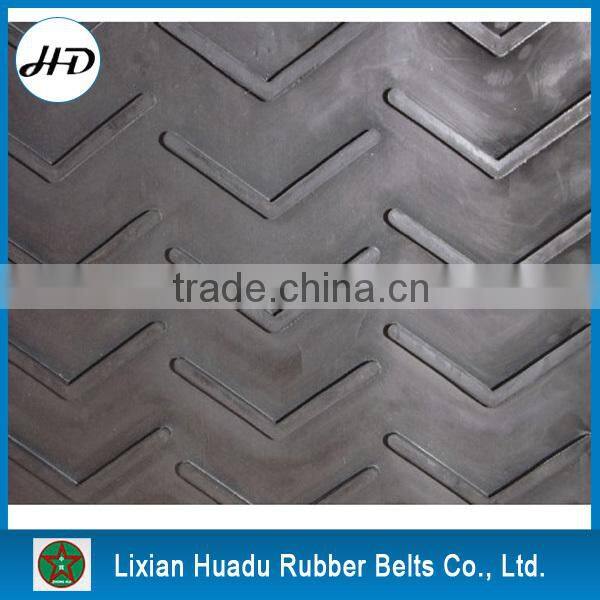

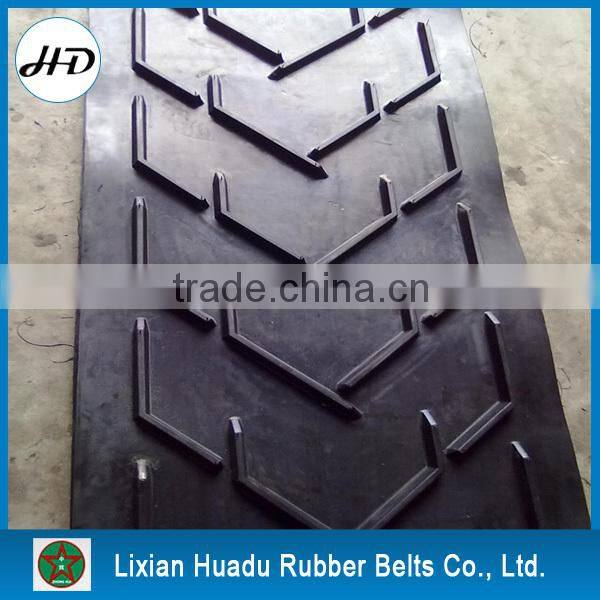

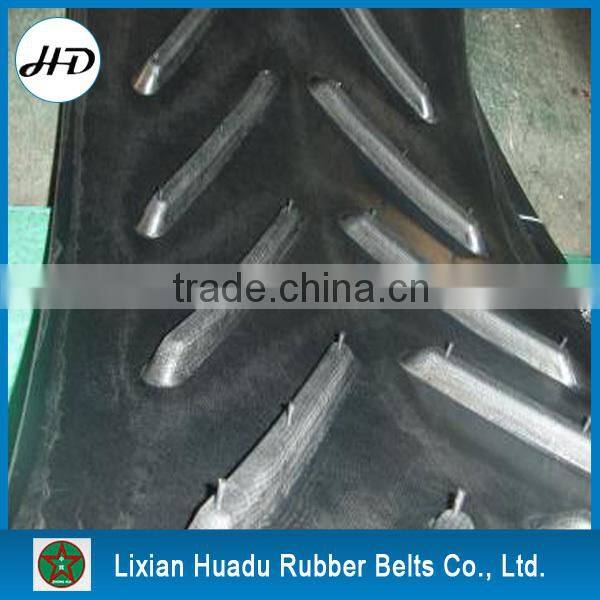

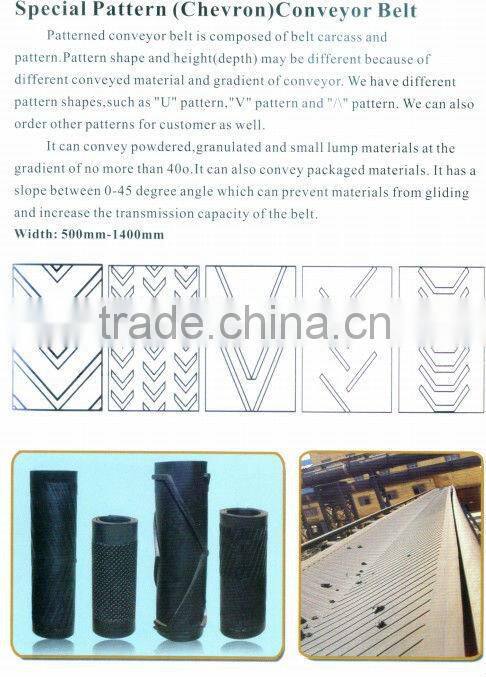

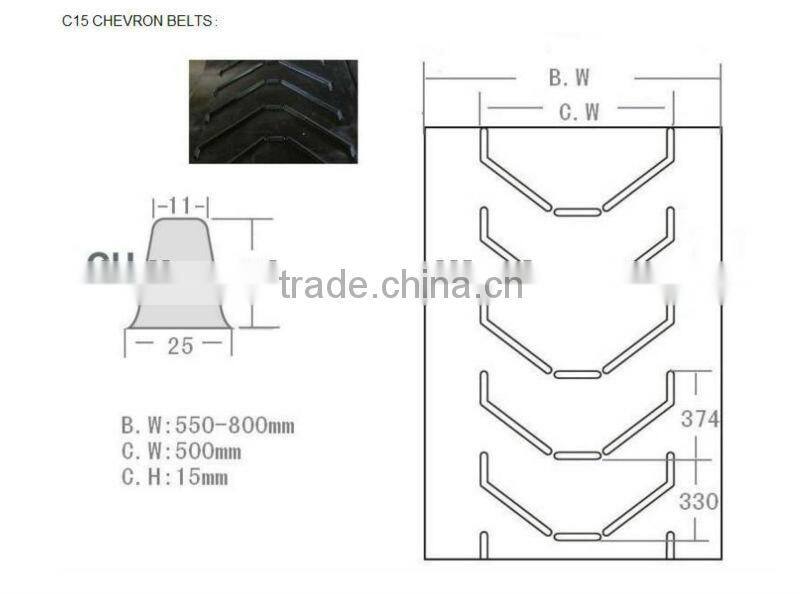

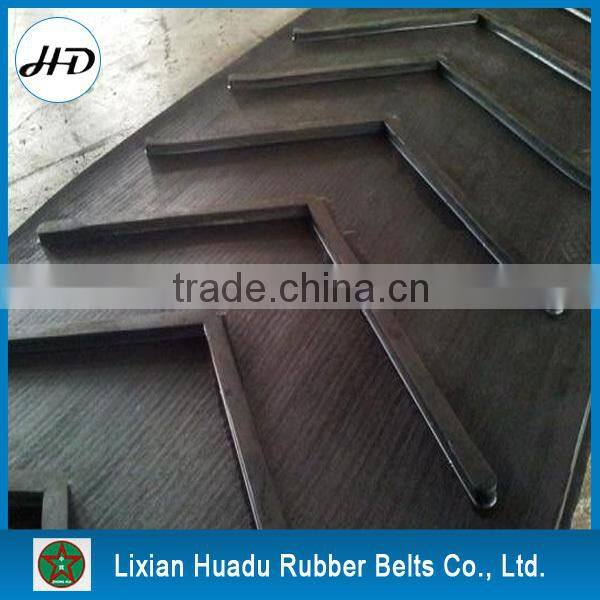

Chevron belts
Pictures:
Specifications of rubber conveyor belt
Belt type
| Fabric type
| Single Fabric strength (N/mm)
| Rubbercover thickness (mm)
| Ply
| Belt width (mm)
| |
Top rubber | Bottom rubber | |||||
Cotton Canvas (CC) conveyor belt | CC-56 | 56 | 3.0
4.5
6.0 | 1.5
3.0
6.0 | 2-10 | 300-2500 |
Nylon (NN)/Polyester(EP) conveyor belt | NN/EP-100 | 100 | ||||
| NN/EP-125 | 125 | |||||
| NN/EP-150 | 150 | |||||
| NN/EP-200 | 200 | |||||
| NN/EP-250 | 250 | |||||
| NN/EP-300 | 300 | |||||
| NN/EP-400 | 400 | |||||
| NN/EP-500 | 500 | |||||
| NN/EP-600 | 600 | |||||
Technical Standard of rubber conveyor belt
Adhesion & Elongation of the Belt | |||||
Belt Carcass | Adhesion | Elongation | |||
Between Plies N/mm | Between Rubber and Carcass | Longitudinal Elongation at Break %>= | Longitudinal Elongation at Referenc Load %<= | ||
Rubber thickness <=1.5mm | Rubber thickness >1.5mm | ||||
Cotton | >=3.2 | >=2.1 | >=2.7 | 10 | 4 |
NN | >=4.5 | >=3.2 | >=3.5 | 10 | 4 |
EP | >=4.5 | >=3.2 | >=3.5 | 10 | 4 |
Longitudinal Tensile Strength of Rubber Cloth (per ply) N/mm
| |||||
Cotton
| NN | EP | |||
CC | 100—500 | NN100 | >=98 | EP100 | >=98 |
NN150 | >=147 | EP150 | >=147 | ||
NN200 | >=196 | EP200 | >=196 | ||
Lixian Huadu Rubber Belts Co., Ltd. is a professional manufacturer of rubber conveyor and conveyor roller for 20years , located near to Beijing & Tianjin.
Conveyor Belt Standards:
GB/T 7984-2001,DIN22102,AS1332,BS490,RMA,JISK6322,SANS1173,etc

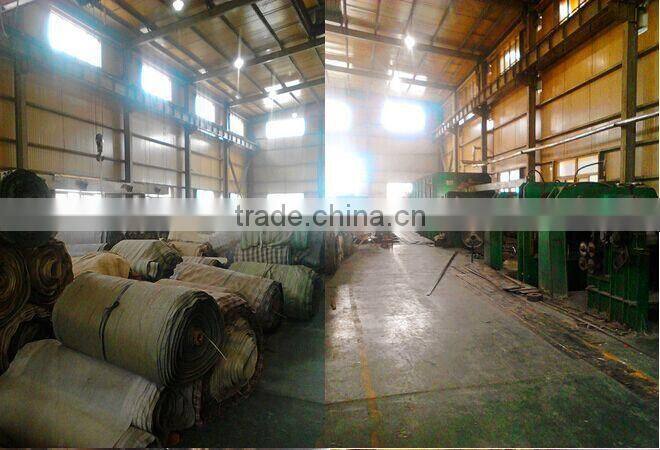

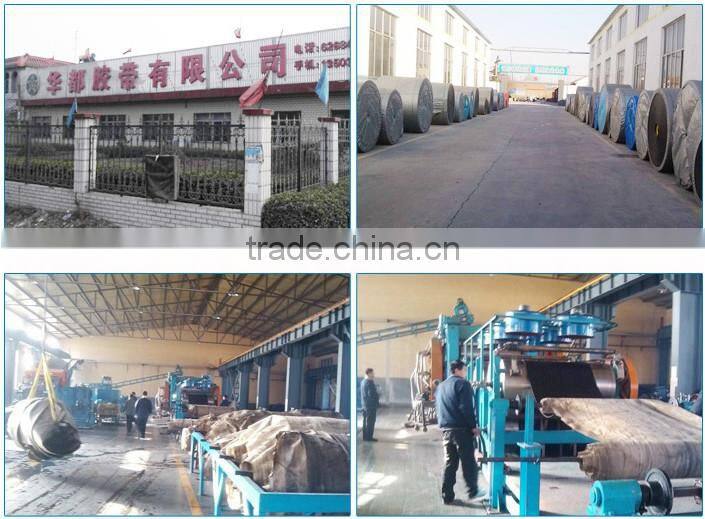

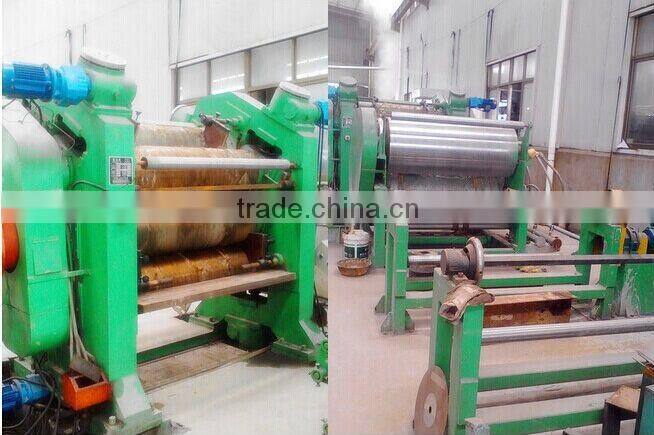

Our Company:
Testing:
Certification:
For more details,please inquiry us!
Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Sidewall conveyor belt (SW)
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (OHR/ OFR)
Cold Resistance conveyor belts, (CR)
Endless belts
Conveyor roller, idler
Conveyor Pulley, frame,bracket etc
WELCOM TO INQUIRY US.
Company Profile
Lixian Huadu Rubber Belts Co., Ltd. is a professional supplier of rubber products, located near to Beijing & Tianjin. We are near to Beijing-Guangzhou & Beijing-Kowloon railways and Beijing-Shenzhen Expressway, enjoying convenient transportation. Since inception, we have introduced advanced production equipment and testing instruments, and strived to produce high quality rubber products. Our main products are: a variety of general conveyor belts, steel cord conveyor belts, flat belts, etc. Our products are sold to more than 31 large and medium-sized cities and regions, well received by consumers. Our company insists on "Quality is Life". We won titles like "Trustworthy Unit" & "Product Quality Trustworthy Enterprise". We have has a high reputation in the industry. We warmly welcome friends to cooperate with us to create a brilliant tomorrow.
