TT100 Ultrasonic Thickness Gauge of Ceramics

Standard Package or as your requirement

Specifications

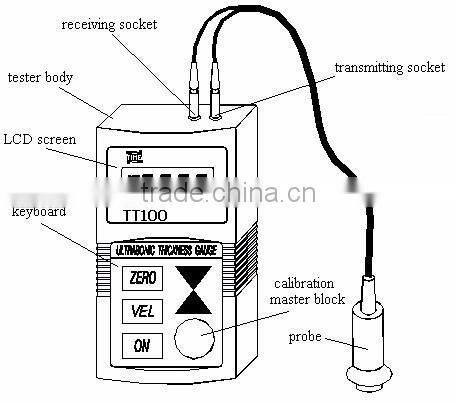

TT100 Ultrasonic Thickness Gauge

Scope of applications

The handheld microprocessor-controlled thickness gauge is designed for measuring the thickness of metals, and non-metallic materials e.g. aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave-conductor as far as it has two parallel surfaces on the top and bottom.

The TT100 can be used in industrial applications to perform precise measurements on various kinds of new materials, parts and components, and it can also be used to monitor various kinds of pipes and pressure vessels for the decrease of their thickness due to corrosion and/or erosion.

Main Features

1) Automatic transducer zero adjustment: automatically correct the system errors
2) Automatic non-linear compensation: within the full range, computer software is used
to correct the non-linear errors of transducer with the purpose of improving the accuracy
3) Keys up & down  are used for fast adjustment of sound velocity and thickness as well as fast
checking the thickness memory unit
4) Calibration of known sound velocity
5) Calibration of a known thickness (the sound velocity can be directly determined
according to a known thickness, avoiding the trouble of looking into table.)
6) Ten different thickness values can be stored and kept after switch-off
7) Coupling indication: the stability can tell if the coupling is normal
8) Sound velocity of five different materials can be stored
9) Indication at low voltage
10) Automatic switch off
11) Oil proof keyboard with longer service life
