ONTON R25N High Tensile Grouting Steel Pipe
- ShangHai port or Any Chinese port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | ONTON | |
| Model Number | R25N -- T76S | Type | Drill Pipe | |
| Machine Type | Drilling Equipment | Certification | Other, ISO\CE, ISO,CE | |
| Material | Other, Carbon Steel, C45E | Processing Type | Forging | |
| Use | Coal Mining |
Product Description

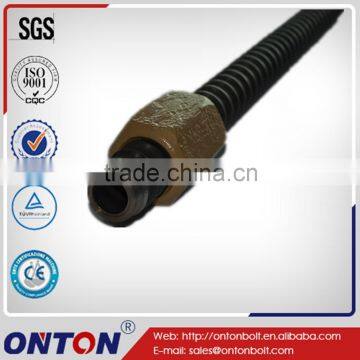

ONTON R25N High Tensile Grouting Steel Pipe
- Self drilling Rock Bolt
- R /T thread
- left/right hand thread
- R25N --T76S
- Customized
- Simultaneous Drill and Grout Installation
- Combines both operations into a single construction cycle, enabling high rates ofproduction.
- Fully Threaded Rod Sections
- Continuous thread ensures that rods can be cut and coupled at any point.
- No Casing Required
- Can be installed into loose or collapsing soils without the need for a temporary casing tosupport the borehole.
- Self-Drilling Injection Anchor
- Suitable for a range of applications, including: Soil Nails, Micro Piles, Ground Anchorsfor temporary works,
R25N | Outside diameter ( mm) | Average internal diameter ( mm) | Aver.cross sectional area (mm2) | Ultimate load capacity ( kN ) | Yield load capacity ( kN ) | Average tensile strength Rm ( N/ mm2 ) | Average yield strength Rp0,2 ( N/ mm2 ) | Weight (kg/m)
|
25 | 15 | 267 | 200 | 150 | 750 | 580 | 2.1 | |
We can supply products according to your requirements | ||||||||
- SDA (IBO) is a kind of safety product.
- Safe products is the most important thing of engineering safety.
- We only produce safe products.
- Security is not just lip service , SGS report ...
- Established in the early 1990s,25 years experience in manufacturering Self-drilling Anchor Rock Bolt
- The first and best manufacturer of SDA ( Self-drilling Anchor Rock Bolt ) in China
- ONTON Techology Co., Ltd. Is the main compiling units of the standard named "Technical Terms of Hollow Anchor Bolts" >>>
- We participate in the ministry of railways Self-drilling Anchor Rock Bolt standards and almost all of the high-speed railway construction in china.
- OEM accepted >>>
CE ISO9001 TÜV Rheinland SGS
check it>>> check it>>> check it>>> check it>>>
Custom process:
Generally: 50 pcs anchor rock bolt / bunndle,outer with woven bags or as requirement
If you have any question of High Tensile Grouting Steel Pipe , please feel free to contact:
Tiger Tel: 0086-028-87678353
FAQ for High Tensile Grouting Steel Pipe
1,What is SDA?
Self-Drilling Anchor
2,The application of the SDA?
Mine,tunnel,slope,foundation pit
3,What is our transportation way?
By sea,by air,by land.
