Home > Products > Drilling Tools > NC26-35(2 3/8IF) Drill Collar

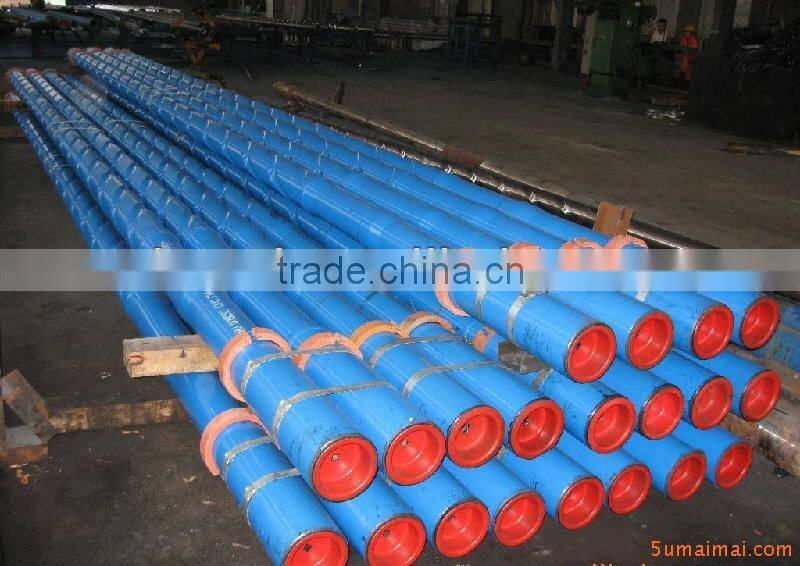

NC26-35(2 3/8IF) Drill Collar
- Shanghai Tianjin Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Sinotai | |
| Model Number | NC26-35(2 3/8IF) | Type | Other, Reverse Circulation Junk Magnets | |
| Machine Type | Drilling Equipment | Certification | API | |
| Material | Stainless Steel | Processing Type | Forging | |
| Use | Well Drilling |
standard
Product Description
Specifications
1.NC26-35(2 3/8IF) Drill Collar2.Easy operation
3.API standard
4.AISI 4145H modified steel
NC26-35(2 3/8IF)
Drill Collar
1. Drill collars are manufactured from AISI 4145H modified steel, and are supplied in the "as rolled" surface finish condition. Alternative surface finishes are available.
2.Drill collars are trepanned and drifted to API Spec 7-1. Full-length heat-treatment processes ensure that mechanical properties meet or exceed API Spec 7-1 requirements.
3.A hardness range of 285-341, Brinell hardness and Charpy "V" notch minimum impact strength of 40 ft-lb at 70 F are guaranteed one inch below the surface.
The main technical performance and specification for drill collar:
Model of connection | OD | ID | Length mm | DFmm | Bending Strength Ratio | ||
| mm | in | mm | in |
|
|
|
NC23-31 | 79.4 | 3 1/8 | 31.8 | 1 1/4 | 9150 | 76.2 | 2.57:1 |
NC26-35(2 3/8IF) | 88.9 | 3 1/2 | 38.1 | 1 1/2 | 9150 | 82.9 | 2.42:1 |
NC31-41(2 7/8IF) | 104.8 | 4 1/8 | 50.8 | 2 | 9150 | 100.4 | 2.43:1 |
NC35-47 | 120.7 | 4 3/4 | 50.8 | 2 | 9150 | 114.7 | 2.58:1 |
NC3850(3 1/2IF) | 127.0 | 5 | 57.2 | 2 1/4 | 9150 | 121.0 | 2.38:1 |
NC44-60 | 152.4 | 6 | 57.2 | 2 1/4 | 9150 or 9450 | 144.5 | 2.49:1 |
NC44-62 | 158.8 | 6 1/4 | 57.2 | 2 1/4 | 9150 or 9450 | 149.2 | 2.91:1 |
NC46-62(4IF) | 158.8 | 6 1/4 | 71.4 | 2 13/16 | 9150 or 9450 | 150.0 | 2.63:1 |
NC46-65(4IF) | 165.1 | 6 1/2 | 57.2 | 2 1/4 | 9150 or 9450 | 154.8 | 2.76:1 |
NC46-65(4IF) | 165.1 | 6 1/2 | 71.4 | 2 13/16 | 9150 or 9450 | 154.8 | 3.05:1 |
NC46-67(4IF) | 171.4 | 6 3/4 | 57.2 | 2 1/4 | 9150 or 9450 | 159.5 | 3.18:1 |
NC50-67(4 1/2IF) | 171.4 | 6 3/4 | 71.4 | 2 13/16 | 9150 or 9450 | 159.5 | 2.37:1 |
NC50-70(4 1/2IF) | 177.8 | 7 | 57.2 | 2 1/4 | 9150 or 9450 | 164.7 | 2.54:1 |
NC50-70(4 1/2IF) | 177.8 | 7 | 71.4 | 2 13/16 | 9150 or 9450 | 164.7 | 2.73:1 |
NC50-72(4 1/2IF) | 184.2 | 7 1/4 | 71.4 | 2 13/16 | 9150 or 9450 | 169.5 | 3.12:1 |
NC50-77 | 196.8 | 7 3/4 | 71.4 | 2 13/16 | 9150 or 9450 | 185.3 | 2.70:1 |
NC50-80 | 203.2 | 8 | 71.4 | 2 13/16 | 9150 or 9450 | 190.1 | 3.02:1 |
Skype: sally_sinotai
Mob: 86-15154675163
Company Profile
As a professional supplier of OCTG, drilling equipment and workover service, Sinotai Petroleum Equipment Co., Ltd. lies in the production base of petroleum equipment and China's second largest oil field --Shengi Oilfield. Our company is a high-tech enterprise in Dongying City with business scope covering the sale, trading, post-sale service and technological development of a wide variety of petroleum equipment. Besides OCTG, we provide our customers with other drilling and oil recovery equipment like fishing tools, cementing tools, workover rigs, pumping units and OCTG accessories. The striving target of our company is "Prestige first, Quality supreme; The shortest delivery time, The lowest price, The best quality". Customers' needs are our first priority and customer satisfaction is the bottom line by which we measure our success.
