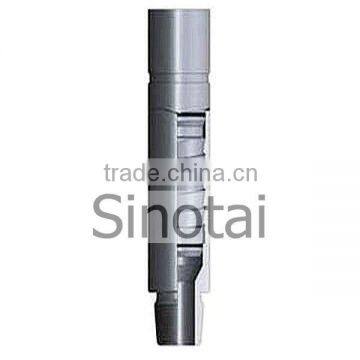

Safety Joint Type AJ
- main ports
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Sinotai | Model Number | AJ type | |
| Weight | 15KG | Certification | API, API | |
| Warranty | 18 months | After-sales Service Provided | Engineers available to service machinery overseas |
wooden case
Product Description
1.The safety joint type AJ is an essential safety tool for connecting the pipes in the well. It is used for drilling, fishing, tubing, washover and test operation.
2.Engineered to withstand internal and external pressure, it also features in coarse threads that resist wedging or loosening of the tool during operation. The torque may be transmitted in either left-or right-hand direction.
Safety Joint Type AJ
Type | O.D. mm(in) | Connection | I.D. mm(in) | Max. Working Tension kN(kIbf) | Max. Working Torque kN•m(kIbf•ft) |
AJ-C 86 | 86(33/8) | NC26(23/8IF) | 44(147/64) | 925(208) | 6.34(468) |
AJ-C95 | 95(33/4) | 27/8REG | 32(11/4) | 1370(308) | 10.15(749) |
AJ-C105 | 105(41/8) | NC31(27/8IF) | 54(11/8) | 1340(301) | 12.70(937) |
AJ/S-J73(UP) | 105(41/8) | 27/8TBG 27/8UPTBG | 58(29/32) 54(11/8) | 1340(301) | 12.70(937) |
AJ-C108 | 108(41/4) | 31/2REG | 38(11/2) | 2005(451) | 13.7(1010) |
AJ-C121 | 121(43/4) | NC38(31/2IF) | 57(21/4) 68(243/64) | 1515(341) | 17.65(1302) |
AJ-C140 | 140(51/2) | 41/2REG | 57(21/4) | 2560(576) | 27.35(2017) |
AJ-C146 | 146(53/4) | NC46(4IF) | 83(317/64) | 2255(507) | 30.70(2264) |
AJ-C152 | 152(563/64) | NC46(4IF) | 83(317/64) | 2130(479) | 34.05(2511) |
AJ-C156 | 156(69/64) | NC50(41/2IF) | 95(33/4) | 3075(691) | 35.10(2588) |
AJ-C159 | 159(61/4) | NC50(41/2IF) | 80(35/32) 95(33/4) | 3110(699) | 38.90(2869) |
AJ-C171 | 171(647/64) | 51/2REG | 70(23/4) | 3710(834) | 54.45(4015) |
AJ-C178 | 178(7) | 51/2FH | 92(35/8) 102(41/64) | 3385(761) | 57.00(4204) |
AJ-C197 | 197(73/4) | 65/8REG | 89(31/2) | 3650(821) | 82.75(6103) |
AJ-C203 | 203(8) | 65/8REG | 127(5) | 2275(511) | 32.00(2360) |
AJ-C229 | 229(9) | 75/8REG | 101(331/32) | ||
AJ-C254 | 254(10) | 85/8REG | 121(43/4) | ||
AJ-C115 | 115(417/32) | 31/2TBG | 72(253/64) | 600(135) | |
AJ-J165 | 165(69/64) | NC50 | 83(317/64) | 3360(755) | 48.90(3606) |
AJ/S-J73(DP) | 105(41/8) | 27/8DP | 47(127/32) | 1365(307) | 11.90(878) |
AJ/S-102 | 127(5) | 4UPTBG | 88(315/32) | 658(148) | - |
