Automatic Robotic Palletizer for Cases Stacking Carton Palletization
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Automatic Robotic Palletizer for Carton Palletization Robot
-
Robot Palletizer Palletizing Weight(Gripping Device)
-
High Quality Automatic Robot Palletizing
-
Hot Sale Automatic Palletizing Robot for Palletization
-
High Quality Robot Industrial Pallet Stacking Robots
-
Manufacturer of Robotic Palletizers in Stacking Line
Product Details
| Condition | New | Application | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | |
| Packaging Type | Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch | Packaging Material | Glass, Metal, Paper, Plastic, Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | 2.2KW | |
| Place of Origin | Shanghai, China | Brand Name | MOTECH | |
| Model Number | MXY-SR-210 | Dimension(L*W*H) | 2100mm*1300mm*1500mm | |
| Weight | 800kg, 680KG | Certification | ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Brief introduction

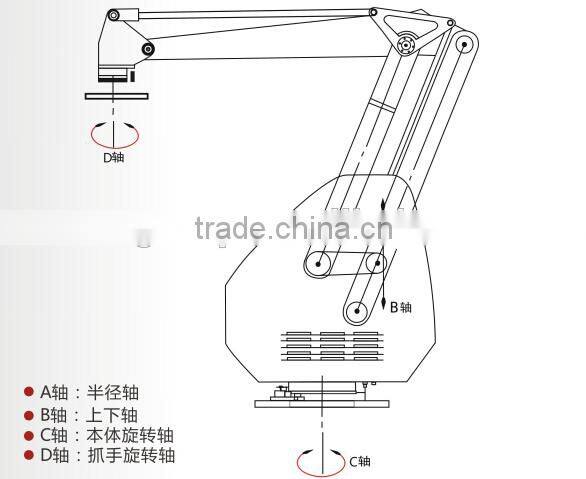

MXY-SR series palletizing robot is four free-degree cylinder surface coordinate palletizing robot, mainly move by horizontal movement axis, vertical movement axis, rotation foundation and front hand axis.
Main Technical Specification:
Model | MXY-SR-130 | MXY-SR-210 | ||
Mechanical structure | Multiple joint robot | |||
Movement method |
| |||
Palletizing weight(contains machine tongs) | 130kg | 210kg | ||
Designed palletizing capability | 850c/hr-1200c/hr | 1400c/hr-1600c/hr | ||
Movement axle | Normally 4jiont(the most can be 5jionts) | |||

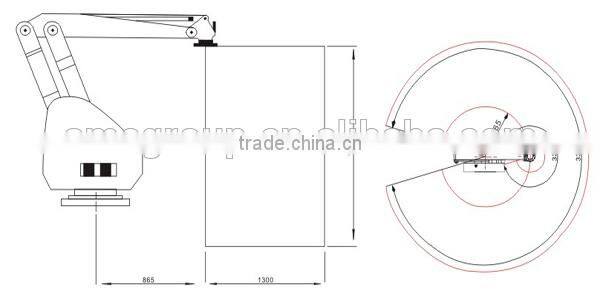

Movement scope | Z-Axis(vert) | 2100mm | 2300mm | |
R-Axis(long) | 1300mm | 1500mm | ||
Axis(Turn) | 33 0 · | |||
∝ Axis(Wrist) | 33 0 · | |||

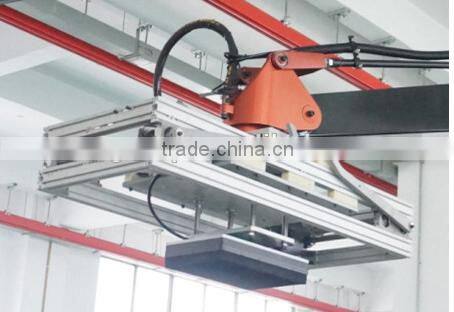

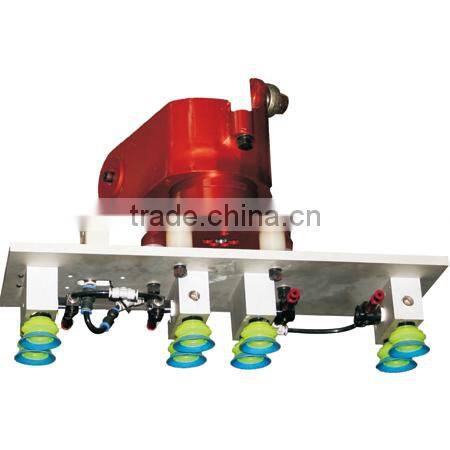

Machine tongs | pallet, finger, sucker and so on | |||

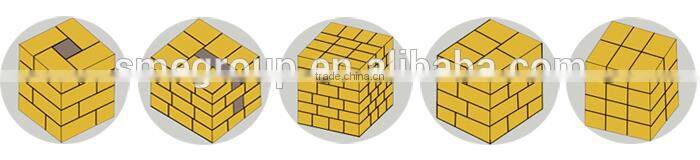

Palletizing memory ability | (400 Normally 30kinds(the most can be 400kinds) | |||
Teaching method | Manual teaching/teaching support/teaching cancel(optional) | |||
Power (200V 3PH 50HZ) | 2KVA | 6.5KVA | ||
Compressed air | 0.5Mpa | 0.5Mpa | ||
Robot weight(don’ t contains tongs) | 800kg | 1150kg | ||
Configuration Sheet
No | Parts name | Model | QTY | Supplier | Note |
1 | A axis servo motor | MSME152G1H | 1 | Panasonic | Japan |
2 | B axis servo motor | MDME402G1H | 1 | Panasonic | Japan |
3 | C axis servo motor | MDME402G1H | 1 | Panasonic | Japan |
4 | D axis servo motor | MSMD042G1U | 1 | Panasonic | Japan |
5 | A axis servo amplifier | MDDHT5540 | 1 | Panasonic | Japan |
6 | B axis servo amplifier | MFDHTB3A2 | 1 | Panasonic | Japan |
7 | C axis servo amplifier | MFDHTB3A2 | 1 | Panasonic | Japan |
8 | D axis servo amplifier | MBDHT2510 | 1 | Panasonic | Japan |
9 | A axis synchronous belt | OMEGA HP B25 | 1 | OPTIBELT | Germany |
10 | B axis synchronous belt | OMEGA HP B25 | 1 | OPTIBELT | Germany |
11 | C axis synchronous belt | OMEGA HP B15 | 1 | OPTIBELT | Germany |
12 | B axis screw | R50*20-S | 1 | HIWIN | Taiwan |
13 | C axis screw | R45*12-S | 1 | HIWIN | Taiwan |
14 | B axis slider, guild rail | SNS35LR2SSC1-840 | 2 | THK | Japan |
15 | C axis slider, guild rail | SNS35LR2SSC1-600 | 2 | THK | Japan |
16 | A axis reducer | FC-A75-69 | 1 | Sumitomo | Japan |
17 | D axis reducer | F2C-T155 | 1 | Sumitomo | Japan |
18 | Controller | / | 1 | ADI | America |
19 | Touch screen | GP2301H | 1 | Pro-face | Japan |
20 | Regenerative resistor | RXLG500~1000 | 4 | JIAYINGDA |
|
21 | Limit switch | SL1-AK | 5 | AZBIL | Japan |
22 | Optoelectronic switch | E3Z-D82 | 5 | Omron | Japan |
23 | Solenoid valve | SY5120/7120 | 2 | SMC | Japan |
24 | Press-bag cylinder | MGPM25 | 2 | SMC | Japan |
25 | Hand grab cylinder | CG1BN63 | 4 | SMC | Japan |
26 | Bearing | /// | 6 | SKF | Switzerland |
We provide:
1. Best product quality and competitive price
2. On time delivery and the shortest delivery time
3.One year warranty: If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
4. OEM and customized service, products could be customed as your requirements.
5. User manuals will go with relative machines.
We assure:
1. All products will be checked before delivery
2.Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
3.Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Q1.Are you a manufacturer or a trading company ?
A:
We are a professional manufacturer of Pre-packing and after-packaged machine.
Q2.Where is your factory located ? How can I visit there ?
A:
Our factory is located in Shanghai City. From Pudong airport or Hongqiao airport
Q3.How to support me if i don't know how to use it?
A:
Free training within the warranty by tel and mail or skype. We also can dispatch our
technician to customer’s company if customer agree the air ticket and hotel.
Q4.What's the pre-sale service of your company?
A:
Professional Advice about Market, machines, processing , materials, packing can be supplied.
Q5. What's the after-sale service of your company?
A:
1. Allocation chart
2. Operation manual
3. One year warrantee, life time maintenance with cost price.
4. Free easy broken spare parts
5. First installation can be done by engineer.
6. Training workers in customer’s factory.
Q6. If machines wearing parts need changing, what should we do?
A:
We can offer the wearing parts all the time, and offer video.
Q7. What's the payment terms if we want to buy the machines?
A:
L/C, 100%T/T,T/T 30% down payment, 70% balance before delivery.
