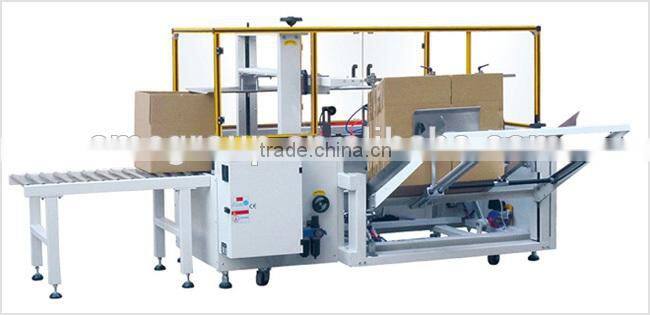

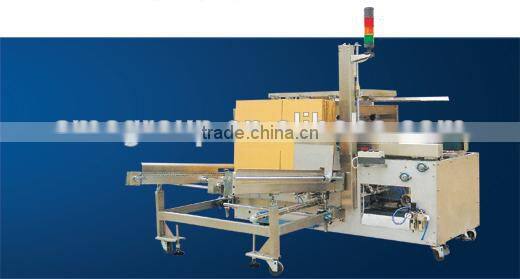

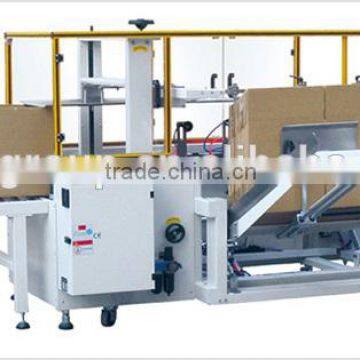

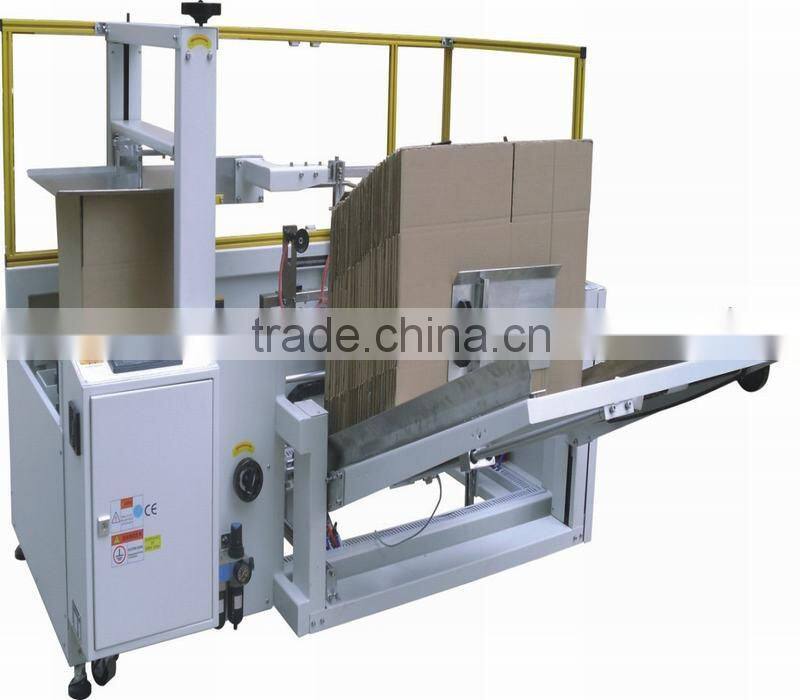

Automatic Carton Opening Machine MKXJ-400F
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | |
| Packaging Type | Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch | Packaging Material | Glass, Metal, Paper, Plastic, Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V 220V 50/60HZ | Power | 300W, 300W | |
| Place of Origin | Shanghai, China | Brand Name | MOTECH | |
| Model Number | MKXJ-400F | Certification | ISO | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Product Detai
Automatic Carton Opening Machine MKXJ-400F
The machine can finish a series of operations, such as carton opening, shaping ,folding and sticking the adhesive tape. It can open vertical cardboard and correct the right-angle automatically. Automatic carton erector machine is a case packer that deals with unpacking ,carton flexing and packing. This machine adopts PLC and touch screen to control. As a result, it is more convenient to operate and manage. Additionally, it can reduce labour input and lower labour intensity. It is the ideal choice of the automation producing lines. It will greatly reduce the cost of packing. Hot melt adhesive can also be utilized in this machine.
Main performance parameter:
1. Machine type: MKXJ-400F
2. Power supply: 220V/380V 50/60HZ 300W
3. Carton size: L:200-450 W:150-400 H:100-350mm
4. Speed: 8-12 carton /min (according to the carton size )
5. Tape width: 48/60 mm
6. Air source: 6-7kg
7. Dimension: L2000*W1900*H1450mm
Application(Automatic Carton Erector):
Automatic Carton Erector is a kind of flow-line equipment, using for opening boxboards, folding bottoms of boxboards, sealing bottoms of boxboards automatically on a large scale production; it is used widely for packing all sorts of productions with papery boxboards, it is indispensable for automatic productions.
Automatic Carton Erector SF-01KX
Feature:
This is Automatic Carton Erector.
1 Vertical storage, cartons can be added at any time without stopping the machine;
2 Suitable for forming and sealing cartons of the same size.
3 Manually adjust to change the carton sizes(finishing in 2-3minutes);
4 Advanced photoelectricity induction control system
5 Rationally designed, the forming, folding and sealing process are accomplished simultaneously;
6 Cutter Safety system to prevent hands form stabbed by the cutter heavy duty built, both steel and stainless steel types
Specification:Model SF-01KX
Carton Size(L× W× H)200~450× 150~400× 100~350mm
Table Height: 600mm~720mm
Working Speed: 8~12PCS/min.
Tape Width48/60/75mm
Air Resource: 5~6kg/cm2
Power Supply: 200W 220V 50Hz
Machine Size(L× W× H): 2000× 1900× 1450mm
Weight: 400kg
Automatic Boxes Opening Machine (HCKX-560)
Main Features:
1. Automatically finish opening boxes, make the shape, folding, in meanwhile can sticking the tapes itself. Save plenty workers and time as well.
2. Suitable for all kinds of boxes, adjusting different sized boxes in very short time.
3. Entirely machinery working stable in any kind of working time, and good shaped appears after packing.
4. International system, the machinery parts all from the famous international brands
5. Easy for worker to handle, easily for worker on maintenance.
6. Automatically correcting the right angles for the boxes.
Our Factory:
Motech. has been providing world-class quality, service, and support since 1997. In that time, we have completed more than 25,000 custom projects for customers worldwide. Our customers, which range from start-up operations to Fortune 500 multinational corporations, can be found a broad range of industries, including:
•Medical
•Pharmaceutical
•Energy
•Food Processing
•Government
•Aerospace
•Electronics/Semiconductor
•Telecommunications/Fiber Optics
•Packaging/Material Handling
•General Manufacturing
Our machine combine a tightly crafted and functional design with optimum ease of operation and a long life span. Installation is just a matter of “pack”, and smart design ensure that hygiene standards and maintained at all times.
SME has 3 manufacturing sites distributed in China. With its own sales office in Shanghai, supported by some 20 staff and dealers worldwide, its e-business marketplace and global distribution system, SME is always close to its customers for the supply of both products and services.
 Our brands are the cornerstone of that investment and are our commitment to each customer. Offering some of the world’s best known and top-performing brands in electronics, telecommunications, automotive and electrical, SME stands as the world’s premier provider of circuit protection.


Our Clients Visiting us
Our Certifications
The main equipments we can provide
Our Services
We provide:
1. Best product quality and competitive price
2. On time delivery and the shortest delivery time
3.One year warranty: If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
4. OEM and customized service, products could be customed as your requirements.
5. User manuals will go with relative machines.
We assure:
1. All products will be checked before delivery
2.Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
3.Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
4.Operation Guidance: If you have any problem with operation, please feel free to contact us
Matters not mentioned here could be discussed.
