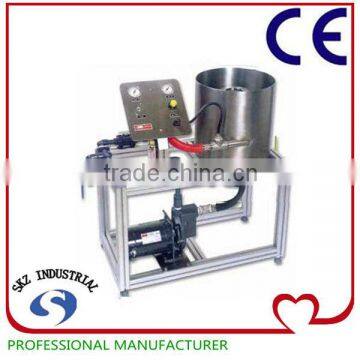

Laboratory Flotation DeLnking Cell

Specifications

Laboratory Flotation DeLnking Cell

Flotation deinking method is based on the principle of mine ore, according to the fiber, filler and ink composition of wettable, flotation cell in the 10 to 150 micron ink particles adsorbed on the air bubbles, floating to the surface to remove the pulp, fiber and filler remained in the pulp.

It is mainly composed of a flotation tank, the circulation line, paper pulp pump, air bubble generating device, liquid discharging pipe.

Parameters:

1. Outfall up and down range of activities 0 - 100

2. Flow calculation control

3. Tank capacity: 28 liters

4. Treated pulp capacity: 280g dry pulp

5. Pulp concentration: 0.8% ~ 1.2%

6. Tank size: Φ380 × 380mm

7. Tank material: stainless steel (1Cr18Ni9Ti)

8. Air requirement: the maximum amount of 95psi

9. Gas meter: 0.25 ~ 2.5 m3 / h adjustable

10. Flotation deinking Temperature range: 50 ~ 70 °C controlled adjustable

11. Heating power: 2.2KW Voltage 220V

12. Pulp material circulation: Stainless steel pump

13. Pump motor power: 750W Voltage 380V

14. Pump motor speed: 1400 r / min

15. Heat pump temperature: 0 ~ 100 °C

16. Pump rated flow rate 3.6 cubic meters / hour

17. Pump suction and discharge kinematic viscosity: 3000 centipoise (cp)

18. Tank size: Φ380 × 380mm
