11 Inch ac 380/420 v Radiator Fan 280x280x80
- shenzhen
- Credit Card
You May Like
-
92mm dc Explosion Proof Exhaust Fan / 3.6 Inch Explosion Proof Industrial Fan
-
Ventilation Fans 92 mm
-
92*92*32mm Axial Cooling Fan/ 3.6 Inch Industrial Motor Fan
-
6 INCH 110/120V 220v/240v ac Waterproof Exhaust Fan IP54 IP55 IP58 IP68 150X150X51mm
-
dc Fan 172 X 150 X 51mm
-
3.2 Inch ac Motor Fan 80*80*38mm
Product Details
| Electric Current Type | AC | Mounting | Other, axial flow fan | |
| Blade Material | Other, aluminum alloy,plastic | Place of Origin | Guangdong, China | |
| Brand Name | topfan/OEM | Model Number | MX28080ABL38 | |
| Voltage | 380/420V | Power | 120W | |
| Air Volume | 1341/1512CFM | Speed | 2400/2650RPM | |
| Certification | CCC, CE, ROHS, UL | After-sales Service Provided | Overseas service center available |
Product Description

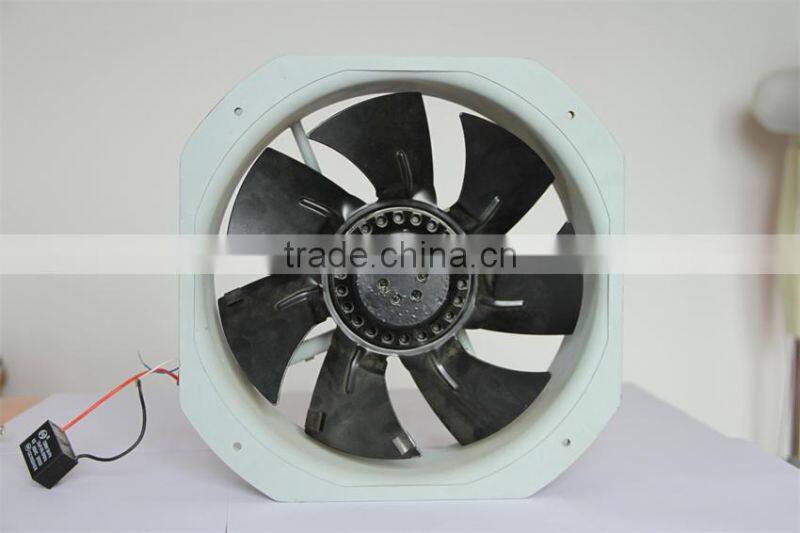

11 inch ac 380/420 v radiator fan 280x280x80
Specifications:
| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | |
| Part No. | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX28080ABL11 | B | 110/120 | 50/60 | 1.2 | 120 | 2400/2500 | 1341/1512 | 37.9/42.8 | 136.7/154.1 | 65/70 | 2800 |
| MX28080ABL22 | B | 220/240 | 50/60 | 0.55 | 120 | 2400/2650 | 1341/1512 | 37.9/42.8 | 136.7/154.1 | 65/70 | 2800 |
| MX28080ABL38 | B | 380/420 | 50/60 | 0.36 | 120 | 2400/2650 | 1341/1512 | 37.9/42.8 | 136.7/154.1 | 65/70 | 2800 |
Shipment
1. FOB Shenzhen or HongKong (mass production)
2. DHL,UPS,FEDEX,TNT or any other international express (sample or small quantity)
<<<More details can be discussed.>>>
Payment
T/T and Western Union
1. The payment for the high value sample will be charged.
2. The payment for the low value sample is free, but the freight should be paid by you.
Delivery Time
Generally, 500~1000pics 10 days after confirming the PI
Our Company
Alibaba: http://topfan-china.en.china.cn

Shenzhen Topfan-China Development Technology Co., Ltd, founded in 1996 in Shenzhen China, is professional manufacturer on dc brushless fans and ac fans. Products are ISO9000, UL, CE, RoHS and TUV certificated and good sellers both at home and abroad, including Europe, North America, Asia(Korea and India) etc. The products, including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor, shades pole and RC ac fans etc, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, home appliances and others.
Based on mutual benefit and development, we'll make our biggest efforts to do everything better for our customers.
More detail information, please contact with me as soon as possible ! Thanks.
