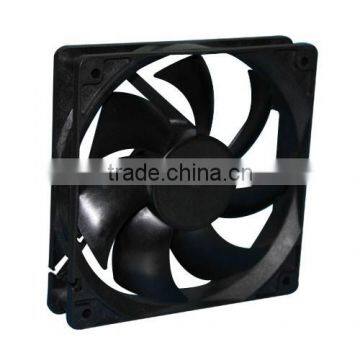

2000 rpm Fridge / Computer Case Cooling Fans 12V DC Axial Fan Motor 4.5 Inch
- shenzhen
You May Like
Product Details
| Electric Current Type | AC | Mounting | Other, cooling fan | |
| Blade Material | Stainless Steel | Place of Origin | Guangdong, China | |
| Brand Name | OEM | Model Number | M115AA2H | |
| Voltage | 220/240V | Power | 16/14W | |
| Air Volume | 60/76CFM | Speed | 2400/2600RPM | |
| Certification | CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV |
Product Description
2000 rpm Fridge / Computer Case Cooling Fans 12V DC Axial Fan Motor 4.5 Inch
Brushless axial dc fan 120mm 4.7inch, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.
Detailed Product Description:
♦ Voltage:12V , 24V, 48V
♦ Insulation Resistance:10M AT 500VDC
♦ Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
♦ Opetation Temperature:-10℃~70℃(Ordinary humidity)
♦ Storage Temperature:-40℃~70℃(Ordinary humidity)
♦Life Expectancy:Ambient temperature 25℃ and humidity 65% ( Ball bearing:50,000Hours , Sleeve bearing:30, 000Hours)
Description:
♦ Brushless DC Fan, Axial DC Fan, DC Motor Fan,CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage.
♦ Various Size.
♦ High speed , Middle speed, Low speed.
♦ Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller.
♦ 7 blades or 9 blades.
♦ 12V DC 24V DC or 48V DC.
♦ Ball bearing.
♦ Terminal or Lead wire.
♦ Waterproof explosion proof or high proof are can be satisfied.
A: Specifications:
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
| MX12025AB(S/Y)U1 | B.S.Y | 12 | 7.0-13.8 | 0.80 | 9.60 | 3500 | 122.12 | 3.46 | 0.31 | 77.47 | 49.00 | 140.00 |
| MX12025AB(S/Y)H1 | B.S.Y | 12 | 7.0-13.8 | 0.50 | 6.00 | 3000 | 103.92 | 2.94 | 0.24 | 60.51 | 44.00 | 140.00 |
| MX12025AB(S/Y)M1 | B.S.Y | 12 | 7.0-13.8 | 0.40 | 4.80 | 2500 | 86.65 | 2.45 | 0.18 | 44.03 | 39.00 | 140.00 |
| MX12025AB(S/Y)L1 | B.S.Y | 12 | 7.0-13.8 | 0.20 | 2.40 | 2000 | 67.01 | 1.90 | 0.10 | 26.09 | 35.00 | 140.00 |
| MX12025AB(S/Y)U2 | B.S.Y | 24 | 14.0-27.6 | 0.50 | 12.00 | 3500 | 122.12 | 3.46 | 0.31 | 77.47 | 49.00 | 140.00 |
| MX12025AB(S/Y)H2 | B.S.Y | 24 | 14.0-27.6 | 0.40 | 9.60 | 3000 | 103.92 | 2.94 | 0.24 | 60.51 | 44.00 | 140.00 |
| MX12025AB(S/Y)M2 | B.S.Y | 24 | 14.0-27.6 | 0.25 | 6.00 | 2500 | 86.65 | 2.45 | 0.18 | 44.03 | 39.00 | 140.00 |
| MX12025AB(S/Y)L2 | B.S.Y | 24 | 14.0-27.6 | 0.15 | 3.60 | 2000 | 67.01 | 1.90 | 0.10 | 26.09 | 35.00 | 140.00 |
| MX12025AB(S/Y)U4 | B.S.Y | 48 | 28.0-56.0 | 0.40 | 19.20 | 3500 | 122.12 | 3.46 | 0.31 | 77.47 | 49.00 | 140.00 |
| MX12025AB(S/Y)H4 | B.S.Y | 48 | 28.0-56.0 | 0.30 | 14.40 | 3000 | 103.92 | 2.94 | 0.24 | 60.51 | 44.00 | 140.00 |
| MX12025AB(S/Y)M4 | B.S.Y | 48 | 28.0-56.0 | 0.20 | 9.60 | 2500 | 86.65 | 2.45 | 0.18 | 44.03 | 39.00 | 140.00 |
| MX12025AB(S/Y)L4 | B.S.Y | 48 | 28.0-56.0 | 0.10 | 4.80 | 2000 | 67.01 | 1.90 | 0.10 | 26.09 | 35.00 | 140.00 |
B: Electrical Specification:
ITEM |
| Specification. Condition | |||
Locked Rotor Protection | ◊ | Safety Condition | |||
| Auto power off after locked at rated voltage for 1sec | ||||
Polarity Protection | ♦ | Open circuit when Vcc&GND are exchanged | |||
◊ | Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged | ||||
Insulation Resistance | 10MΩ Between unshielded wire and frame at 500VDC/min | ||||
Dielectric Strength | 5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min | ||||
Special Function | ◊ | Soft Start | ◊ | Current Limiter | |
C. (Main Materials, Parts Specification)
Bearing | ♦ | ◊ | (Sleeve Bearing) | |||||||
Frame | ♦ | PBT of UL94V-0. | ◊ | Die-cast Aluminum Alloy | ||||||
Impeller | ♦ | PBT of UL94V-0. | ◊ | Steel | ||||||
Bobbin | PBT of UL94V-0. | |||||||||
Lead Wire | ♦ | Red(+) | ♦ | Black(-) | ◊ | Blue(PWM) | UL 1571 28# | |||
◊ | Yellow(FG) | ◊ | White(RD) | 2 wires 100±10mm | ||||||
Connector | No | |||||||||
Tube | No | |||||||||
Brushless axial dc fan 120mm 4.7inch, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.
Detailed Product Description:
♦ Voltage:12V , 24V, 48V
♦ Insulation Resistance:10M AT 500VDC
♦ Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
♦ Opetation Temperature:-10℃~70℃(Ordinary humidity)
♦ Storage Temperature:-40℃~70℃(Ordinary humidity)
♦Life Expectancy:Ambient temperature 25℃ and humidity 65% ( Ball bearing:50,000Hours , Sleeve bearing:30, 000Hours)
Description:
♦ Brushless DC Fan, Axial DC Fan, DC Motor Fan,CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
♦ Various Size
♦ High speed , Middle speed, Low speed
♦ Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
♦ 7 blades or 9 blades
♦ 12V DC 24V DC or 48V DC
♦ Ball bearing
♦ Terminal or Lead wire
♦ Waterproof explosion proof or high proof are can be satisfied.
A: Specifications:
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
| MX12025AB(S/Y)U1 | B.S.Y | 12 | 7.0-13.8 | 0.80 | 9.60 | 3500 | 122.12 | 3.46 | 0.31 | 77.47 | 49.00 | 140.00 |
| MX12025AB(S/Y)H1 | B.S.Y | 12 | 7.0-13.8 | 0.50 | 6.00 | 3000 | 103.92 | 2.94 | 0.24 | 60.51 | 44.00 | 140.00 |
| MX12025AB(S/Y)M1 | B.S.Y | 12 | 7.0-13.8 | 0.40 | 4.80 | 2500 | 86.65 | 2.45 | 0.18 | 44.03 | 39.00 | 140.00 |
| MX12025AB(S/Y)L1 | B.S.Y | 12 | 7.0-13.8 | 0.20 | 2.40 | 2000 | 67.01 | 1.90 | 0.10 | 26.09 | 35.00 | 140.00 |
| MX12025AB(S/Y)U2 | B.S.Y | 24 | 14.0-27.6 | 0.50 | 12.00 | 3500 | 122.12 | 3.46 | 0.31 | 77.47 | 49.00 | 140.00 |
| MX12025AB(S/Y)H2 | B.S.Y | 24 | 14.0-27.6 | 0.40 | 9.60 | 3000 | 103.92 | 2.94 | 0.24 | 60.51 | 44.00 | 140.00 |
| MX12025AB(S/Y)M2 | B.S.Y | 24 | 14.0-27.6 | 0.25 | 6.00 | 2500 | 86.65 | 2.45 | 0.18 | 44.03 | 39.00 | 140.00 |
| MX12025AB(S/Y)L2 | B.S.Y | 24 | 14.0-27.6 | 0.15 | 3.60 | 2000 | 67.01 | 1.90 | 0.10 | 26.09 | 35.00 | 140.00 |
| MX12025AB(S/Y)U4 | B.S.Y | 48 | 28.0-56.0 | 0.40 | 19.20 | 3500 | 122.12 | 3.46 | 0.31 | 77.47 | 49.00 | 140.00 |
| MX12025AB(S/Y)H4 | B.S.Y | 48 | 28.0-56.0 | 0.30 | 14.40 | 3000 | 103.92 | 2.94 | 0.24 | 60.51 | 44.00 | 140.00 |
| MX12025AB(S/Y)M4 | B.S.Y | 48 | 28.0-56.0 | 0.20 | 9.60 | 2500 | 86.65 | 2.45 | 0.18 | 44.03 | 39.00 | 140.00 |
| MX12025AB(S/Y)L4 | B.S.Y | 48 | 28.0-56.0 | 0.10 | 4.80 | 2000 | 67.01 | 1.90 | 0.10 | 26.09 | 35.00 | 140.00 |
B: Electrical Specification:
ITEM |
| Specification. Condition | |||
Locked Rotor Protection | ◊ | Safety Condition | |||
| Auto power off after locked at rated voltage for 1sec | ||||
Polarity Protection | ♦ | Open circuit when Vcc&GND are exchanged | |||
◊ | Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged | ||||
Insulation Resistance | 10MΩ Between unshielded wire and frame at 500VDC/min | ||||
Dielectric Strength | 5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min | ||||
Special Function | ◊ | Soft Start | ◊ | Current Limiter | |
C. (Main Materials, Parts Specification)
Bearing | ♦ (Dual Ball Bearing) | ◊ | (Sleeve Bearing) | |||||||
Frame | ♦ | PBT of UL94V-0. | ◊ | Die-cast Aluminum Alloy | ||||||
Impeller | ♦ | PBT of UL94V-0. | ◊ | Steel | ||||||
Bobbin | PBT of UL94V-0. | |||||||||
Lead Wire | ♦ | Red(+) | ♦ | Black(-) | ◊ | Blue(PWM) | UL 1571 28# | |||
◊ | Yellow(FG) | ◊ | White(RD) | 2 wires 100±10mm | ||||||
Connector | No | |||||||||
Tube | No | |||||||||
