172*152*51MM DC BRUSHLESS COOLING FAN
- 100000 Piece / Pieces per Month
- SHENZHEN/HK
- Credit Card
You May Like
-
30MM Small DC cooling Fan with Square Frame 30*30*10mm
-
2000 rpm Fridge / Computer Case Cooling Fans 12V DC Axial Fan Motor 4.5 Inch
-
dc fans 254mm series length
-
24V dc radiator fan Z60 x 60 x 38mm
-
92x92x32mm 12v/24v dc axial fan/ 3.6 inch dc fan fan for machine/ industrial equipment
-
DC Brushless Fan12038
Product Details
| Electric Current Type | DC | Mounting | Other, as your requirement | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | Topfan/OEM/ODM | Model Number | YM1217ANB1 | |
| Voltage | 12V | Power | 12.6W | |
| Air Volume | 205.00CFM | Speed | 2800RPM | |
| Certification | CE, ROHS, UL | After-sales Service Provided | Overseas third-party support available |
Product Description

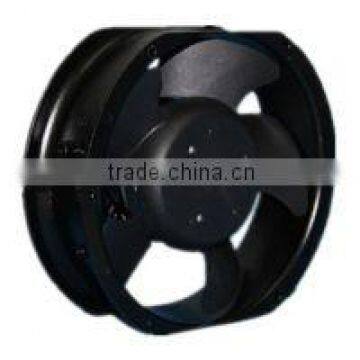

172*152*51MM DC BRUSHLESS COOLING FAN
| Size(mm) | Model | Rated voltage | Operating Voltage Range | Current amp | Rated Input Power | Speed | Max air Flow | Max Static Pressure | Noise Level | Weight |
| (v) | (v) | (Amp) | (Watt) | (rpm) | (CFM) | (Inch-H2o) | (dB-A) | (g) | ||
| 172*150*51 | YM1217ANB1 | 12 | 7.0 to 13.8 | 1.05 | 12.6 | 2800 | 205 | 0.75 | 49 | 740 |
| YM1217ANB2 | 12 | 7.0 to 13.8 | 0.9 | 10.8 | 2500 | 183.34 | 0.67 | 44 | 740 | |
| YM2417ANB1 | 24 | 14.0 to 27.6 | 0.6 | 14.4 | 3000 | 220 | 0.8 | 52 | 740 | |
| YM2417ANB2 | 24 | 14.0 to 27.6 | 0.5 | 12 | 2700 | 195 | 0.72 | 47 | 740 | |
| YM4817ANB1 | 48 | 28.0 to 56.0 | 0.38 | 18.24 | 3000 | 220 | 0.8 | 52 | 740 | |
| YM4817ANB2 | 48 | 28.0 to 56.0 | 0.27 | 12.96 | 2700 | 195 | 0.72 | 47 | 740 |
,,Shipment
1. FOB Shenzhen or Hong Kong (mass production)
2. DHL, UPS, FEDEX, TNT or any other international express (sample or small quantity)
<<<More details can be discussed>>>
,,Payment
T/T and Western Union
1. The payment for the high value sample will be charged.
2. The payment for the low value sample is free, but the freight should be paid by you.
,,Delivery Time
Generally, 500~1000pics 10 days after confirming the PI
,,Our Company
Alibaba: http://topfan-china.en.china.cn
Shenzhen Topfan-China Development Technology Co., Ltd, founded in 1996 in Shenzhen China, is professional manufacturer on dc brushless fans and ac fans. Products are ISO9000, UL, CE, RoHS and TUV certificated and good sellers both at home and abroad, including Europe, North America, Asia(Korea and India) etc. The products, including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor, shades pole and RC ac fans etc, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, and others.
Based on mutual benefit and development, we'll make our biggest efforts to do everything better for our customers.
