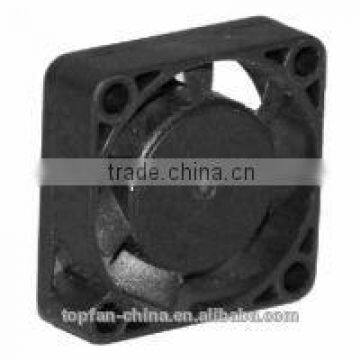

computer fan 25 X 25 X 07mm

FOB Price

USD $1 - $5 / Piece

500 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	Other, computer case, power supply, RAM	Type	Fan
Heatsink Material	Other, cooling fan	Brand Name	topfan
Model Number	YM0502PVS(C)3	Place of Origin	Guangdong, China

Axial brushless cpu fan 25 X 25 X 07mm
1. Widely used in computer cooling system
2. Hign speed and loe noise
3 low price

Discription of Axial brushless cpu fan 25 X 25 X 07mm:

1. Expexted life

1). Ball Bearing 50,000 hours(40⁰C)

2). Sleeve Bearing 30,000 hours(40⁰C)

2. Allowable Ambient Temperature Range:

1). -10⁰C~+70⁰C (Operating)

2). -40⁰C~+70⁰C (Storage)

3). non-condensing environment

General Specification

Model	YM0502PVS(C)2
Frame	Plastic(UL94V-0)
Impeller	Plastic(UL94V-0)
Bearing Type	Sleeve Bearing & Bual Ball Bearing
Leadwire	UL1007AWG24 or Equivalent (+): Red (-0 Black
Motor	Impedance Protected and Reverse Polarity Protected

Product Features

Size(mm)	Model	Rated voltage (v)	Operating Voltage Range(v)	Current amp (Amp)	Rated Input Power Watt	Speed (rpm)	Max air Flow(CFM)	Max Static Pressure (Inch-H2o)	Noise Leve (dB-A)	Weight (g)
2525 07	YM0502PVS(C)2	5.00	3.5 to 5.5	0.08	0.40	9000	1.98	0.14	24	5.00

Our Series of 25 X 25 X 07mm
