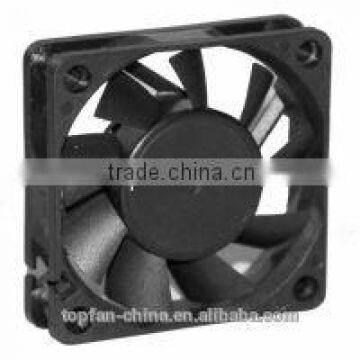

dc 24v cpu fan 60*60*15mm for computer case
US$ 1 - 7
/ Piece
500 Pieces(Min. Order)
- SZ/ Hongkong
- T/T Credit Card
You May Like
Product Details
| Application | Computer Case | Type | Fan | |
| Heatsink Material | Other, cooling fan | Brand Name | OEM | |
| Model Number | YM2406PHB1 | Place of Origin | Guangdong, China |
Product Description
Specifications
dc cpu fan 60*60*15mm for computer caseExtremely quiet, silent 6015mm fan
CE.UL,ROHS passed
Water/dust proof
dc cpu fan 60*60*15mm for computer case:
CE,UL,ROHS,TUV ISO9001:2000 certifications
specifications:
| Size(mm) | Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 60 *60 *15 | YM0506PHS(B)1 | 5 | 3.5 to 5.5 | 0.35 | 1.75 | 4500 | 16.8 | 0.19 | 34 | 42 |
| YM0506PHS(B)2 | 5 | 3.5 to 5.5 | 0.3 | 1.5 | 4000 | 14.8 | 0.14 | 30 | 42 | |
| YM0506PHS(B)3 | 5 | 3.5 to 5.5 | 0.23 | 1.15 | 3500 | 12.9 | 0.12 | 28 | 42 | |
| YM1206PHS(B)1 | 12 | 7.0 to 13.8 | 0.18 | 2.16 | 4500 | 16.8 | 0.19 | 34 | 42 | |
| YM1206PHS(B)2 | 12 | 7.0 to 13.8 | 0.14 | 1.68 | 4000 | 14.8 | 0.14 | 30 | 42 | |
| YM1206PHS(B)3 | 12 | 7.0 to 13.8 | 0.1 | 1.2 | 3500 | 12.9 | 0.12 | 28 | 42 | |
| YM2406PHS(B)1 | 24 | 14.0 to 27.6 | 0.13 | 3.12 | 4500 | 16.8 | 0.19 | 34 | 42 | |
| YM2406PHS(B)2 | 24 | 14.0 to 27.6 | 0.1 | 2.4 | 4000 | 14.8 | 0.14 | 30 | 42 | |
| YM2406PHS(B)3 | 24 | 14.0 to 27.6 | 0.08 | 1.92 | 3500 | 12.9 | 0.12 | 28 | 42 |
Detail introduction
1. Expexted life
1). Ball Bearing 50,000 hours(400C)
2). Sleeve bearing 30,000 hours (400C)
2. Allowable Ambient Temperature Range:
1). -100C~+700C (Operating)
2). -400C~+700C (Storage)
3). non-condensing environment
General Specification
| Frame | Plastic(UL94V-0) |
| Impeller | Plastic(UL94V-0) |
| Bearing Type | Sleeve bearing& Bual Ball Bearing |
| Leadwire | UL1007AWG24 or Equivalent (+): Red (-0 Black |
| Motor | Impedance Protected and Reverse Polarity Protected |
More detail information, please contact with me ! Thanks
