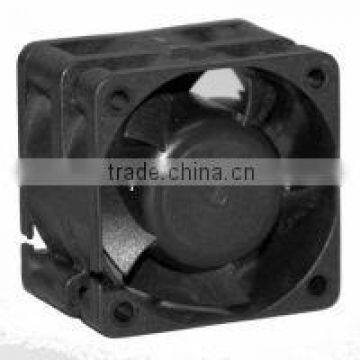

NEW 40*40*28 Brushless Axial Cooling Fan DC12V 24V
- SHENZHEN
- Money Gram Credit Card
You May Like
Product Details

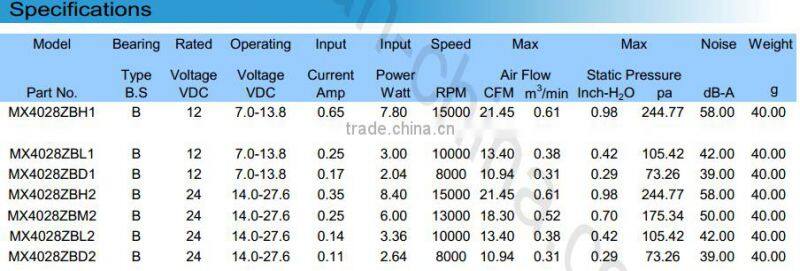

| Electric Current Type | DC | Mounting | Other, According to your use | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | MX/OEM/ODM | Model Number | MX4028ZBH2 | |
| Voltage | 24V | Power | 8.4W | |
| Air Volume | 21.45CFM | Speed | 150000RPM | |
| Certification | CE, ROHS, UL | After-sales Service Provided | No overseas service provided |
Product Description
NEW 40*40*28 brushless axial cooling Fan DC12V 24V

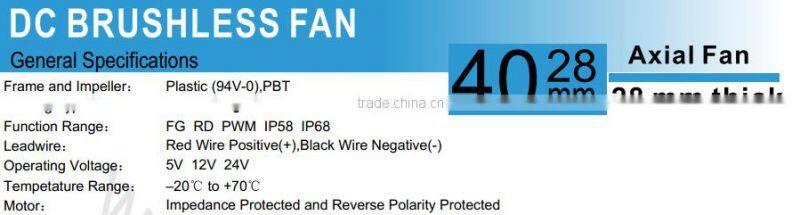

General Specifications:
Frame | Plastic(UL94v-0) |
Impeller | Plastic(UL94v-0) |
Bearing type | Sleeve Bearing & Dual Ball Bearing |
Leadwire | UL1007AWG#24 or Equivalent (+):Red(-):Black |
Motor | Impedance Protected and Reverse Polarity Protected |

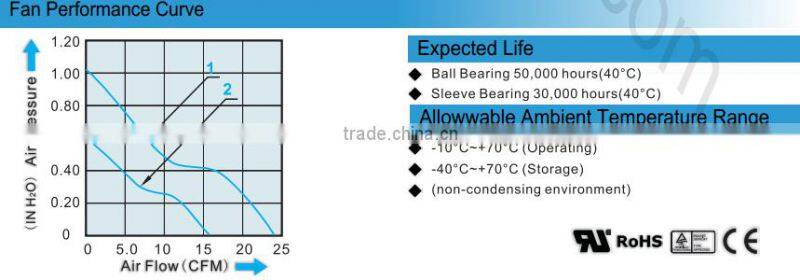

Expected Life:
1.Ball Bearing 50,000 hours(40°c)
2.Sleeve Bearing 30,000 hours(40°c)
Allowable Ambient Temperature Range
1.-10°c~+70°c (Operating)
2.-40°c~+70°c (Storage)
3.(non-condensing environment)
Web:
Alibaba: http://topfan-china.en.china.cn
Founded in 1996 in Shenzhen China, we, Shenzhen Topfan-China Technology Co., Ltd, is professional manufacturer and researcher on dc brushless fans and ac fans. Our products are ISO9000, UL, CE, RoHS and TUV certificated and good sellers both at home and abroad, including European, North American, Asia(Korea and India) and so on. The products, including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor, shades pole and RC ac fans, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, home appliances and others. Based on mutual benefit and development, we always make our biggest efforts to do everything better for our customers.
