Plastic smart Cooler fan 60mm with Positive and negative rotation function

FOB Price

USD $1 - $15 / Piece

500 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Plastic smart YM mini fan 6010

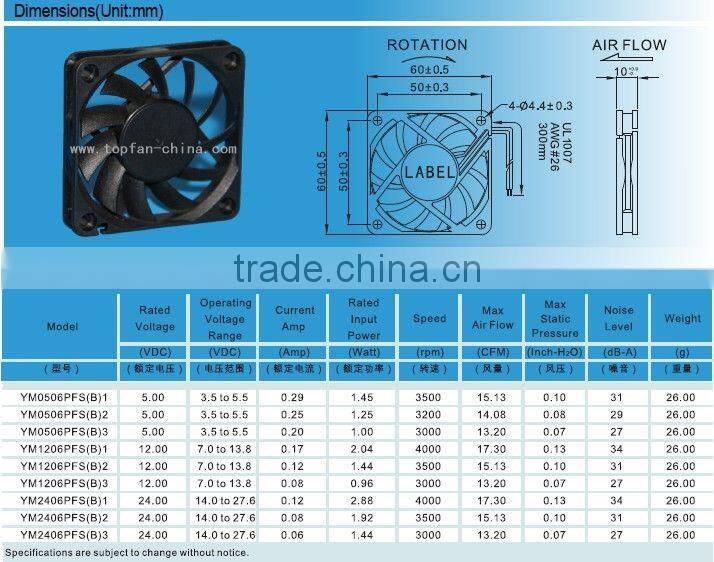

Size: 60 X 60 X 10mm

Size(mm)	Model	Rated voltage (v)	Operating Voltage Range(v)	Current amp (Amp)	Rated Input Power Watt	Speed (rpm)	Max air Flow(CFM)	Max Static Pressure (Inch-H2o)	Noise Leve (dB-A)	Weight (g)
60 60 10	YM0506PFS(B)1	5	3.5 to 5.5	0.29	1.45	3500	15.1	0.1	31	26

Specification

1. Expexted life

1). Ball Bearing 50,000 hours(40⁰C)

2). Sleeve Bearing 30,000 hours(40⁰C)

2. Allowable Ambient Temperature Range:

1). -10⁰C~+70⁰C (Operating)

2). -40⁰C~+70⁰C (Storage)

3). non-condensing environment

General Specification

Model	YM0506PFS(B)1
Frame	Plastic(UL94V-0)
Impeller	Plastic(UL94V-0)
Bearing Type	Sleeve Bearing & Bual Ball Bearing
Leadwire	UL1007AWG24 or Equivalent (+): Red (-0 Black
Motor	Impedance Protected and Reverse Polarity Protected
