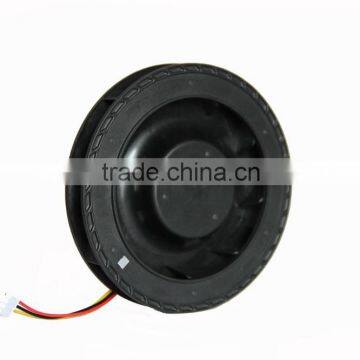

120mm x 25mm 12V Laptop Cooling Fan ,Centrifugal fan
- 100000 Piece / Pieces per Month
- shenzhen hongkong
- Credit Card
You May Like
-
120mm DC Ventilation Electric Motor Cooling Fan For Air Purifier 120 *25mm
-
12V 24V DC Plastic Waterproof Centrifugal Fan 120*120*25mm
-
100mm 12V - 24V Plastic DC Centrifugal Fan
-
4.7 Inch DC Centrifugal Fan For Industrial Fan
-
Plastic 12V 24V DC Round Centrifugal Fan with FG / PWM 120*120*25mm
-
12V 24V DC Waterproof Centrifugal Fan 120*120*25mm
Product Details
| Electric Current Type | DC | Mounting | Other, Centrifugal Fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | topfan/OEM | Model Number | MX12025GBM1 | |
| Voltage | 12V 24V 48V | Power | 7.2/30.72W | |
| Air Volume | 50.6/85.5CFM | Speed | 4000/5400RPM | |
| Certification | CE, ROHS |
Product Description
120mm x 25mm 12V Laptop Cooling Fan ,Centrifugal fan
Applications
Ventilation Equipment & System
Heating Equipment & System
Air Conditioner
Refrigeration equipment
MDBS(Mobile Data Base Station)
Telecom power supply station
Description:
Various Size
High speed , Middle speed, Low speed
Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
5 blades 7 blades or 9 blades
12V DC 24V DC or 48V DC
Ball bearing or Sleeve bearing or Hydraulic bearing
Terminal or Lead wire
Waterproof explosion proof or high proof are can be satisfied.
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
| MX12025GB(S)H1 | B.S | 12 | 7.0-13.8 | 0.64 | 7.68 | 5400 | 85.50 | 2.43 | 2.55 | 634.95 | 50.00 | 232 |
| MX12025GB(S)M1 | B.S | 12 | 7.0-13.8 | 0.60 | 7.20 | 4000 | 50.60 | 1.44 | 1.91 | 475.59 | 46.00 | 232 |
| MX12025GB(S)H2 | B.S | 24 | 14.0-27.6 | 0.64 | 15.36 | 5400 | 85.50 | 2.43 | 2.55 | 634.95 | 50.00 | 232 |
| MX12025GB(S)M2 | B.S | 24 | 14.0-27.6 | 0.60 | 14.40 | 4000 | 56.10 | 1.59 | 1.91 | 475.59 | 46.00 | 232 |
| MX12025GB(S)H4 | B.S | 48 | 28.0-56.0 | 0.64 | 30.72 | 5400 | 85.50 | 2.43 | 2.55 | 634.95 | 50.00 | 232 |
| MX12025GB(S)M4 | B.S | 48 | 28.0-56.0 | 0.60 | 14.40 | 4000 | 61.20 | 1.74 | 1.91 | 475.59 | 46.00 | 232 |
B: (Main Materials, Parts Specification):
Bearing | (Dual Ball Bearing) |
| (Sleeve Bearing) | |||||||
Frame | YES | PBT of UL94V-0. |
| Die-cast Aluminum Alloy | ||||||
Impeller | YES | PBT of UL94V-0. |
| Steel | ||||||
Bobbin | PBT of UL94V-0. | |||||||||
Lead Wire | YES | Red(+) | YES | Black(-) |
| Blue(PWM) | UL 1571 28# | |||
| Yellow(FG) |
| White(RD) | 2 wires 100±10mm | ||||||
Connector | No | |||||||||
Tube | No | |||||||||
C: Electrical Specification:
ITEM |
| Specification. Condition | |||
Locked Rotor Protection |
| Safety Condition | |||
| Auto power off after locked at rated voltage for 1sec | ||||
Polarity Protection | YES | Open circuit when Vcc&GND are exchanged | |||
| Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged | ||||
Insulation Resistance | 10MΩ Between unshielded wire and frame at 500VDC/min | ||||
Dielectric Strength | 5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min | ||||
Special Function |
| Soft Start |
| Current Limiter | |
Dimensions (Unit:mm)
