12012025mm 12V 24V DC Centrifugal Fan

FOB Price

USD $5 - $11 / Piece

500 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	DC	Mounting	Other, cooling fan
Blade Material	Plastic	Place of Origin	Guangdong, China
Brand Name	ODM/OEM	Model Number	MX12025GB(S)H2
Voltage	24v	Power	14.4w
Air Volume	61.2/85.5CFM	Speed	4000/5400rpm
Certification	CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV

Product Description

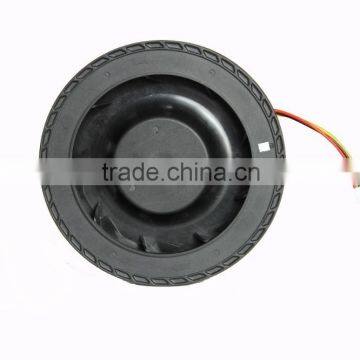

12V 24V DC Waterproof Centrifugal Fan 120*120*25mm

Description:

Various Size
High speed , Middle speed, Low speed
Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
5 blades 7 blades or 9 blades
12V DC 24V DC or 48V DC
Ball bearing or Sleeve bearing or Hydraulic bearing
Terminal or Lead wire
Waterproof explosion proof or high proof are can be satisfied.

A: Specifications:

Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m³/min	Inch-H₂O	pa	dB-A	g
MX12025GB(S)H1	B.S	12	7.0-13.8	0.64	7.68	5400	85.50	2.43	2.55	634.95	50.00	232
MX12025GB(S)M1	B.S	12	7.0-13.8	0.60	7.20	4000	50.60	1.44	1.91	475.59	46.00	232
MX12025GB(S)H2	B.S	24	14.0-27.6	0.64	15.36	5400	85.50	2.43	2.55	634.95	50.00	232
MX12025GB(S)M2	B.S	24	14.0-27.6	0.60	14.40	4000	56.10	1.59	1.91	475.59	46.00	232
MX12025GB(S)H4	B.S	48	28.0-56.0	0.64	30.72	5400	85.50	2.43	2.55	634.95	50.00	232
MX12025GB(S)M4	B.S	48	28.0-56.0	0.60	14.40	4000	61.20	1.74	1.91	475.59	46.00	232

B: (Main Materials, Parts Specification):

Bearing	√ (Dual Ball Bearing)						◊		(Sleeve Bearing)
Frame	√	PBT of UL94V-0.					◊		Die-cast Aluminum Alloy
Impeller	√	PBT of UL94V-0.					◊		Steel
Bobbin	PBT of UL94V-0.
Lead Wire	√		Red(+)	√	Black(-)	◊		Blue(PWM)		UL 1571 28#
	◊		Yellow(FG)	◊	White(RD)	2 wires 100±10mm
Connector	No
Tube	No

C: Electrical Specification:

ITEM		Specification. Condition
Locked Rotor Protection	◊	Safety Condition
	√	Auto power off after locked at rated voltage for 1sec After auto power off ,circuit attempt restart in 2 to 6sec
Polarity Protection	√	Open circuit when Vcc&GND are exchanged
	◊	Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged
Insulation Resistance	10MΩ Between unshielded wire and frame at 500VDC/min
Dielectric Strength	5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min
Special Function	◊		Soft Start 5s (0 to Max speed)	◊	Current Limiter
