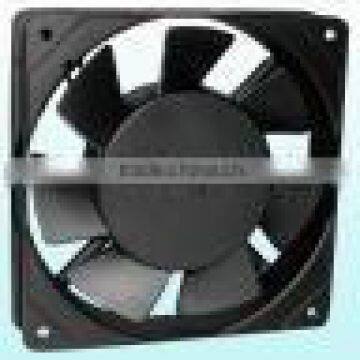

120*120*25mm waterproof fan motor 120v / 230v AC IP55 IP66
USD $3.5 - $8
/ Piece
500 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
You May Like
-
5 Volt Mini Axial Fan 25MMx25MMx10MM Cooling fans
-
92mm waterproof exhuast fan ip66 ip68 12v 24v dc
-
IP55 IP58 IP68 waterproof axial fan 92x92x32mm explosion proof fan
-
3.7 inch plastic dc ventilation fan 92x92x32mm
-
11 inch ac 380v 280mm cooler fan 280x280x80
-
3.2 inch brushless dc cooling fan / air condition cooling fan 80x80x25mm
Product Details
| Electric Current Type | AC | Mounting | Other, cooling fan | |
| Blade Material | Stainless Steel | Place of Origin | Guangdong, China | |
| Brand Name | OEM | Model Number | M115AA2H | |
| Voltage | 220/240V | Power | 16/14W | |
| Air Volume | 60/76CFM | Speed | 2400/2600RPM | |
| Certification | CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV |
Product Description
120*120*25mm waterproof fan motor 120v / 230v AC IP55 IP66
General Specifications:
Frame: Aluminum Alloy
Impeller: Plastic
Protection: Impedence protected
Temperature range: -20°C -70°C
Specifications:
| Size(mm) | Model | Beaing system | Rated voltage (v) | Freq(HZ) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Air Flow(CFM) | Air Flow (m3/mim) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 120*120*25mm | M115AA1H | Ball | 110/120 | 50/60 | 0.18/0.13 | 18/11 | 2400/2700 | 60/76 | 1.70/2.15 | 0.12/0.14 | 40/44 | 338 |
| M115AA2H | Ball | 220/240 | 50/60 | 0.09/0.07 | 16/14 | 2400/2700 | 60/76 | 1.70/2.15 | 0.12/0.14 | 40/44 | 338 |
