Home > Products > SWITCHING POWER SUPPLY > 480W 48v high voltage switching power supply

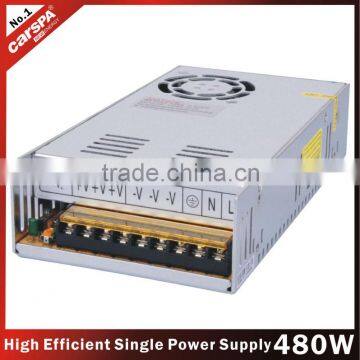

480W 48v high voltage switching power supply
US$ 30 - 32
/ Piece
500 Pieces(Min. Order)
- ningbo or shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CARSPA or OEM | |
| Model Number | NES-480W | Output Power | 401 - 500W | |
| Output Type | Single | Input Voltage | Other, 110V/220V | |
| Output Voltage | 5V, 12V, 15V, 24V,48V | Output Frequency | 47~63Hz | |
| Output Current | 0~70A |
Product Description
Specifications
ac to dc switching power supplyac input:110V/220V
dc output:5V, 70A / 12V, 40VA / 15V, 29A / 24V, 20A / 48V, 10A
power: 480W
480W 48v high voltage switching power supply
Why Choose Us?
1. Professional Manufacturer---10years experience
2. High Quality Products----Hot selling in European Market
3. Reliable Service---We serve for our clients with a golden team.
4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.
5. Advanced Technology---We have adopted the SMT & used the imported components.
6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.
7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc.
Features:
·universal AC input
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
Specifications:
| 480W NES Series High Efficient Single Output Switching Power Supply | |||||
| Model | NES-480-5 | NES-480-12 | NES-480-15 | NES-480-24 | NES-480-48 |
| DC output | 5V, 0-70A | 12V, 0-40A | 15V, 0-32A | 24V, 0-20A | 48V, 0-10A |
| Output voltage error | ±2% | ±1% | ±1% | ±1% | ±1% |
| Output voltage range | 120mV | 150mV | 150mV | 180mV | 240mV |
| Efficiency | 81% | 84% | 84% | 86% | 87% |
| Input voltage range | 90-132VAC/180-264VAC 47-63V; 255-373VDC | ||||
| Over load protection | 110-135% hiccup mode, auto-recovery | ||||
| Over-voltage protection | 115-135% cut off the output, auto-recovery | ||||
| Over temperature protection | ≥85°C, cut off the output, auto-recovery | ||||
| Fan ON/PFF Control | ≤55°C, Fan starts, ≥45°C, Fan off | ||||
| Withstand voltage | I/P-O/P: 3KVA | ||||
| I/P-F/G: 1.5KVA | |||||
| O/P-F/G: 0.5KVA 1minutes | |||||
| Working environment | -20°C - +60°C, 20%-90% RH | ||||
| Dimension | 215 x 115 x 50mm | ||||
| Weight/packing | 1Kg, 24pcs/Carton/25Kg | ||||
