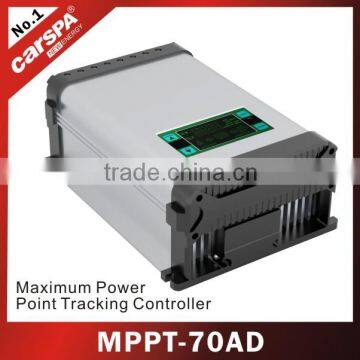

mppt solar charger controller with high quality with CE approved 70A solar controller (MPPT-70AD)
Negotiable
/ Piece
500 Pieces(Min.Order)
- ningbo or shanghai
- T/T D/P D/A Credit Card
You May Like
-
mppt 12v/24v 20 amp solar charge controller with high quality-MPPT-20D
-
mppt solar charge controller 12v 24v 40amp with high quality with led carspa(MPPT-40A)
-
mppt solar charge controller 12v/24v 50A with lcd display carspa MPPT-50D
-
MPPT series 60A solar charge controller (MPPT-60AD) carspa
-
PWM solar charger,voltage controller 24V 10A
-
PWM solar charge controller with load 24V 15A
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CARSPA or OEM | |
| Model Number | MPPT-70AD | Application | Solar System Controller | |
| Rated Voltage | Other, 12V/24V/48V | Maximum Current | 15A |
Product Description
mppt solar charger controller with high quality with CE approved 70A solar controller (MPPT-70AD)
Specifications
intelligent solar charge controller, solar charge controller, PV controller, MPPT
Introduction:
MPPT-15A solar controller (also known as an intelligent solar charge controller, solar charge controller, PV controller) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10%-30%. CARSPA- MPPT solar controllers 10A--80A include 12V series, 24V series and 48V series.
MPPT advantage:
Maximum Power Point Tracking (MPPT in short) system is a system which allows PV panels to outputs more Power by adjusting working condition of the electrical module. In Figure1 A indicates that the ordinary controller, which makes PV battery work on 12V ,only outputs a power point of 53W (a general power point), B indicates that MPPT controller makes PV battery always work at the maximum power point, thus outputs the power point of 75W (the maximum power point).
Product features:
Applicable to various types of batteries,
MPPT function
Temperature sensor battery charging compensation
Overload protection (automatic restoration)
Overcharge protection
Short circuit protection (automatic restoration)
Thunder protection
Reverse discharge protection
Reverse polarity connection protection (automatic restoration)
Under voltage protection
MPPT principle:
The maximum power point is mainly affected by the ambient temperature and the intensity of sunshine. The intensity of sunshine being constant, the maximum output power decreases with the rise of the temperature. The temperature being constant, when the sunshine intensifies, the open circuit voltage of PV battery basically keeps unchanged. But the short circuit current increases substantially, thus the maximum output power increases substantially.
This MPPT solar controller can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by about 30%.
However, due to many different factors, such as the difference in solar panel making, the change the Sun luminance, change in temperature, the efficiency of the controller etc., the actually available increased rate is 10%-30%.
Model | MPPT-70AD |
Rated Voltage | 12V / 24V / 48V |
Max Load current | 70A |
Input voltage range | 12V~40V / 24V~80V / 48V~110V |
Length≤1m Charge loop drop | <0.25V |
Length≤1m Discharge loop drop | <0.05V |
Over voltage protection | 17V / 34V / 68V |
Full charge cut | 13.7V / 27.4V / 54.8V |
Low voltage cut | 10.5V~11V / 21V~22V / 42V~43V |
Temperature compensation | -3mv/°C/cell |
No load loss | ≤40mA |
Max wire area | 10mm2 |
Ambient temperature | -25°C——+55°C |
N.W./pcs | 2.5kg |
Pcs/ ctn | 10pcs |
G.W./ctn | 25kg |
