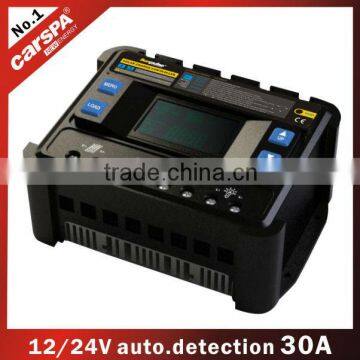

30A Solar Charge Controller with LCD Display
- Ningbo/Shanghai
- T/T D/P D/A Credit Card
You May Like
-
CD series 15A solar charge controller 12v 24v (CD12/24-15)
-
CD series 10A 12v/24v pwm solar charge controller
-
CD series 12/24V 12A solar regulator/ pwm solar controller (CD12/24-12)
-
CD series 12V12A solar system voltage regulator (CD1212)
-
C series 12v 10a newest technology solar controller (C1210)
-
CD series 12V10A pwm solar charge controller (CD1210)
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CARSPA/SUNPULSE/OEM | |
| Model Number | ENS12/24-30D | Specification | Normal | |
| Application | Industrial | Output Voltage (V) | 12/24V Auto. Detection | |
| Load Power (W) | 30A | Solar Power (W) | 450W@12V 900W@24V |
Product Description
Specifications
System Voltage:12/24V auto. detectionMax. Charging Current: 30A
Max. Loading Current: 30A
LCD Displays
12/24V 30A New Version Solar Charge Controller with LCD Display
Introduction:
CARSPA company 's newest PWM solar charge controller, it is a state-of-the art device which was developed according to the latest available technical standards.
Main Features and Functions:
Pulse Width Modulation Technology which offers the good efficiency of your PV system.
1. Automatically detects 12/24V system voltage.
2. A big LCD screen display one main window and 7 different sub windows: battery voltage, PV charge current, Load discharge current, total PV charge Ah, total PV discharge Ah, the setting of constant voltage charging, the setting of low voltage disconnect, the setting of low voltage reconnect
3. The constant voltage charge, low voltage disconnect and reconnect data settable by user.
4. External temperature sensor
5. Temperature-compensated, three-stage I-U curve charge regulation
6. Full electronic protection (reverse polarity, over-current, short-circuit, over temperature, current drawback, lightning, etc.)
7. Highest efficiency
8. Positive ground
9. Dual terminals for solar panel input
10. Battery type can be: GEL, AGM and solar battery etc.
Specifications:
Model | ENS12/24-20D | ENS12/24-30D | ENS12/24-40D | ENS12/24-50D | ENS12/24-60D |
Normal voltage | 12/24V automatic recognition | ||||
Nominal battery charge current | 20A | 30A | 40A | 50A | 60A |
Max. PV input power | 300W@12V 600W@24V | 450W@12V 900W@24V | 600W@12V 1200W@24V | 750W@12V 1500W@24V | 900W@12V 1800W@24V |
Max. solar input voltage Voc | >30V/48V | ||||
Min. solar input voltage Vmp | >16V/32V | ||||
Power conversion efficiency | Max. 90% | ||||
Standby power consumption | <15mA | <15mA | <20mA | <20mA | <20mA |
Length≤1m charge loop drop | <0.25V
| ||||
Length≤1m discharge loop drop | <0.05V
| ||||
Temperature compensation | -3 mV/cell *K | ||||
LCD screen display | Battery voltage, PV charge current, Load discharge current, total PV charge Ah, total PV discharge Ah, the setting of constant voltage charging, the setting of low voltage disconnect, the setting of low voltage reconnect | ||||
Buttons | Menu, Load( on/off), Up, Down | ||||
Dimensions | 172*126.3*73mm(L*W*H) | ||||
Weight | 0.4kg | 0.42kg | 0.45kg | 0.5kg | 0.55kg |
Ambient temperature range | -40 to +50°C | ||||
Case protection | IP22 | ||||
Float charge | 13.8V/27.6V | ||||
Constant voltage charge | 14.6V( 14~15V settable )29.2V (28~30V settable) | ||||
Low disconnect voltage | 11V( 10.4~11.4V settable)/ 22V( 20.8~22.8V settable) | ||||
Low reconnect voltage | 12.8V( 12.2~13.2V settable)/ 25.6V( 24.4~26.4V settable) | ||||
Grounding | Positive grounding | ||||
Battery type | GEL, AGM, Wet/flooded battery, Solar battery etc. | ||||
