Home > Products > OFF-GRID MODIFIED SINE WAVE INVERTER > DC12v to AC110v modified sine wave inverter 1200W

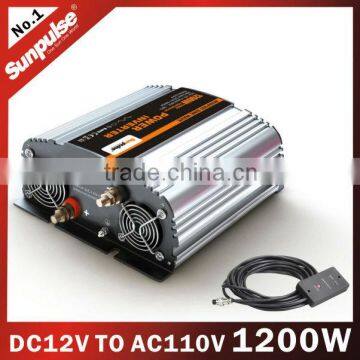

DC12v to AC110v modified sine wave inverter 1200W
- Shanghai / Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CARSPA | |
| Model Number | MS1200-121 | Output Power | Other, 1200w | |
| Output Type | Single | Size | 26.1*22.9*10CM | |
| Weight | 3100g | Input Voltage | DC12V | |
| Output Voltage | AC110V | Type | DC/AC Inverters | |
| Output Frequency | 50/60Hz |
Product Description
Specifications
Power :1200WWave :Modified sine wave
DC Input voltage:12V
Output voltage:110VAC
USB output :5V 500mA
Product Features:
·The new design and improved PCB ,workmanship,better cooling.
·The remote control function and 5m wire with switcher optional
·It designed to give you quality power ,ease of use, and reliability
·Low battery alarm : alerts you if the battery has become dicharged to 11Volts or lower.
· Low battery voltage shutdown : shuts the inverter down automatically if the battery voltage drops below 10.5volts. it protects the battery from being completely discharged.
·High battery voltage shutdown : shuts the inverter down automatically if the input voltage rises to 15volts or more.
·Overload shutdown: shuts the inverter down automatically if a short cicuit is detected in the circuity connected to the inverter’s output, or if the loads connected to the inverter exceed the inverter’s operating limits
· Over temperature shutdown : shuts the inverter down automatically if its internal temperature rises above an unacceptable level.
·The modified sine wave output waveform suitable for many electronic loads.
Protection Function :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Earth leakage protection
Details:
Model | MS1200-121 | MS1200-122 | MS1200-241 | MS1200-242 | MS1200-481 | MS1200-482 |
Rated power | 1200W | |||||
Surge power | 2400W (few seconds) | |||||
Output voltage | 110V | 230V | 110V | 230V | 110V | 230V |
Output frequency | 50/60Hz ±3 | |||||
Output waveform | Modified Sine Wave | |||||
USB port | 5V 500mA (optional) | |||||
Input voltage | 12V | 24V | 48V | |||
| Remote control | Optional | |||||
Dimension | 26.1*22.9*10cm (L*W*H) | |||||
N.W/unit | 3100g | |||||
QTY/Ctn | 6pcs | |||||
Packing | Gift box | |||||
Meas./Ctn | 50*34*44.5cm | |||||
Brand | CARSPA or OEM | |||||
Certification | CE-EMC/LVD,RoHS, E-mark | |||||
Warranty | 18 months | |||||
Note : if you no need the USB port, pls contact our sales before place an order.
