Home > Products > OFF-GRID MODIFIED SINE WAVE INVERTER > 1.2kw DC TO AC Home Use Power Inverter With LED Display

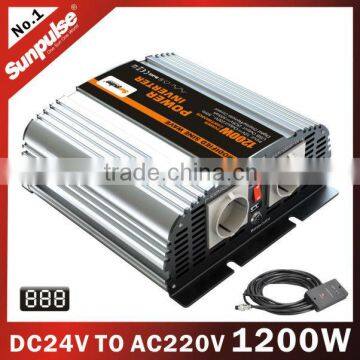

1.2kw DC TO AC Home Use Power Inverter With LED Display
- Shanghai / Ningbo
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CARSPA | |
| Model Number | MSD1200-242 | Output Power | Other, 1200w | |
| Output Type | Single | Size | 26.5*20.8*7.7CM | |
| Weight | 3200g | Input Voltage | DC24V | |
| Output Voltage | AC220-240V | Type | DC/AC Inverters | |
| Output Frequency | 50/60Hz |
Product Description
Specifications
Power:1200W Modified sine waveInput voltage:24V
Output voltage:220-240VAC
with USB output: 5V 500mA
LED Display
Product Features:
·New design case, improved PCB design and workmanship, more better cooling.
·The digital display indicates the voltage and power
·The remote control function and 5m wire with switcher optional,
·Anodized alluminum case provides durability & max heat dissipation
·DC cigarette lighter accessory plug and heavy –duty cable clamps for high-output direct battery connections both included.
·Automatic restart function.
·USB output port : 5V500mA (optional )
·Two LED indicators on the front panel shows the working and failure state
·ON/OFF switch control the inverter by hand
·The inverter is compact , light weight and easy to operate.
·Loads can be powered directly from the AC outlets.
·The inverter is equipped with numerous protection features to guarantee safe and trouble-free
Protection Function :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
Details:
Model | MSD1200-121 | MSD1200-122 | MSD1200-241 | MSD1200-242 | MSD1200-481 | MSD1200-482 |
Rated power | 1200W | |||||
Surge power | 2400W (few seconds) | |||||
Output voltage | 110V | 230V | 110V | 230V | 110V | 230V |
Output frequency | 50/60Hz ±3 | |||||
Output waveform | Modified Sine Wave | |||||
USB port | 5V 500mA (optional) | |||||
| Digital display | Voltage , Power ( V, P) | |||||
Input voltage | 12V | 24V | 48V | |||
| Remote Control | Optional | |||||
Dimension | 26.5*20.8*7.7cm (L*W*H) | |||||
N.W/unit | 3200g | |||||
QTY/Ctn | 6pcs | |||||
Packing | Gift box | |||||
Meas./Ctn | 50*34*44.5cm | |||||
Brand | CARSPA or OEM | |||||
Certification | CE-EMC/LVD,RoHS, E-mark | |||||
Warranty | 18 months | |||||
Note : if you no need the USB port, pls contact our sales before place an order.
