Home > Products > Linear actuator > 12/24/36V Steel Linear Actuator for Home Bed, Recliner Bed, Beauty Bed GM1-D

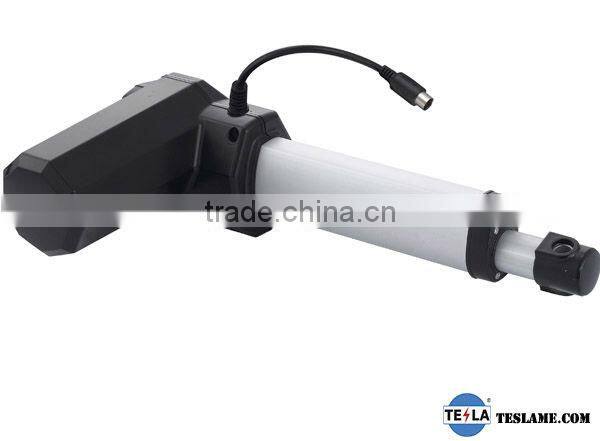

12/24/36V Steel Linear Actuator for Home Bed, Recliner Bed, Beauty Bed GM1-D

FOB Price

US$ 55.00 - 55.00 / Piece

5 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	Tesla
Model Number	GM1D	Usage	Home Appliance, Other, Home Appliance, Medical bed chair
Certification	CE, ROHS, Other, CE, ROHS, TUV	Type	Gear Motor
Construction	Permanent Magnet	Commutation	Brush
Protect Feature	Other, IP54	Continuous Current(A)	2.5A
Output Power	60W	Voltage(V)	12V/24V/36

12/24/36V Steel Linear Actuator for Home Bed, Recliner Bed, Beauty Bed GM1-D

Dear customers

Before you make order,Please contact us to confirm :Input Voltage,stroke,power capacity,speed,All of our linear actuator are cusdom made.

Thanks.Tesla Tang

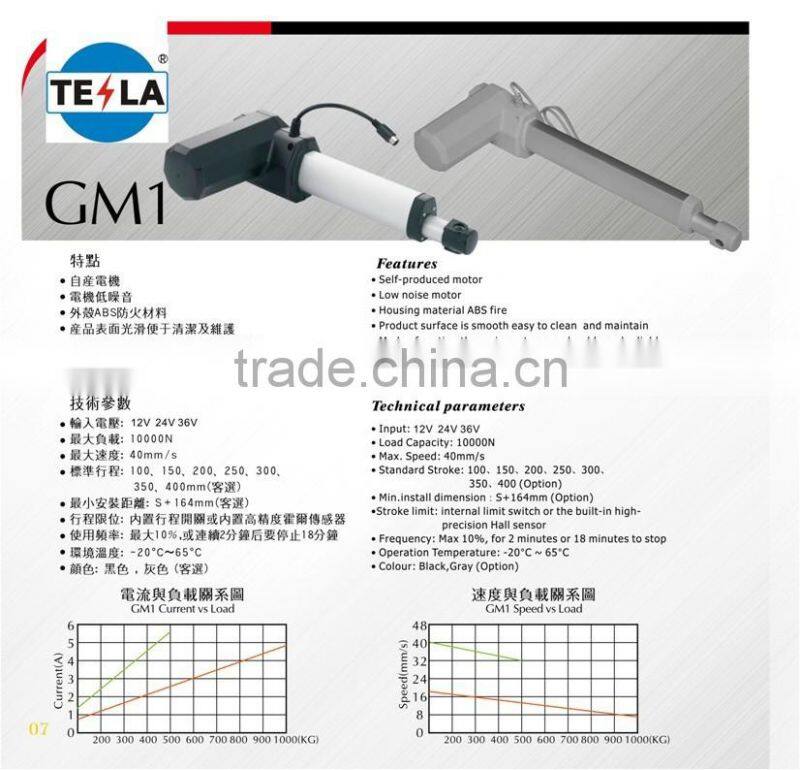

Basic information:

Brand Name	TESLA
Model Number	GM1-D
Stroke	100 mm 200mm(cutomers option)
Input voltage	12V/24V/36V
Load capacity	Max.10000N
Max.speed	40mm/s
Mini install dimension	S+164mm(option)
Frequency	Max.10%for minutes or 18 minutes to stop
Operation temperature	-20'C-65'C
Color	Black
is_customized	Yes
