fiber pcb laser marking machine

Condition	New		Laser Type	Fiber Laser
CNC or Not	Yes		Cooling Mode	Other, Air Cooling, Air Cooling
Control Software	Ezcad		Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Working Accuracy	0.01mm		Place of Origin	China
Brand Name	Bodor		Model Number	BML-F/FP
Power(W)	10W/20W/30W/50W		Certification	CE, SGS, Other, CE, SGS, BV, FDA
After-sales Service Provided	Engineers available to service machinery overseas

Specifications

1) 2 years warranty
2) Light weight
3)100,000 hours use life
4)Free maintance
Type:pcb laser marking machine

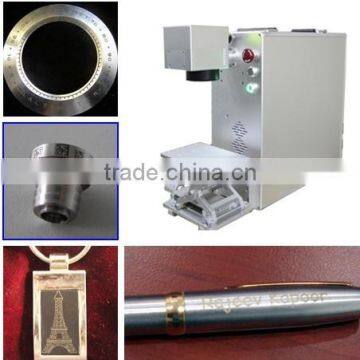

  PCB Laser Marking Machine





Product's description:

1.BODOR BML-F series fiber laser marking machine is the 3th-generation laser marking machine which is manufactured by the most advanced laser technology in current of the world.

2.The quality of laser beam is very good(near to the limit of diffraction,exporting TEM00 fundamental transverse mode, M2  near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker),Therefore it is  very  suitable for delicate marking.

3.With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%,BML-F can achieve high speed marking,and control the depth and shape of the facula .

4.The processing speed of BML-F is 2-3 times than the traditional marking machine.

5.Air cooling,the size of the machine is very small.

6.Long life,ultra-low power consumption,the conversion efficiency is more than 30%,the unit power of the machine is no more than 0.5kw!



7.With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about manual positioning.









Technical Parameter:

Model	BMF 10FP/20FP/30FP,BMF 10F/20F/30F
Laser power	10W/20W/30W
Laser Wavelength	1065±10nm
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking range	100*100mm/200*200mm/300*300mm
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	10mm/s
Marking depth	0 ~0.5mm
Engraving line speed	≤7000mm/s
Repeatability accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking Format	Graphics, text, bar codes, two-dimensional code, automatically  marking the date, batch number, serial number, frequency,etc.
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
working voltage	220V±10%/50Hz/4A
Unit power	<0.5kw
Use of the environment	Clean and dust free or dust less
Working condition:Humidity	5%-75%,free of condensed water
Laser module life	>100000 hours
Net weight	125kg
Packing size	700*900*1380mm

Applicable Industries:
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials:
Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

Samples:
