laser cutting bed fabric, clothing toys, carpet cutting

Condition	New		Laser Type	CO2
Engraving Area	1700*3000mm		Engraving Speed	0-60000mm/min
CNC or Not	No		Cooling Mode	Water Cooling
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood		Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin	Shandong, China		Brand Name	bodor
Model Number	1730B		Dimension(L*W*H)	1673mm*1130mm*1110mm
Certification	CE, SGS, Other, CE, SGS, FDA		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

laser cutting bed 1720 for fabric, textile
1.2 year warranty
2. high density honeycomb worktable
3. CO2 sealed laser tube

1.In order to achieve large format cutting requirement, Bodor specially pushes-off laser cutting machine, which is applicable to auto decoration’s cutting and multi-plastic’s cutting, widely used in auto accessories and other industries.
2.Adopting machine tool working chassis which is more stable and stronger, so that stability and precision can be assured in high-movement processing.
3.Transmitting Motor system adopts linear guide guiding and precision gear, along with advance high-accurate motor and driver controlled by DSP system, which assures the processing precision and speed.
4.Stable and long lifespan high quality laser tube assures the work piece’s incision smooth, no need secondary operation.
5.Specially processing full-open net worktable, ensures easy and fast material-taking.
6.Special cutting equipment can save time, low down cast, and improve work efficiency to you.
7.Arranged with red dot position equipment, which could indicate position of laser head, getting rid of manual-position’s annoyance.

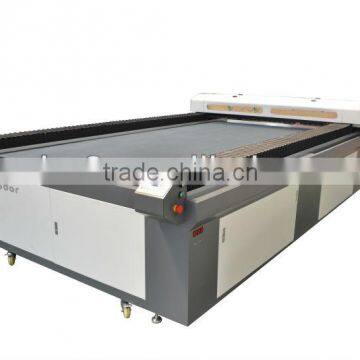

                                                              laser cutting bed



Model	BCL1730B	BCL1835B	Optional
Applicable Materials Area	1700*3000mm	1800*3500mm	According to Demands
Actual Cutting Area	1650*3000mm	1750*3500mm
Laser Power	60w/80w/100w/130w//150w
Laser Type	CO2 Sealed Laser Tube , 10.6μm
Cooling Type	Water Cooling
Cutting Speed	0-30000mm/min
Laser Output Control	0-100% Set by Software
Min. Engraving Size	Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm
Highest Scanning Precision	4000DPI
Locating Accuracy	≤+0.02mm
Controlling Software:	DSP Control System
Graphic Format Supported	DST PLT BMP DXF DWG AI LAS,etc
Compatible Software	CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Color Separation	Yes
Drive System	High-precision 3-phase Stepper Motor
Auxiliary Equipments	Exhaust Fan and Air Exhaust Pipe
Power supply	AC110V/220V+10%,50HZ/60HZ
Working Environment	Temperature:0-45C,Humidity 5-95%(No Condensate Water)
Option	Blade Worktable

                                                                    driver systerm and power supply

inside package:  transparent membrane

outside package: wooden boxes for sea transport or air transport





Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.

In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc

  2 year warranty



  1. How to choose laser power ?

                                                                   according to the length of laser tube

laser power	length of laser tube	outside diameter of laser tube	acrylic cutting	wood cutting	plywood and MDF
40w	800mm	50mm	3mm	1mm	/
50w	1000mm	50mm	5mm	3mm	1mm
60w	1250mm	50mm	8mm	6mm	3mm
80w	1600mm	60mm	15mm	10mm	6mm
100w	1650mm	80+-2mm	20mm	12mm	8mm
W2:rated power90w        max power100w	1200mm	80mm	20mm	12mm	8mm
W4:rated power120w        max power135w	1400mm	80mm	25-30mm	16mm	10mm
W6:rated power150w        max power170w	1650mm	80mm	30-35mm	22mm	14mm
W8:rated power170w        max power200w	1850mm	90mm	35-40mm	24mm	16mm

2. What  is in package?

machine with laser tube, double faced adhesive tape, path adjusting piece, focus scale, spanner, air pipe, water pipe, fan pipe...

3.What is M serial Packing size and Weight?

4.How to choose work table? Honeycomb table or stainless steel blade table?

For acrylic -we recommend stainless steel work table(blade worktable).
Reason: Acrylic is almost pure in light. Honey comb inside has 6 reflect pieces,when cutting acrylic,honey comb reflect pieces will make laser path reflect back to acrylic material surface.


For paper -we recommend honeycomb work table.
Reason:Honeycomb has flat and comb design ,When working, smoke will be absorbed totally inside to keep paper or leather in cleaning way.
               Stainless Steel work table is between Honeycomb and Standard blade design.That is why we offer such workfloor as standard specification.

@What is the maximum diameter three jaw rotary device?



   80mm

@How many mm is the up-down table?

   160mm

@How can we do if the laser tube is longer the machine length?

    RECI W2: Installing lengthened cover on the machine
