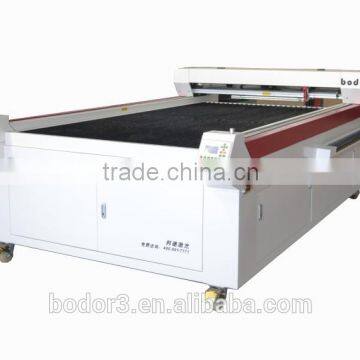

hot sale laser cutting bed for acrylic wood leather Quality Choice

Condition	New		Laser Type	CO2
Engraving Area	1600*1000mm		Engraving Speed	0-60000mm/min
CNC or Not	No		Cooling Mode	Water Cooling
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood		Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin	Shandong, China		Brand Name	bodor
Model Number	1625BH		Dimension(L*W*H)	1673mm*1130mm*1110mm
Certification	CE, SGS, Other, CE, SGS, FDA		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

laser cutting bed for fabric, textile
1.2 year warranty
2. high density honeycomb worktable
3. CO2 sealed laser tube

                                                                    laser cutting bed





Machine Series	X Series(Optional)				B Series(Optional)
Model	BCL1006X	BCL1309X	BCL1610XH	BCL1812XH	BCL 1325B	BCL 1630BH	BCL 1830BH
Working Area	1000*600mm	1300*900mm	1600*1000mm	1800*1200mm	1300*2500mm	1600*3000mm	1800*3000mm
Locating Accuracy	≤+0.01mm				0.02mm
Cutting Speed	0---40000mm/min				0—30000mm/min
Laser Output Control	1-100% Set by Software )				0-100% adjust freely
Drawing Pen Function	add drawing pen function according to demands, then the X axis wide will scale back around 100 mm
Laser Power	60w/80w/100w/130w/150w
Laser Type	CO2 Sealed Laser Tube ,Water Cooling, 10.6μm
Cooling Type	Water Cooling
Min. Engraving Size	Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm
Highest Scanning Precision	4000DPI
Graphic Format Supported	DST PLT BMP DXF AI DSB BMP GIF JPEG PNG ICON CURSOR TIFF TGA PCX WBMP WMF EMF JBG PGX, etc
Color Separation	Yes
Power supply	AC110V/220V+10%,50HZ/60HZ
Drive System	High-precision 3-phase Stepper Motor
Option	Up-down table,Honeycomb platform,Rotary device,Auto-focus Device





                                                                    driver systerm and power supply



inside package:  transparent membrane



outside package: wooden boxes for sea transport or air transport





Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.



In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc





  2 year warranty



  1. How to choose laser power ?

                                                                   according to the length of laser tube

laser power	length of laser tube	outside diameter of laser tube	acrylic cutting	wood cutting	plywood and MDF
40w	800mm	50mm	3mm	1mm	/
50w	1000mm	50mm	5mm	3mm	1mm
60w	1250mm	50mm	8mm	6mm	3mm
80w	1600mm	60mm	15mm	10mm	6mm
100w	1650mm	80+-2mm	20mm	12mm	8mm
W2:rated power90w        max power100w	1200mm	80mm	20mm	12mm	8mm
W4:rated power120w        max power135w	1400mm	80mm	25-30mm	16mm	10mm
W6:rated power150w        max power170w	1650mm	80mm	30-35mm	22mm	14mm
W8:rated power170w        max power200w	1850mm	90mm	35-40mm	24mm	16mm



2. What  is in package?

machine with laser tube, double faced adhesive tape, path adjusting piece, focus scale, spanner, air pipe, water pipe, fan pipe...



3.What is M serial Packing size and Weight?





4.How to choose work table? Honeycomb table or stainless steel blade table?



For acrylic -we recommend stainless steel work table(blade worktable).
Reason: Acrylic is almost pure in light. Honey comb inside has 6 reflect pieces,when cutting acrylic,honey comb reflect pieces will make laser path reflect back to acrylic material surface.


For paper -we recommend honeycomb work table.
Reason:Honeycomb has flat and comb design ,When working, smoke will be absorbed totally inside to keep paper or leather in cleaning way.
               Stainless Steel work table is between Honeycomb and Standard blade design.That is why we offer such workfloor as standard specification.



@What is the maximum diameter three jaw rotary device?



   80mm



@How many mm is the up-down table?



   160mm



@How can we do if the laser tube is longer the machine length?



    RECI W2: Installing lengthened cover on the machine
