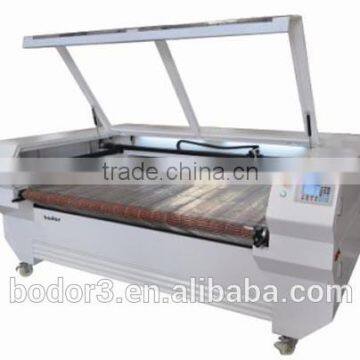

auto-feeding fabric cutting laser cutting machine 1600*1000mm

Condition	New		Laser Type	CO2
Engraving Area	1600*1000mm		Engraving Speed	0-60000mm/min
CNC or Not	No		Cooling Mode	Water Cooling
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood		Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin	Shandong, China		Brand Name	bodor
Model Number	1610XH2H(M)A		Dimension(L*W*H)	1673mm*1130mm*1110mm
Certification	CE, SGS, Other, CE, SGS, FDA		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

auto-feeding fabric double head movable laser cutting machine
1.2 year warranty
2.double head movable autofeeding for textile

 1610 XH2HMA auto-feeding fabric textile double head  movable laser cutting machine



1. High-efficiency co2 laser tube 60w/80w/130w/150w/180w

2. Electric up and down working table 160mm

3. Stainless steel hollow working table

4. Red dot cross position system

5.Taiwan HIWIN square rail, high accuracy

6.Transparent acrylic watching door, easy checking work process

7. U flash offline operation

8. Independent laser tube cabinet, protect tube and easy change



Application  Material
materials such as acrylic, crystal, plastic, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, ceramic, lamp shade, etc.



Application
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts,

electronics, electric appliances, etc.





                double head mouvable laser cutting machine fabric auto-feeding





                                                                           blade worktable





                                                                    driver systerm and power supply



inside package:  transparent membrane



outside package: wooden boxes for sea transport or air transport





Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.



In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc





  2 year warranty



  1. How to choose laser power ?

                                                                   according to the length of laser tube

laser power	length of laser tube	outside diameter of laser tube	acrylic cutting	wood cutting	plywood and MDF
40w	800mm	50mm	3mm	1mm	/
50w	1000mm	50mm	5mm	3mm	1mm
60w	1250mm	50mm	8mm	6mm	3mm
80w	1600mm	60mm	15mm	10mm	6mm
100w	1650mm	80+-2mm	20mm	12mm	8mm
W2:rated power90w        max power100w	1200mm	80mm	20mm	12mm	8mm
W4:rated power120w        max power135w	1400mm	80mm	25-30mm	16mm	10mm
W6:rated power150w        max power170w	1650mm	80mm	30-35mm	22mm	14mm
W8:rated power170w        max power200w	1850mm	90mm	35-40mm	24mm	16mm



2. What  is in package?

machine with laser tube, double faced adhesive tape, path adjusting piece, focus scale, spanner, air pipe, water pipe, fan pipe...



3.What is M serial Packing size and Weight?





4.How to choose work table? Honeycomb table or stainless steel blade table?



For acrylic -we recommend stainless steel work table(blade worktable).
Reason: Acrylic is almost pure in light. Honey comb inside has 6 reflect pieces,when cutting acrylic,honey comb reflect pieces will make laser path reflect back to acrylic material surface.


For paper -we recommend honeycomb work table.
Reason:Honeycomb has flat and comb design ,When working, smoke will be absorbed totally inside to keep paper or leather in cleaning way.
               Stainless Steel work table is between Honeycomb and Standard blade design.That is why we offer such workfloor as standard specification.



@What is the maximum diameter three jaw rotary device?



   80mm



@How many mm is the up-down table?



   160mm



@How can we do if the laser tube is longer the machine length?



    RECI W2: Installing lengthened cover on the machine
