Home > Products > fence > Anti Climb Security Fencing Pvc or Galvanised

Anti Climb Security Fencing Pvc or Galvanised

FOB Price

US$ 40 - 99 / Piece

100 Pieces(Min. Order)

Port TIANJIN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	HK
Model Number	Q195	Frame Material	Metal
Metal Type	Steel	Pressure Treated Wood Type	Heat Treated
Frame Finishing	Other, hot dipped galvanized or powder coated	Feature	Easily Assembled, Eco Friendly, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Waterproof

Product Description

anti climb security fencing pvc or galvanised

Product Description

1.The explaination of 358:

'358' comes from its measurements 3" x 0.5" x 8 gauge which equates to approx 76.2mm x 12.7mm x 4mm in metric.

2.Processing of 358 Security Metal Fence

Material - Straightening & cut wire - Welding - Galvanizing - Powder coating - Packaging

3.Specifications of 358 Security Metal Fence

mesh panel height	0.9m-5.2m
mesh panel width	2m,2.2m,2.5m,3m
hole opening	12.7mmx76.2mm(1/2''x3'')
wire thickness	3mm,4mm,5mm
material	low carbon steel wire,galvanized wire
finished	electric galvanized,hot dipped galvanized,polyester painting
polyester painting color	any RAL series color(normal RAL 6005-dark green,RAL9005-black)

curves	on request
C post	62mmx83mmx3mm
round post	outside diameter:80mmx3mm
rectangular post	60mmx80mmx3mm,60mmx120mmx3mm
post length	on request(normal 2.3mm-4m)
material	square steel pipe,round steel pipe,C type steel
finishied	electric galvanized,hot dipped galvanized,pvc coated
polyester painting color	any RAL series color(normal RAL 6005-dark green,RAL9005-black)

hot dipped galvanized 358 fence:

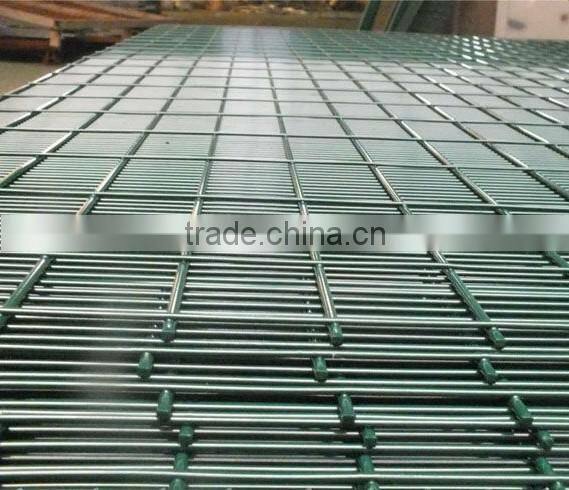

prower coated 358 fence:

4.Post and link of 358 Security Metal Fence

Size: 60 x 60, 80 x 80, 60 x 80, 60 x 120mm, etc.

Thickness: 2.0, 2.5, 3.0mm

Height: 2800, 3100, 3800mm

Surface Treatment: Hot dipped Galvanized or Electric Galvanized + Powder Coating

The posts are polyester powder coated with a galvanised substrate in the accordance with Euro norm 10147 (min. 60 micron)

Packaging & Shipping

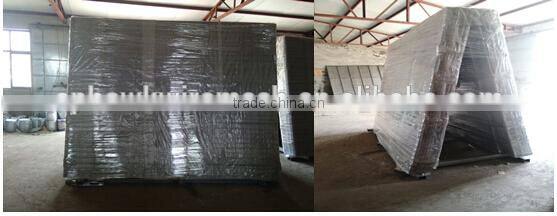

358 high Security mesh fence packing:

Panel packing:

<1>Plastic film at the bottom to avoid the panel be destroyed

<2>4 metal corners to ensure the panel strong and uniform

<3>wood plate at the top of pallet to keep the under panel

<4>pallet tube size:40*80mm tubes at the botom vertical position

Fence post packing:

<1>plastic cap cover onto the post

<2>plastic film +metal pallet for fence pot

Accessories packing:

<1>stainless steel nuts and screws install with clips

<2>5 sets clips load into one plastic bag

<3>12 bags into one carton box

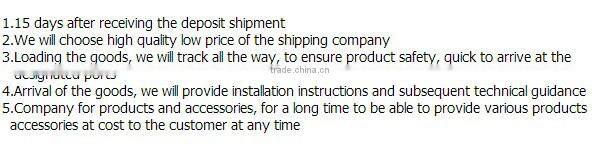

Our Services
