Home > Products > Solar EL Defector > High Resolution Camera El Tester For Solar Module
High Resolution Camera El Tester For Solar Module
- 500 Set / Sets per Month
- Shanghai/be appointed
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Keyland Solar EL Defect Detector for Solar Panel Manufacturing Lines
-
Keyland Solar Panel Manufacturing Line PV Modules ELTester with Brand Camera
-
Keyland EL Solar Module Tester
-
Keyland Solar Panel Visual Inspection Machines With Camera Quality Choice
-
Keyland Solar Electroluminescence Test for The Production of Solar Panel
-
Keyland Solar Photoelectric Detector
Product Details
Place of Origin | Jiangsu, China | Brand Name | KEYLAND | |
Model Number | KEL | Power | Electronic | |
Usage | Other, Solar Module Testing |
Plywood
Product Description

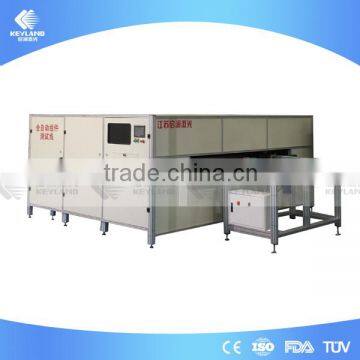

High Resolution Camera El Tester For Solar Module
Application
KEYLAND KEL series solar module tester uses electroluminescence (EL) measurements to identify microcracks and other invisible defects in modules. The testers utilize cooled near-infrared CCD camera technology to image each solar cell in pv module.

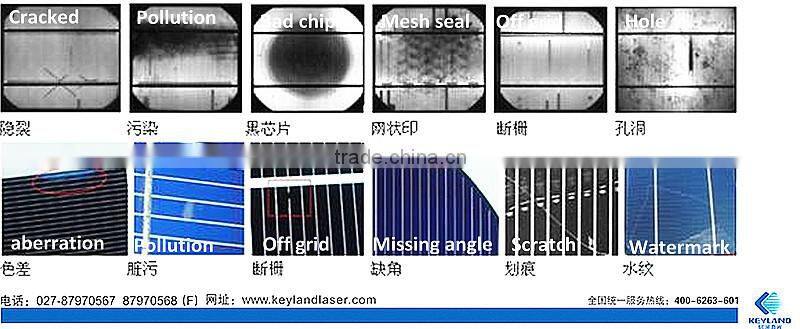

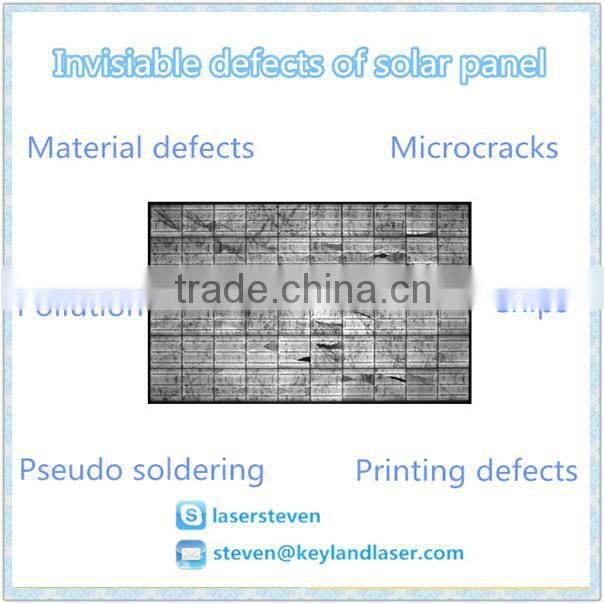

Defects | Welding spots | Microcrack | Mixed current grade | Cell processing defects | Row materials pollution | Low current EL testing(0.8A-8A) | Pseudo Soldering |
Yes/No | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Features and Benefits
- Reveals invisible defects such as microcracks, finger defects and low-current output areas in
modules
- Improves line yield by identifying defective modules prior to lamination
- Improves quality and reliability of final product
- Exceptional optical resolution in its class
- Flexible system configuration allows testing of framed or unframed modules, before or after
lamination

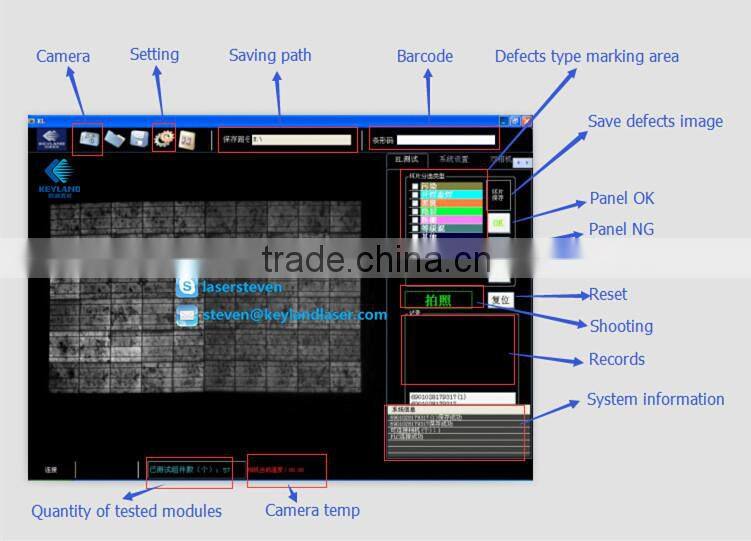

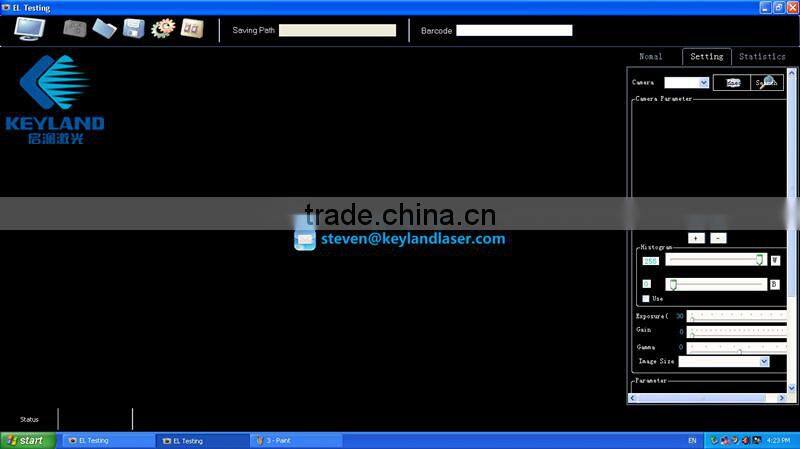

Software Functions
English interface
What is Specifications of Our Solar Module Testing Equipment?
Operation table height | 950mm |
Capture Mode | Single camera/ Dual camera optional |
Caramer type | High Performance Cooled CCD Camera with Air cooling system |
Module laying platform | Ultra toughened glass |
Max testing area | 1200*2100mm / 48"x84" |
Resolution | 8.3 Megapixels / 16 Megapixels |
Sensitivity | can detect crack width less than 0.2μm |
Exposure time | 0 ~ 9s continuously adjustable |
Image acquisition time | 1-60s adjustable |
Power supply | 220V 10A |
Configuration | 1set machine frame |
1set SONY infrared camera | |
1set Industrial-grade near-infrared optical module | |
1set Computer | |
1set User manual | |
Software functions | Barcode scanning input File name auto saved acc. to barcode Auto save defects classification easy to check |

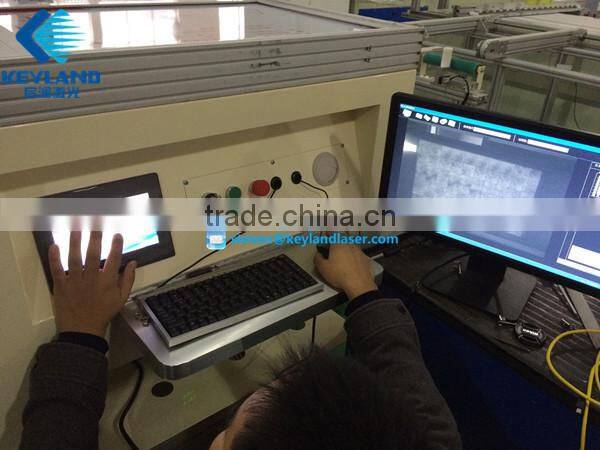

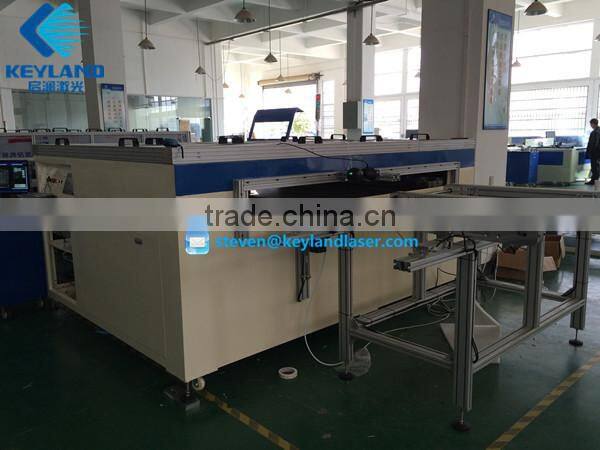

EL tester Photos

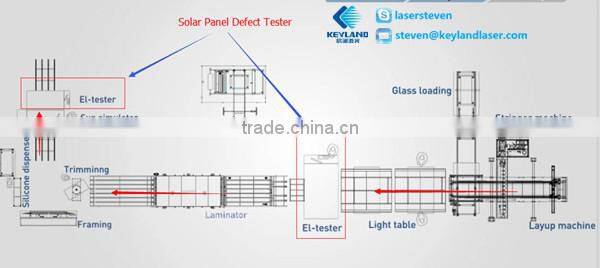

- Inline
- Offline

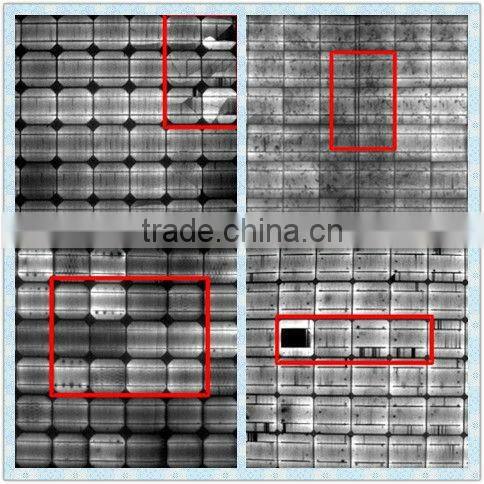

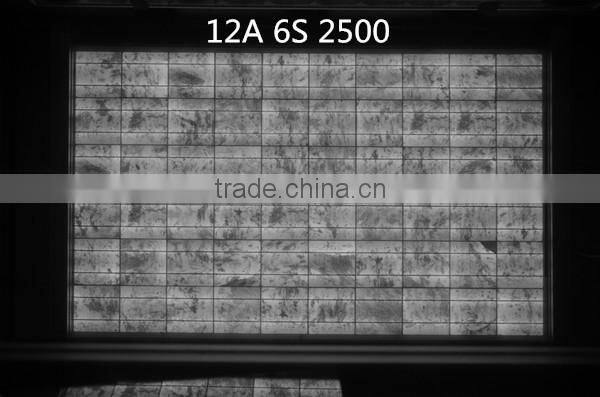

Work sample
EL tester demo video | http://youtu.be/TpCiaetuupY |
EL operating demo | http://youtu.be/Dlddi2KaEJQ |
Full automatic line | http://youtu.be/FyLiqsK0zCI |

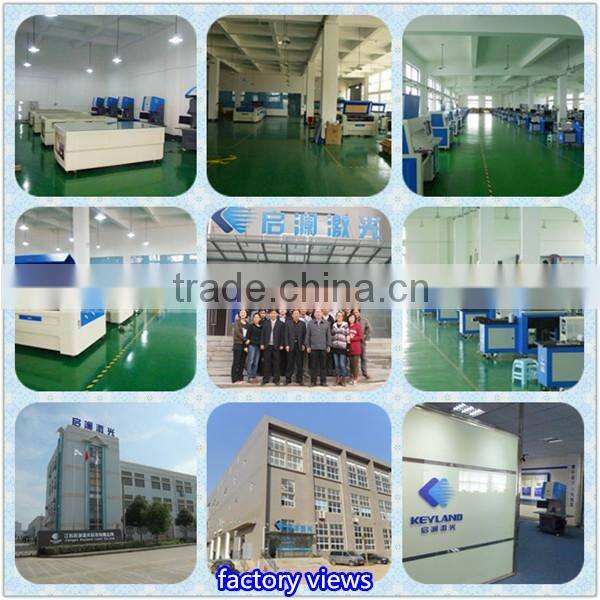

Company View
Why Buy From Us?
Doing business with KEYLAND is SAFE and BENEFICIAL.
- Alibaba Trade Assurance
- Onsite Checked by BV
- Golden Suppliers for Years
- CE, ISO, FDA approved products
- Warranty Up To 2 Years
- Full Operator Training & Support
How to Contact Us?
El Tester For Solar Module
Company Profile

Jiangsu Keyland Laser technology Co., Ltd. (Keyland laser) is a high-tech enterprise with 20 years' experience in the R&D, production and sales of laser equipment. Our company has annual production capacity of 6,000 sets of equipment. The company locates in China Optical Valley, with import and export rights. We are committed to providing the customers with comprehensive and integrated laser processing and application solutions of solar energy equipment. The main products of Keyland Laser are solar photovoltaic equipment, laser scribing-cell machine, laser scribing-film machine, laser marking machine, laser cutting machine, laser engraving machine, laser engraving and cutting machine, laser cutting flat bed and other 10 series. 100 section models are widely used in solar energy, electronics, clothing, leather, advertising, arts and crafts, automotive, motorcycle, hardware, measuring tools, cutting tools, plumbing ware, medical equipment, eyeglasses, glass craft, food, pharmaceutical, printing and packaging, furniture, decoration and etc., about 1,000 kinds of industries and fields. Keyland Laser wins the praise of domestic and overseas customers in each industry by right of the high-quality products and professional services. We have got a leading position in the domestic sales, even over more than 40 countries and regions. Our products have been sold to the United States, Germany, France, Poland, Italy, Russia, Japan, Korea, India, Iran, Singapore, Malaysia, Brazil, Sweden, Saudi Arabia, Australia, Syria and other countries and regions. Keyland Laser takes the lead in laser equipment manufacturing technology. We have over 10 years of experience in laser design & services, from software development to hardware design. System testing equipment and technical service are all completed by the professional technology personnel. Keyland Laser has set many bases of research in Beijing, Shanghai, Guangzhou and Wuhan, and also has cooperated with the domestic & foreign research institutions and colleges closely. We have 65 national patent applications and core technology achievement in this field, with international leading level. Keyland Laser is the laser expert of industrial application and your reliable business partner.no matter what industry you are engaged in, our products are always suitable for you. Beneficiary's Account: 494958655680 Bene's Banker Name: Bank of China, Chuanshu Sub-Branch, Zuzhou, Jiangsu, China
