Product Details
Place of Origin | Guangdong, China | Brand Name | ASEP | |
Model Number | 2500TL | Output Power | 1 - 200KW | |
Output Type | Single | Size | 348x506x148(Width*Height*Depth)(MM) | |
Weight | 13KG | Input Voltage | 100V~500V | |
Output Voltage | 230/180VAC~270VAC | Type | DC/AC Inverters | |
Output Frequency | 50/47Hz~52Hz | Output Current | 24A |
Product Description

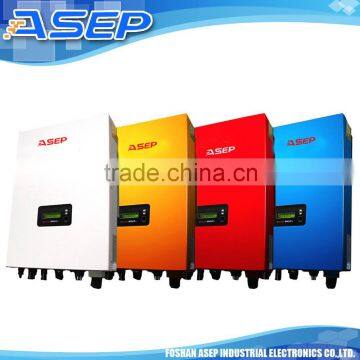

Dc to ac power inverter ac 12v power inverter 2000w
Item No. | 2000MTL | 2500MTL | 3000MTL | 3680MTL | 4200MTL | 5000MTL |
Series Name | Grid-Tie Inverter/ On Grid Inverter OGI- | |||||
Input | ||||||
Maximum Input Power | 2200W | 2700W | 3200W | 4000W | 4600W | 5400W |
Maximum Input DC Voltage | 550VDC | |||||
Working Voltage Range | 100V~500V | |||||
MMPT Voltage Range | 145V~500V | 145V~500V | 165V~500V | 150V~500V | 150V~500V | 175V~500V |
ON/OFF Voltage | 80/30 | |||||
Maximum Input DC Current | 8A | 10A | 10A | 13A | 15A | 15A |
MPPT Numbers | 2 | |||||
MPPT Connection numbers in each channel | 1 | |||||
Output | ||||||
Phases of the Power Network | Single phase | |||||
Nominal AC Output Power | 2000W | 2500W | 3000W | 3680W | 4200W | 5000W |
Maximum AC Output Power | 2000W | 2500W | 3000W | 3680W | 4200W | 5000W |
Maximum AC Output Current | 10A | 13A | 15A | 18A | 21A | 24A |
Nominal AC Output Voltage | 230/180VAC~270VAC | |||||
Nominal AC Output Frequency | 50/47Hz~52Hz | |||||
Power Factor | 0.99 | |||||
THD (Total Harmonic Distortion) | <3% | |||||
Efficency | ||||||
Maximum Efficiency | 97% | |||||
European Efficiency | 96.50% | |||||
MPPT Efficiency | 99.50% | |||||
Protection Methods | ||||||
Over-voltage Protection | √ | |||||
Detection of Impedance and insulation in DC | √ | |||||
Ground Fault Protection | √ | |||||
Utility Power Inspection | √ | |||||
Inspection of Ground Fault Current | √ | |||||
Inspection of DC Current Component | √ | |||||
Test Procedure of Islanding | AFD | |||||
General Information | ||||||
Shipping Weight | 17KG | 17KG | 18KG | 19KG | 19KG | 19KG |
Shipping Dimensions | 348x506x148(Width*Height*Depth)(MM) | |||||
Operating Temperature | -20℃~+60℃ | |||||
IP Protection Level | Compline with IEC602529 to IP65 | |||||
Isolation type | No Transformer | |||||
Cooling Method | Natural Cooling | |||||
Noise Level | <35db | |||||
Display | LCD | |||||
Communication Interface | RS232,Wifi is avalaible | |||||
Regulatory Certificate | AS4777,G83,G59,EN61000,IEC-62109-1,VDE0126,EN50438 | |||||
Standard Warranty | 5 years |
Our product's Features
- Non-transformer H4C/H6C full bridge topology structure
- More logical circuit arrangement, stricter production control and simpler structure design
- modularized circuit, facilitating the assembly the maintenance process;
- MPPT with double channel, making it possible for separation input, parallel input and single channel mode;
- Encased in SUS430 with smart, lightweight outlook design; waterproof function is bettered;
- Bypass switch, enhancing the continuity and reliability of power supply ;
- Via WIFI, the amount of generated electricity can be easily checked and the system can be upgraded online
- CE approval, in accordance with Australian new standard issued in 2013.06
- Protection against islanding, short circuit, over-load and over-heat
- 1 years of warranty
After-sales service
A. Remote Technical Support (those with WIFI module installed)
With WIFI module installed, we can help you monitor the performance of your machine.
B. Free training and Consultancy
Apart from the user manual, free personnel training is offered at our factory.
C. 2% Back-up material for main parts is provided
For order more than 100 pcs and above, we can provide 2% back-up for key parts of the machine.
D.One Year Warranty
If you have any questions, please feel free to contact us.
